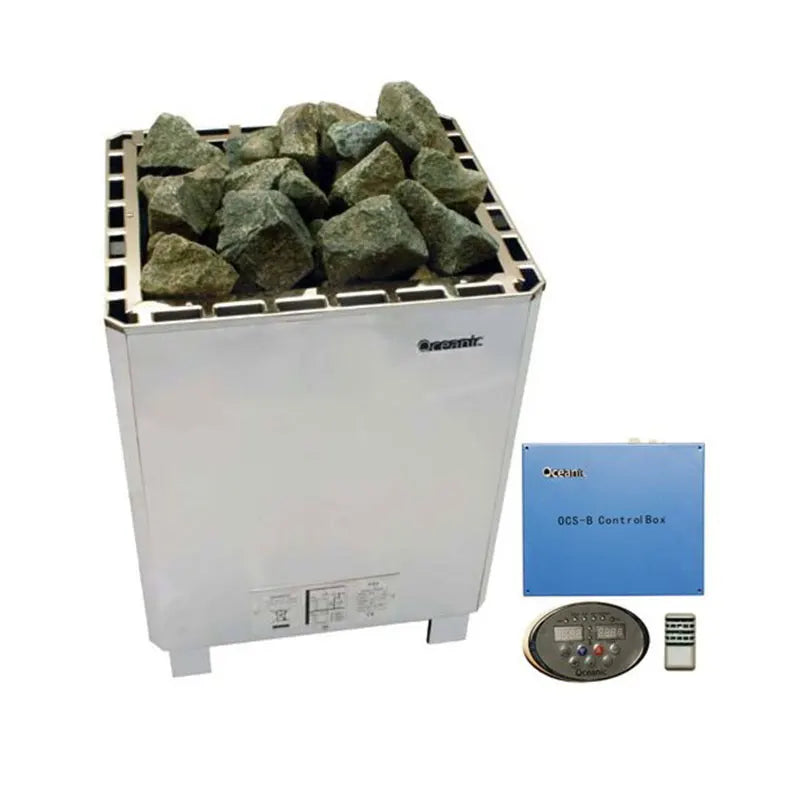

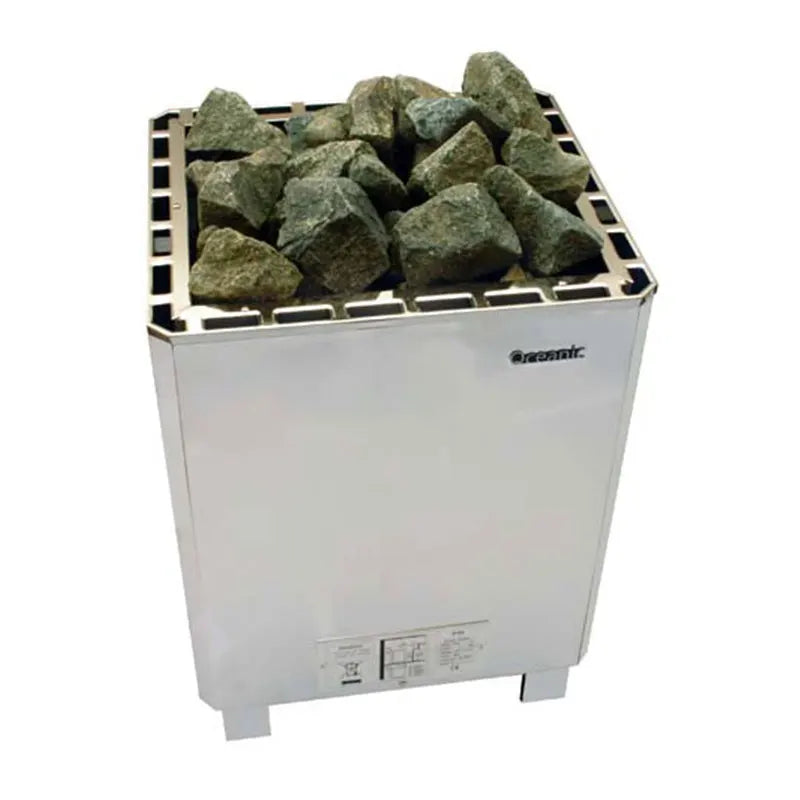

20.1kw Free standing electric sauna heater / sauna stove / sauna oven for sauna rooms
20.1kw Free standing electric sauna heater / sauna stove / sauna oven for sauna rooms
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: OCEANIC
Feature: Computer Control Panel
Origin: Mainland China
Number of Users: other
Certification: CE
Model Number: OCS210B
Type: Sauna Rooms
Main Material: other
Function: Dry Steam
Product Name: Sauna Heater
Power: 20.1kw
Type: Free Standing Heater
Voltage: 400V
Sauna Room Volume: 18-32 m3
Warranty: 1 year
Certificate: CE, RoHS
Heat element quantity: 9 pcs
20.1kw Free standing electric sauna heater / sauna stove / sauna oven for sauna rooms
Why Oceanic Sauna Heater ?
- All Sauna Heater passed the real CE test by Nemko in UK andRoHS test by Hermes in Germany
- Sequential heatingto save energy and prolong the working life of the elements
- Double safety protection cut-off for both sauna room and sauna heater as achieving a high temperature
- Door interlockis a new EU standard for ensuring safety. If the sauna cabin door is opened, the timing will stop and the sauna heater will not restart again until it is reset

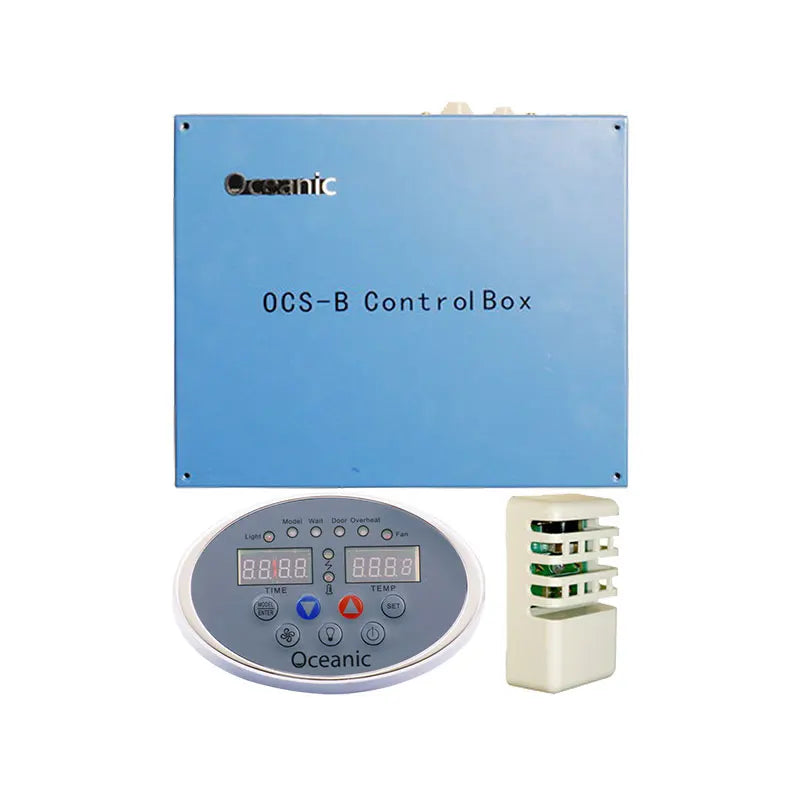

- Control panel + control box, high voltage and low voltage are separately
- Diagnostics-8 LEDs to show 12 working stages
- Every Oceanic Sauna heater passed 5 strict test steps before leave factory
- We're in sauna and steam field more than 18 years with specialized R&D department. OEM & ODM is accepted.
Specifications (If need other models, please contact with us before placing the order)
9kw, 10kw, 12kw, 15kw, 17kw 18kw, 20kw electric sauna heater
Heatermodel |
InputKW |
Heating element n×KW |
Sauna room volume min max m3 |
VoltageV |
PhaseP |
Connecting cable n×mm2 |
Arrangement stones kg |
0CS090B |
9.0 |
6×1.5 (H1-h6) |
9 13 |
400VAC |
3N |
Terminal1: 5×1.5 Terminal2: 5×1.5 |
40~50 |
0CS105B |
10.5 |
3×1.5 (H1,H3,H5) 3×2.0 (H2,H4,H6) |
9 15 |
400VAC |
3N |
Terminal1: 5×1.5 Terminal2: 5×1.5 |
40~50 |
0CS120B |
12.0 |
6×2.0 (H1-H6) |
10 18 |
400VAC |
3N |
Terminal1: 5×2.5 Terminal2: 5×2.5 |
40~50 |
0CS150B |
14.1 |
3×2.0 (H1,H3,H5) 3×2.7 (H2,H4,H6) |
13 23 |
400VAC |
3N |
Terminal1: 5×2.5 Terminal2: 5×2.5 |
60~70 |
0CS170B |
16.2 |
6×2.7 (H1-H6) |
17 29 |
400VAC |
3N |
Terminal1: 5×2.5 Terminal2: 5×2.5 |
60~70 |
OCS180B |
18.0 |
9×2.0 (H1-H9) |
18 32 |
400VAC |
3N |
Terminal1: 5×4.0 Terminal2: 5×2.5 |
80~90 |
OCS210B |
20.1 |
6×2.0 (H1,H4,H7) (H3,H6,H9) 3×2.7 (H2,H5,H8) |
20 34 |
400VAC |
3N |
Terminal1: 5×4.0 Terminal2: 5×2.5 |
80~90 |
Detailed image

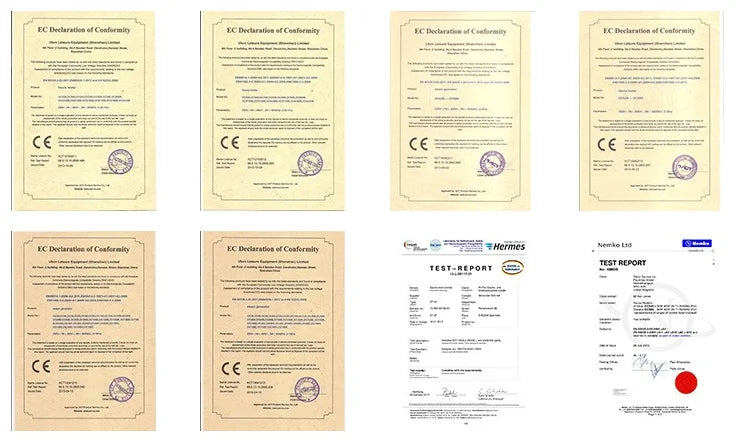

Certifications
Company Informations

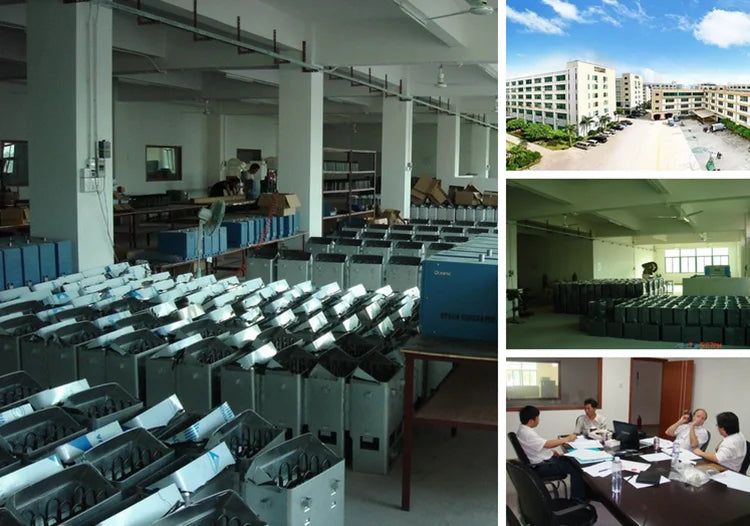

Ukcn Leisure Equipment (Shenzhen) Limited has 8 years experience in the line of sauna and steam products manufacturing and marketing in many markets. All of our electrical products are reliable and innovative product which has tested by NEMKO in the UK. Our products are popular in many countries, and we have sole agents in more than 6 countries including UK, France, Spain, Singapore and so on. We also OEM for “Aqua”, German“Fintec” and some other famous brand.
