200mm 300mm 400mm Standard Test Lab Sieve Shaker
200mm 300mm 400mm Standard Test Lab Sieve Shaker
Regular price
£1,727.17 GBP
Regular price
£0.00 GBP
Sale price
£1,727.17 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Product Display
Automatic analysis lab test sieve shaker is a precision instrument, it's widely used in laboratory and quality inspection department and other test department for particle analysis on size distribution, impurity level, solid content and liquid content, and so on. Laboratory test sieve shaker can ensure accuracy, install time relay, and setting up sieving time, reducing testing error to minimum level, ensure consistency of sample analysis data, and make accurate judgment of product quality.
Product Description
Advantages
1.The machine has the function of re-crashing the agglomeration materials and is safe and reliable for a long time operation 2.The screen machine can be placed a maximum eight layers tests sieves (including the bottom sieve), can separate the material into 2 to 7 grade at the same time 3.The products can be automatic shut down according to the electric time controller and accurate judgement of the online product quality 4.These machines are suitable for both wet and dry sieving, and meet all ergonomic requirements for a modern laboratory. 5.Free adjustment of all process parameters (time, amplitude).
Using Scope
1> High acid and alkali resistance 2> High temperature resistance 3> Non-magnetic and corrosion resistance 4> Uniform aperture size 5> Long time use 6> surface of testing sieve is exact, glazed and wearable 7> Easy to use and transport 8> Small orders accepted
Technical Parameter
|
Items
|
Name
|
Unit
|
Data
|
|
1
|
Layers
|
Layer
|
1~8
|
|
2
|
Diameter
|
Mm
|
Φ100 Φ200 Φ300
|
|
3
|
Granularity
|
Mm
|
0.038-3
|
|
4
|
Noise
|
DB
|
≤50
|
|
5
|
Feeding capacity (once)
|
G
|
≤200g/ml
|
|
6
|
Amplitude
|
Mm
|
≤5
|
|
7
|
Voltage
|
V
|
220
|
|
8
|
Speed
|
R/min
|
1420
|
|
9
|
Power
|
Kw
|
0.125
|
|
10
|
Overall dimension
|
Mm
|
450×415×800
|
|
11
|
Weight
|
Kg
|
45
|

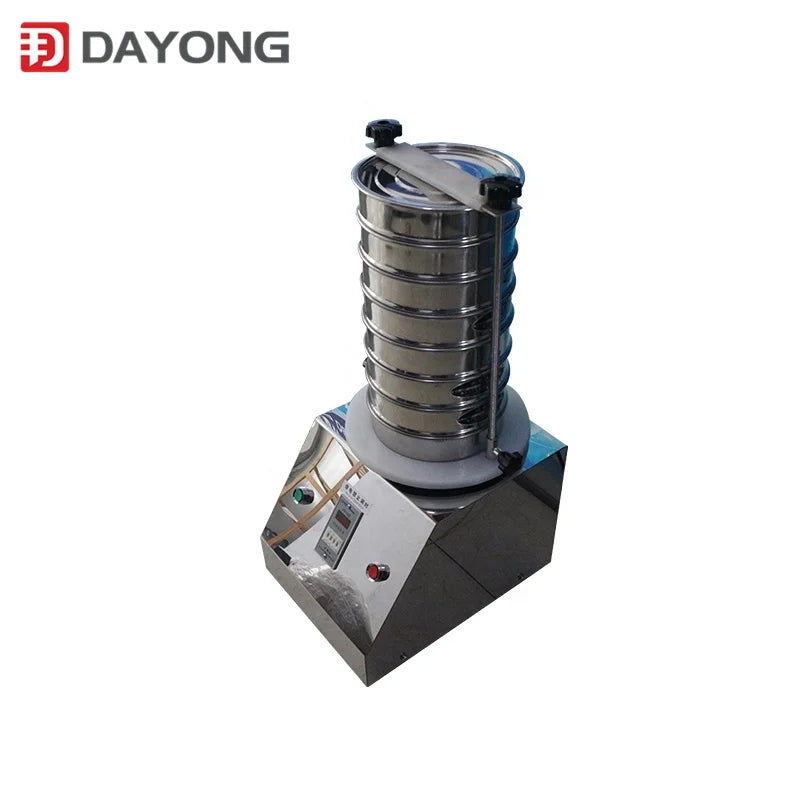

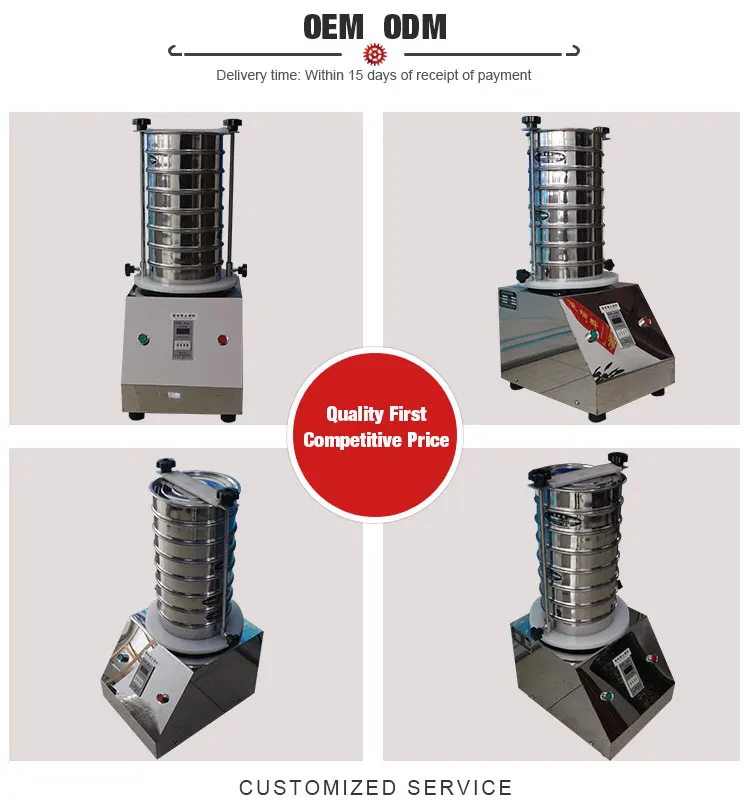

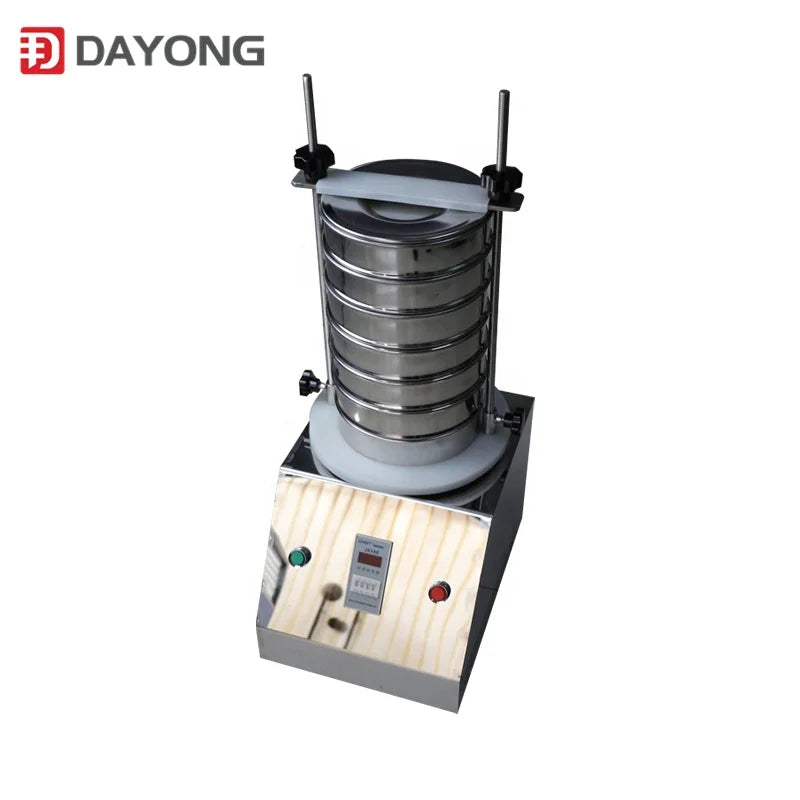

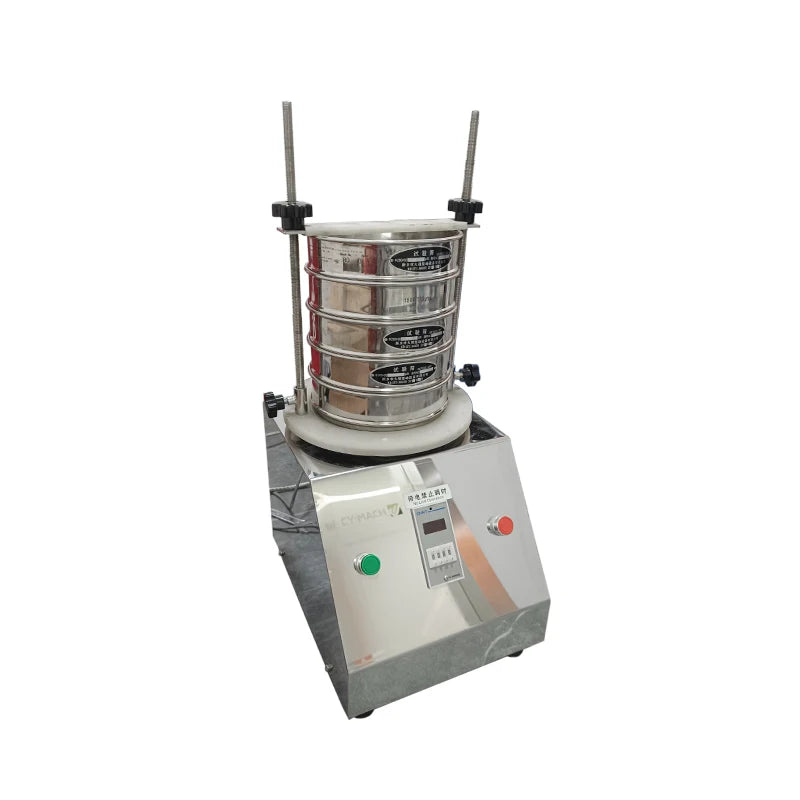

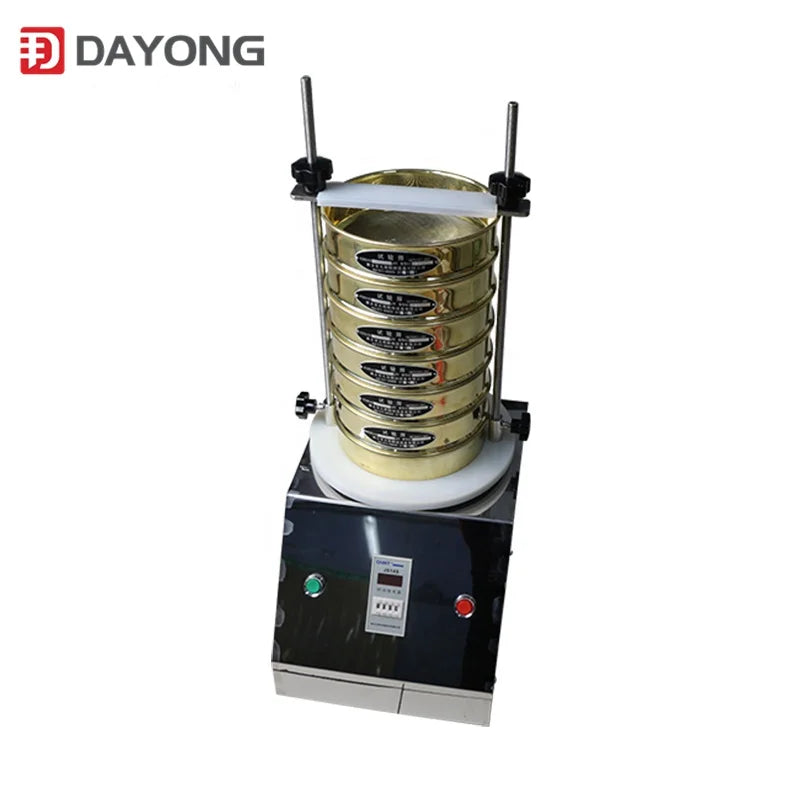

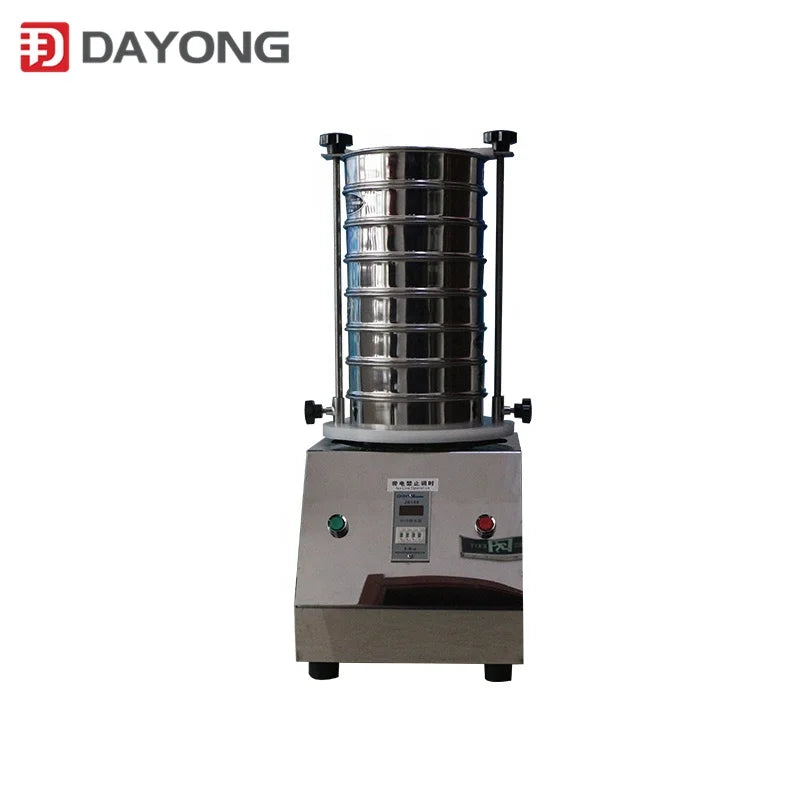

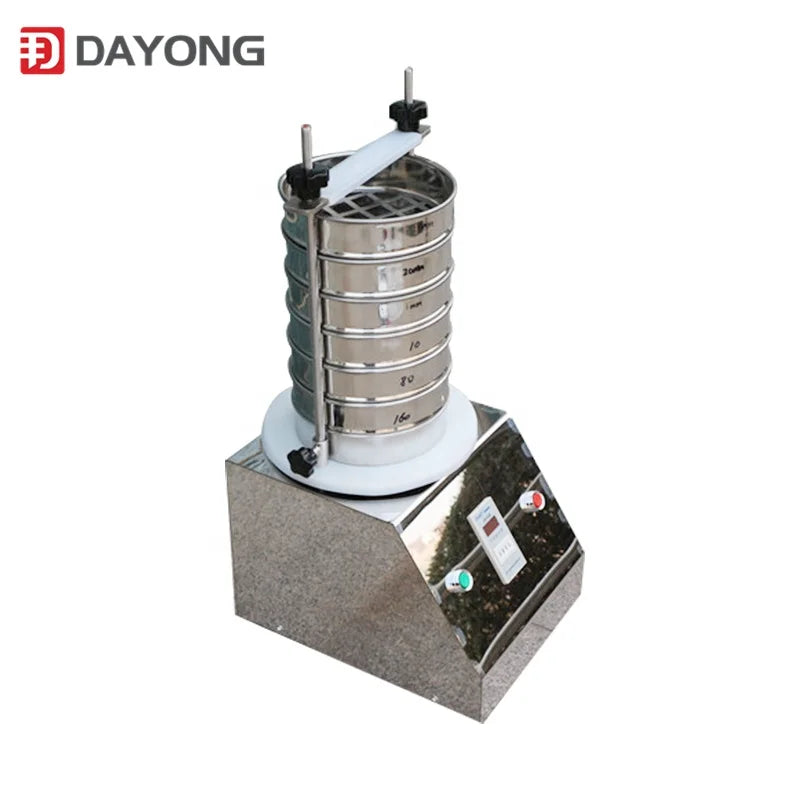

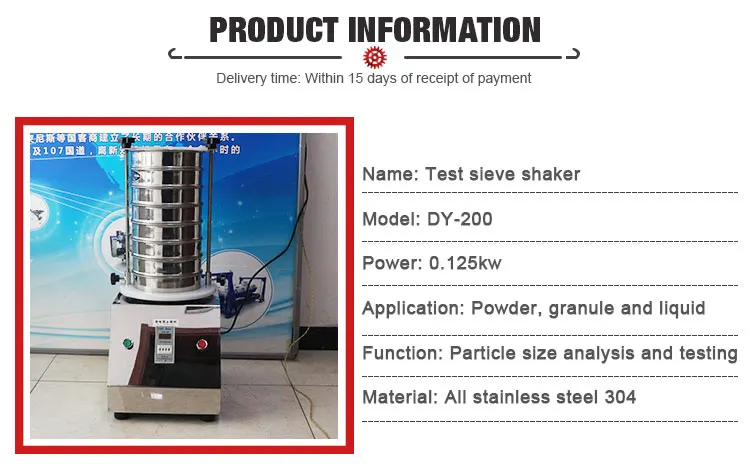

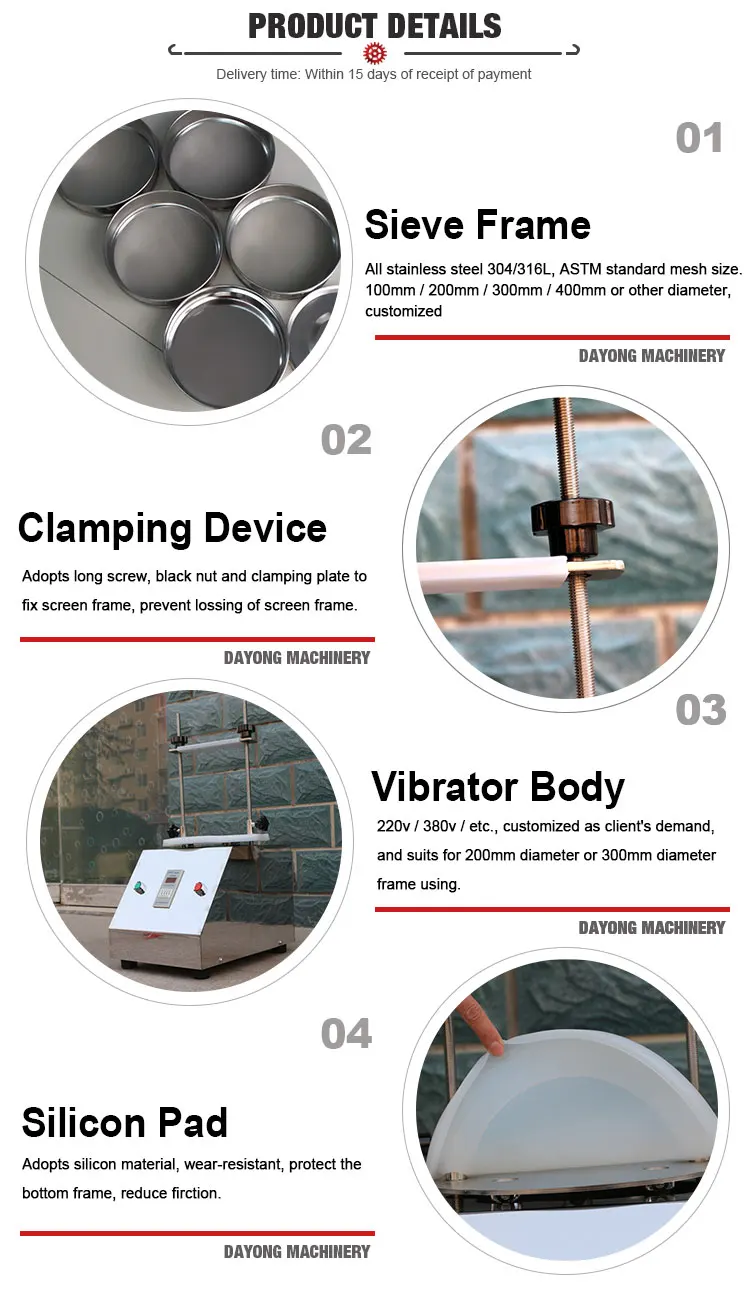

Details Images
