50Pcs High Pressure 25-80bar Fog Misting Nozzle 0.1-0.8mm Atomizer Greenhouse Humidify Water Spray Patio Mist System
50Pcs High Pressure 25-80bar Fog Misting Nozzle 0.1-0.8mm Atomizer Greenhouse Humidify Water Spray Patio Mist System
Couldn't load pickup availability
SPECIFICATIONS
Product Name: Misting nozzle
Thread: 3/16''
Flowing Rate: 0.03-2L/Min
Nozzle Size: 0.1mm-0.8mm
Working pressure: 25-80 Bar
Application: Cooling and Humidification
Brand Name: ENTENCO
Model Number: ETK-NN
Type: Sprayers
Material: Metal
Metal Type: Brass
Sprayer Type: Pump
Origin: Mainland China
Choice: yes
semi_Choice: yes
Packing
50 pcs
Specifications:

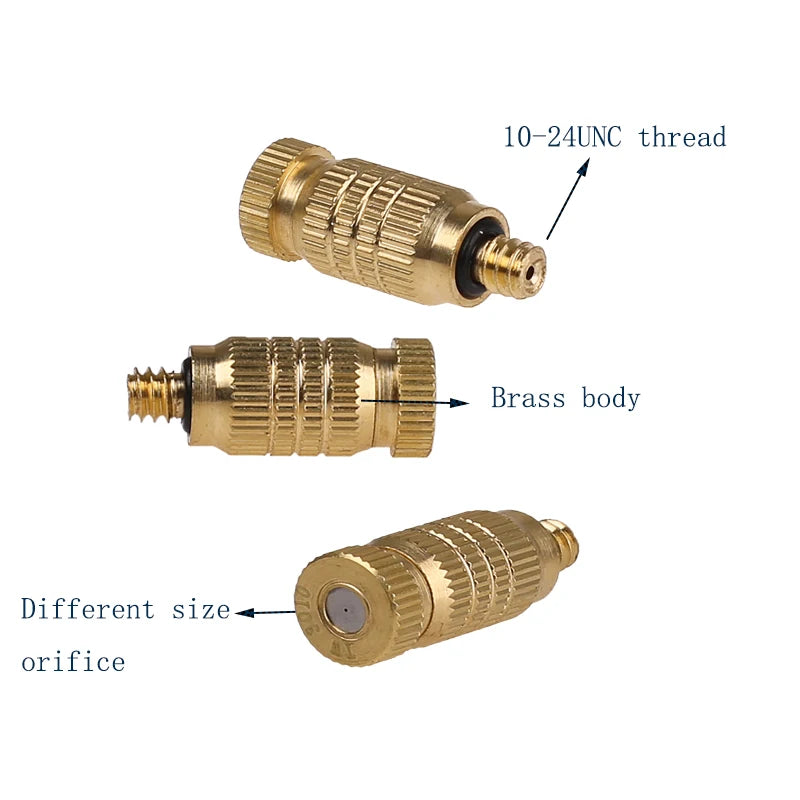

Product Name: 3/16" Male thread high pressure misting nozzles
Nozzles Material: Brass body with stainless steel orifice

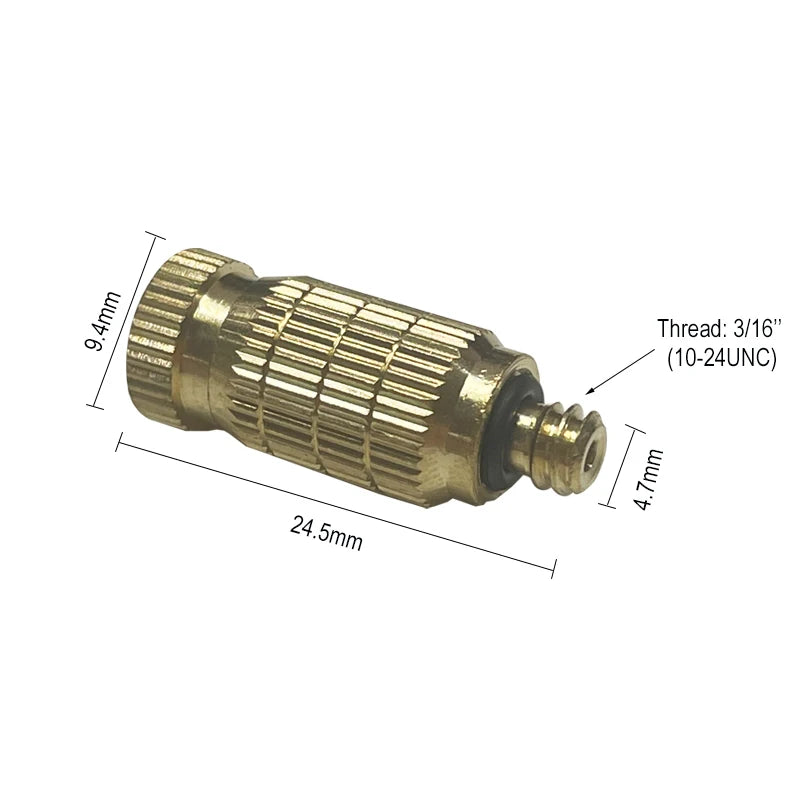

Nozzles Connection size: 10-24UNC (3/16" Thread)
Nozzles Orifice: 0.1mm,0.15mm,0.2mm,0.3mm,0.4mm,0.5mm
Pressure:10~20 bar
Purpose:Humidification, Remove Dust, Cooling, landscaping.
Feature:
0.1mm nozzle: 0.03L/min
0.15mm nozzle: 0.04L/min
0.2mm nozzle: 0.05L/min
0.3mm nozzle: 0.075L/min
0.4mm nozzle: 0.15L/min
0.5mm nozzle: 0.19L/min
This anti-drop misting nozzle is usually made of brass,it contains a anti-drop device, the liquid is flowing at a high speed under pressure of 10-20 bar and forming a centrifugal vortex while passing the vane, then come out from the nozzle in a fine mist hollow spraying.
This nozzle is well made and the cost is saved by 10 times compared with air humidification.
Notice:
The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
