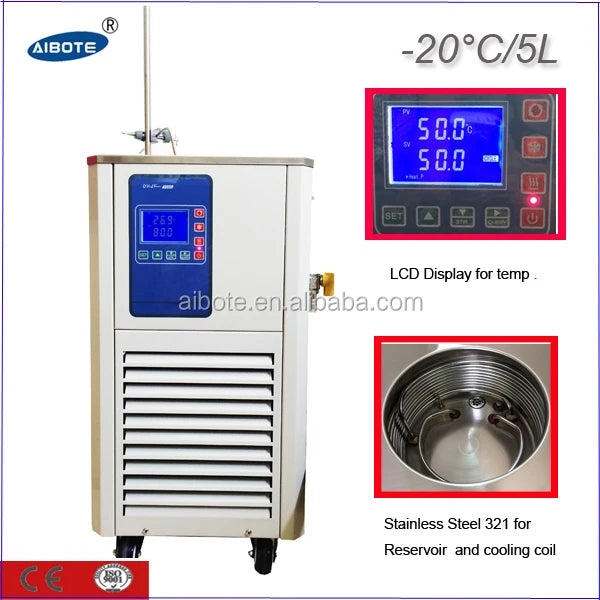

5L,-20 degree LCD Digital portable cooling refrigerated water bath circulating chiller

5L,-20 degree LCD Digital portable cooling refrigerated water bath circulating chiller

5L,-20 degree LCD Digital portable cooling water bath circulating chiller

Model :  ABTDLSB5/-20

HS :8514400090



AIBOTE general purpose Refrigerated / heat Circulators Model ABTDLSB/ABTDHJF  series is ideal for

internal and external temperature control when heating and/or cooling are required. This compact,

space-saving design offers consistent system performance and easy operation at an unbeatable low price.



This unit can be utilized for a variety of end-user and OEM applications,including electron microscopes, general laboratory apparatus and cooling, water-jacketed incubators, rotary evaporators, electrophoresis , spectrophotometers, enzyme and protein assays, laser cooling and more.



Main features





1)The microprocessor-based PID controller increase heat/cool responsiveness to ensure constant temperature.

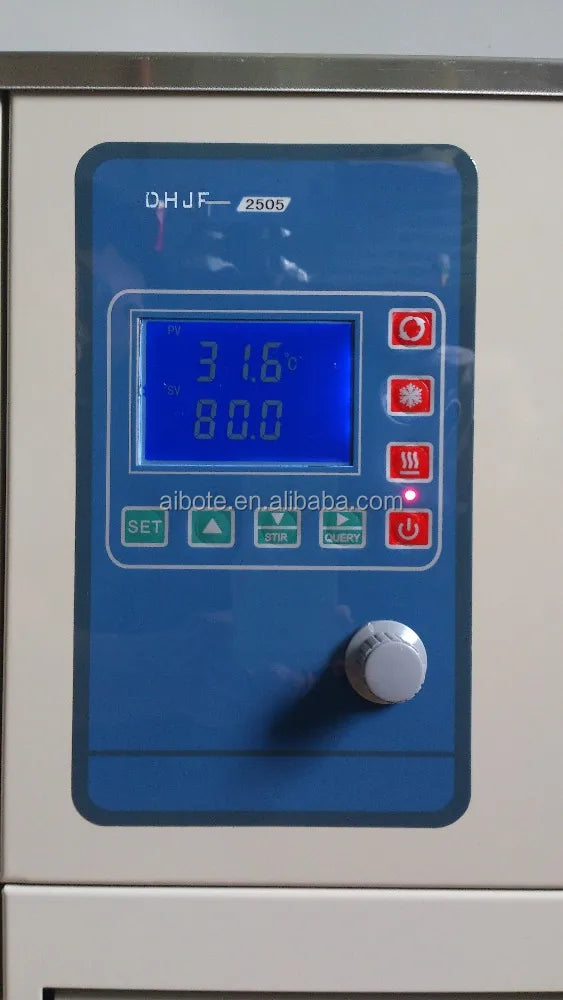

2)The unique LCD display panel and environmental control system features part-load sound levels below

that of conventional speech at a distance of two meters

.

3)Environmental technology also optimize compressor and evaporator performance, reducing overall energy consumption and prolonging compressor life.



4)QDC fittings and stainless steel reservoir facilitate user-friendly operation and simple maintenance.

The vinyl feet ensure stable placement on your benchtop.



5) Used famous compressor Brand--Brazil Embraco Aspera hermetic compressors



TECHNICAL SPECIFICATION



Model			ABTDLSB 5/-20
Volume (L)			5
Lowest Temp (°)			-20
Compressor Brand			Embraco Aspera(Original in Brazil)
Working Condition	Temperature  range (°)		-20 ˜ 20
	Envirnmental Temperature (°)		≤ 25
	Relative Humidity(%)		≤ 60
	Power supply		AC220V±10%,50/60Hz, AC110v,± 10%,60Hz.
	Temperature  Control	Temp Display	LCD Digital Display
		Temp Accuracy (°)	± 2
		Thermocouple Type	PT100
	Meter Adjustment Range		± 50
	Safety protection		Delay Time ,Overcurrent, overheating
	Cooling Capacity (w)	10°	1150
		0°	880
		-10°	600
		-20°	320
	Cooling Unit	power(w)	495
		Current(A)	2.25
		Refrigerants	R22
	Circulating Pump	Power (w)	100
		Flow(L/ MIN )	12
		Lift (m)	5 –7
Outer Loop interfaces			1/2″ stainless steel valves
Reservoir		Dia(mm)	¢255 x 130
		Material	1 Cr18Ni9Ti.
Machine size (mm)			478 x 328 x 635mm
Net Weight ( Kg)			45
Standard Outfits		Vacuum Insulation Tube	4m
		Technical Documents	1pc

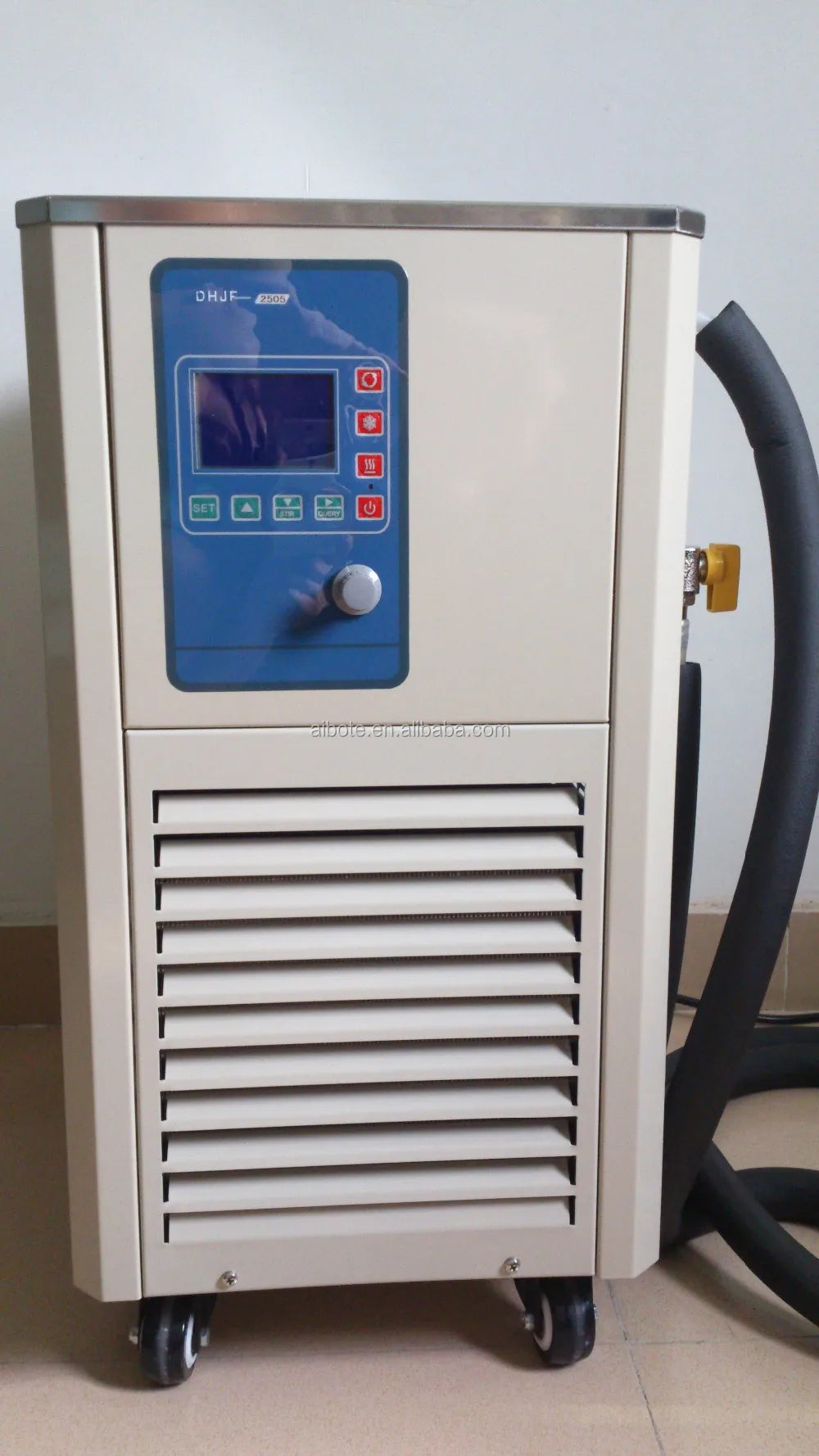

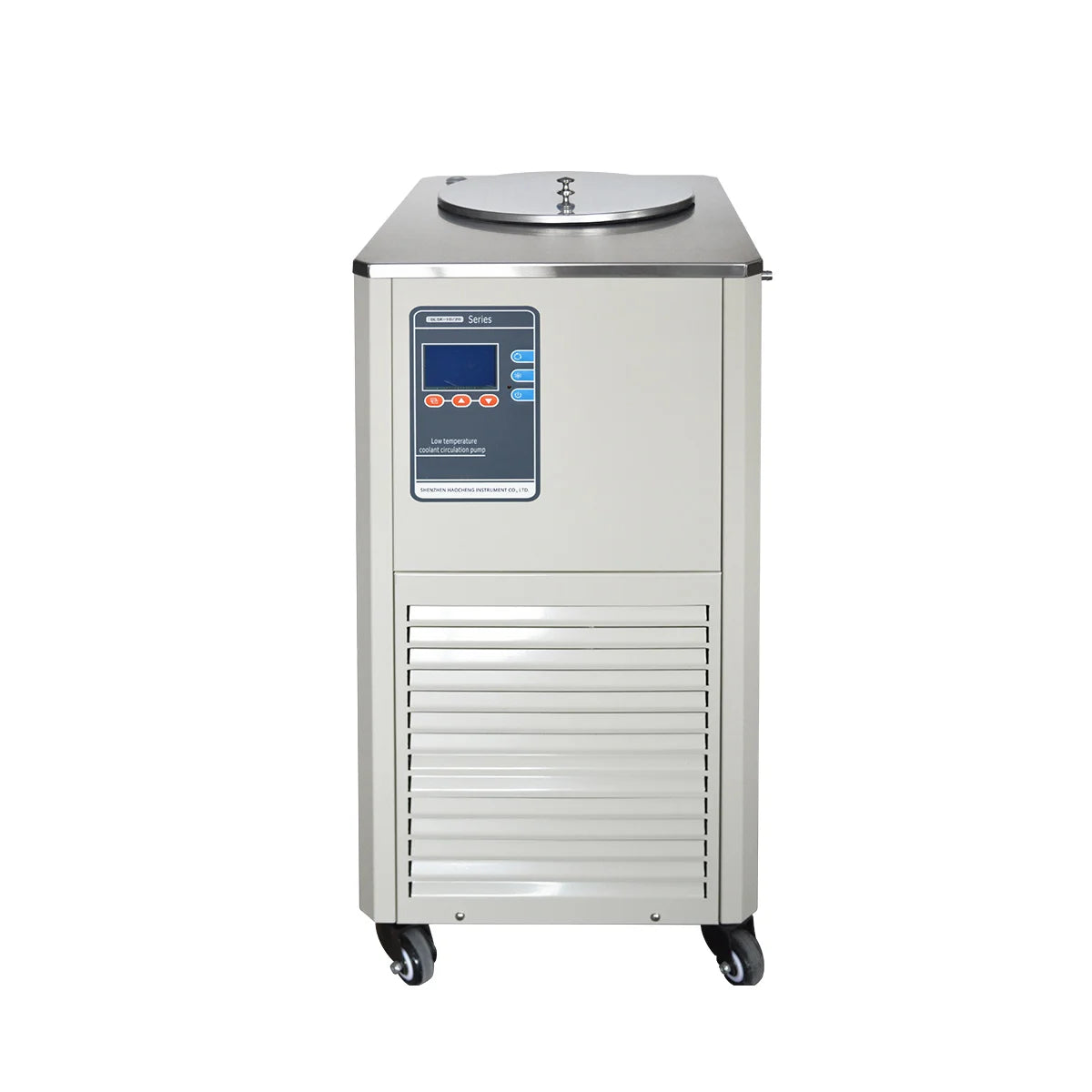

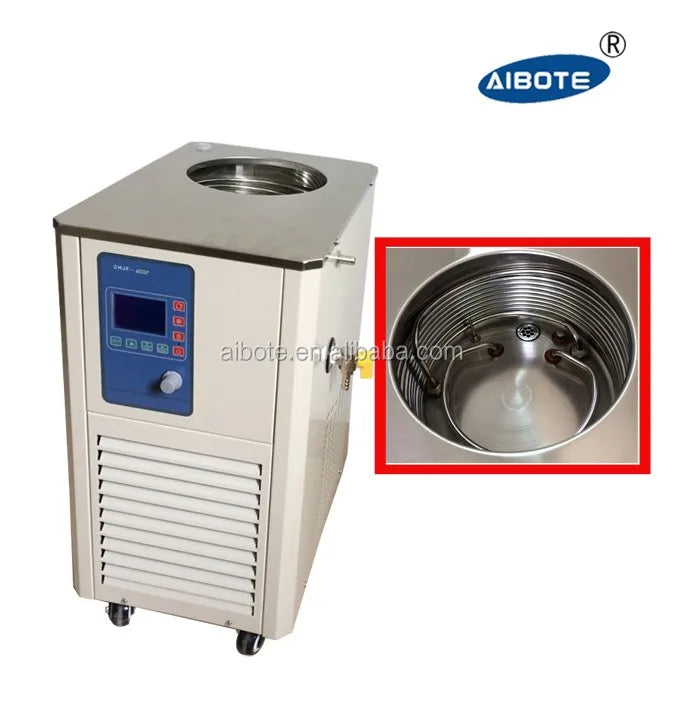

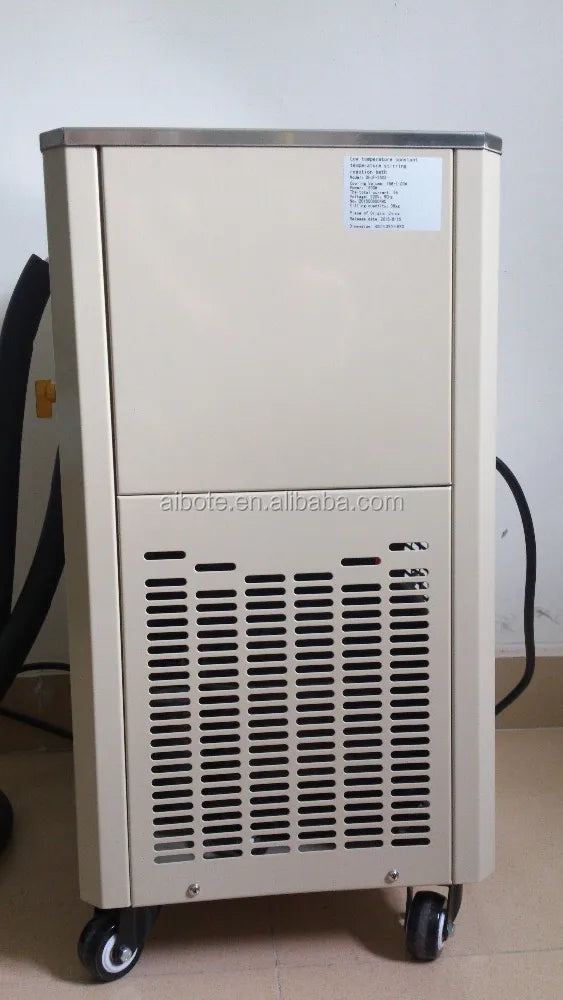

MORE PHOTOS FOR THIS MODEL







STANDARD OUTFITS FOR EACH UNIT





ABOUT US

FRQ



1 Are you a factory or trading company ?



A : We are a factory



2 .Where is your company location ? How can i  visit there ?



A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !



3.What the material  of your products ?



A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests



4. How can i  get some  sample ?





A. We are honored to offer sample for your evaluation
