ABB Easy to Operation Powder Mixing Machine Organic Fertilizer Horizontal Mixer

Product Description

ABB Easy to Operation Powder Mixing Machine Organic Fertilizer Horizontal Mixer

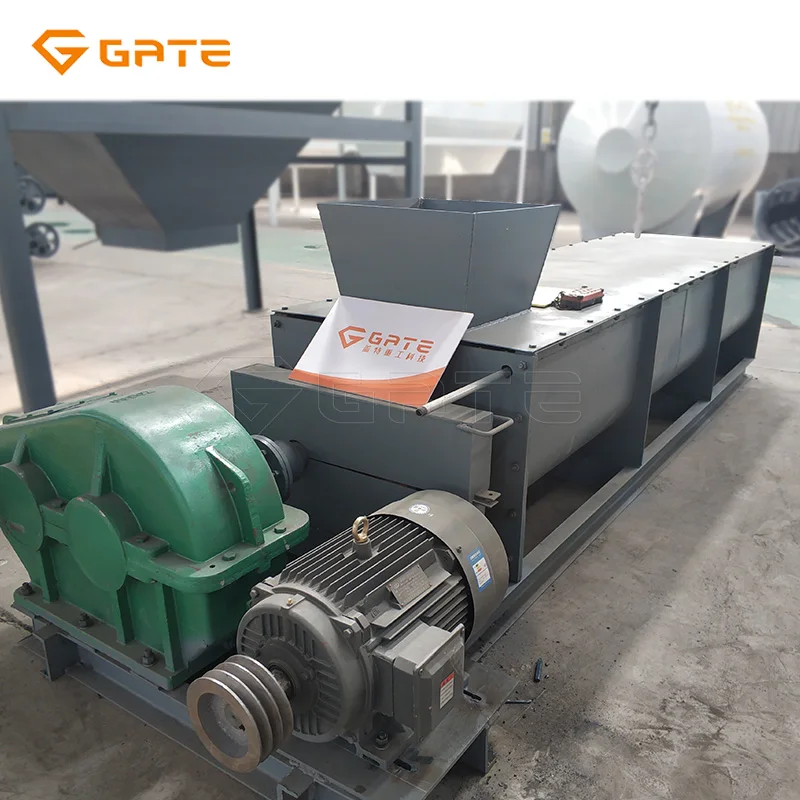

1).The double paddle mixer is also named double spiral mixer, it is a new type of blending machine for compost, manure,concentrated fertilizer,additive premix,feed stuff,fodder, etc.
2). In order to improve the mixing uniformity; we use new rotor structure, the rotor and mixing chamber are so close to the minimum gap which can be adjusted to zero mm.
3). The double paddle mixer can reduce the material residues; with oil added channels inside, the overall structure is more reasonable with beautiful appearance, easy to operate.

Operation steps of double paddle mixer
When the dry powdery material is fed into the tank by the feeding nozzle, then the power transmission mechanism drives the spiral spindle rotation of the multi-group blades. By driving the passive helical shaft and the main shaft of the meshing transmission gear, the material is stirred and pushed to the tank and the wet section. After the material is pushed into the humidification section, the humidifier automatically sprays the material, and then the mixing section is fully stirred. When the material reaches the controllable humidity, it is removed from the outlet and enters the next process.

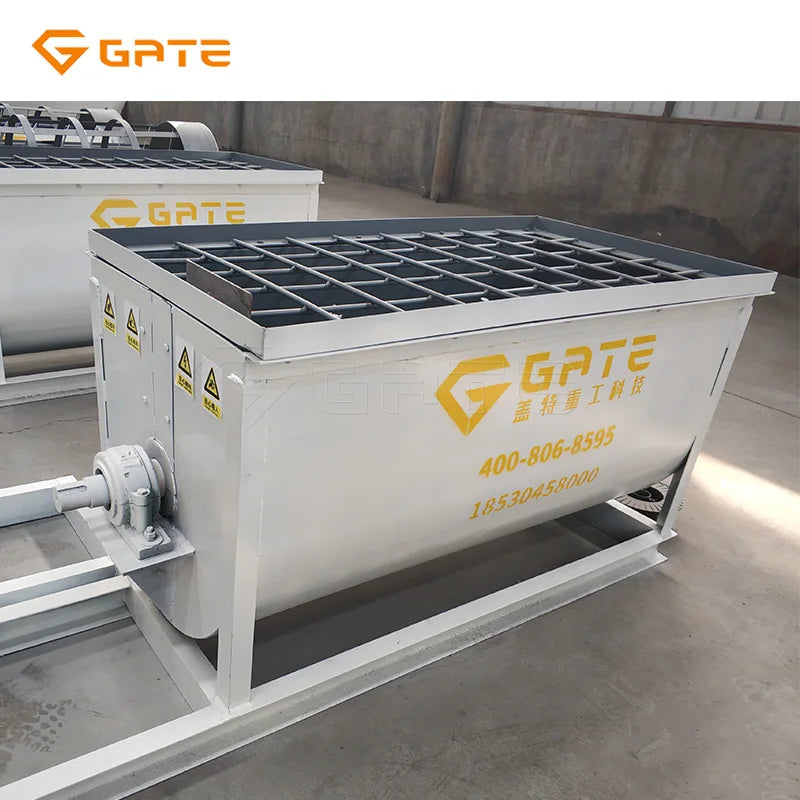

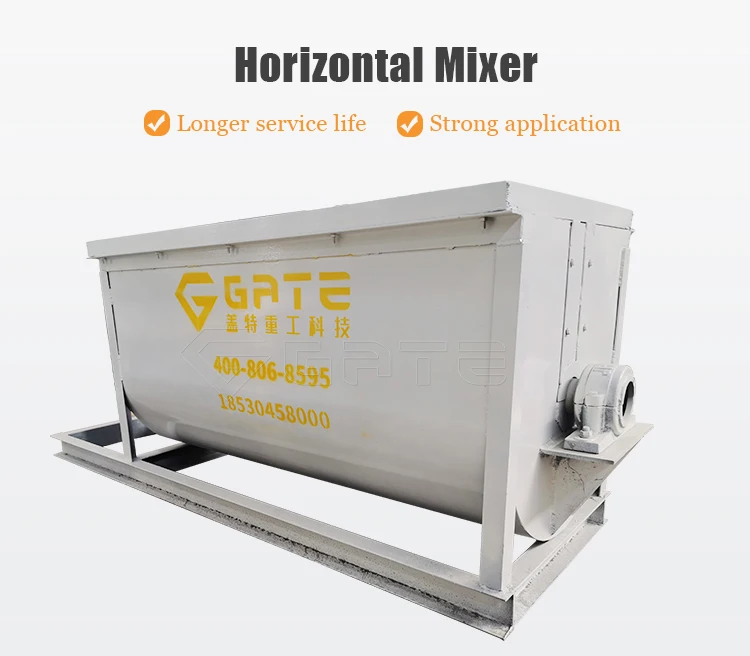

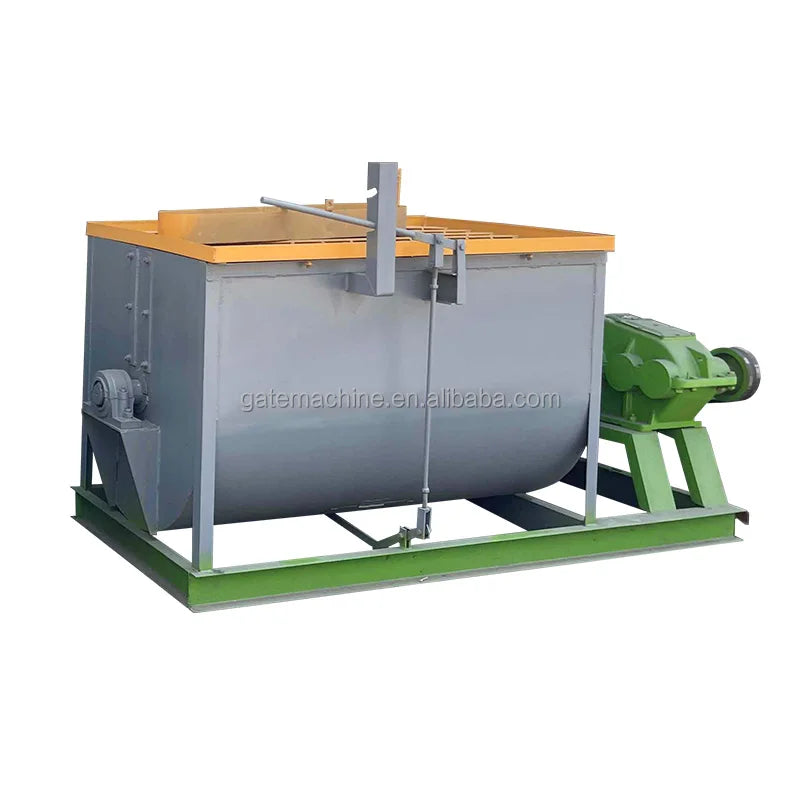

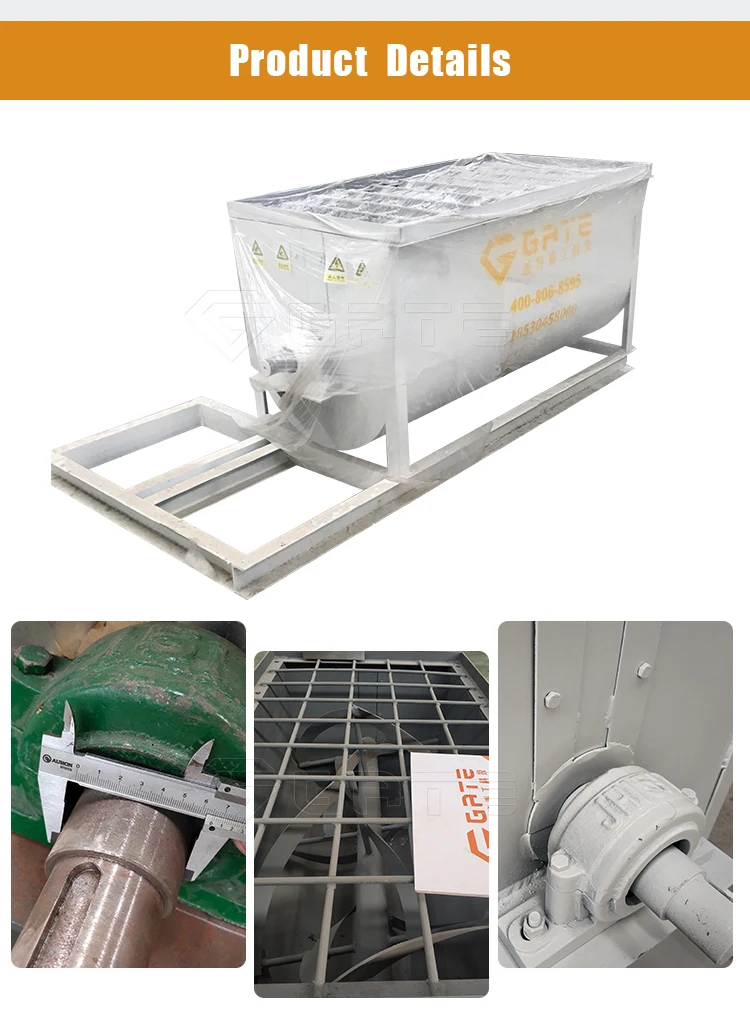

Horizontal fertilizer mixer is also named ribbon mixer, it is mainly used in chemical metallurgy, mining, building materials and other industries.

Advantages of horizontal ribbon mixer:

High stirring efficiency, small floor space. The spiral blade adopts special high – wear alloy.
The pan mixer adopts the reducer transmission; the rotation is stable, and the noise is low.
Feeding from top and discharging from bottom, which is reasonable structure.
The joint surfaces are tightly sealed and run smoothly.



Technical Specifications of horizontal mixer ribbon mixer

Model	WJ-7015	WJ-9015	WJ-1530
capacity	2-3 tph	3-5 tph	10-15 tph
Motor Power (kw)	7.5	11	22
Stirring Chamber Thickness (mm)	5	5	10
Stirring speed (r/min)	46	39	21
Dimension (mm)	2350*1000*1000	2350*1200*1000	3950*1720*2100



Technical Specifications of double paddle mixer

Model	MSSJ-8030	MSSJ-1050
Power (kw)	11	22
Stirring shaft outer diameter (mm)	420	650
Reducer Model	ZQ350-31.5	ZQ350-31.5
Stirring Speed (r/min)	35	35
Dimension (mm)	3700*800*750	6200*1300*1200





Rotary drum mixer machine adopts the operation method  of feeding in positive rotation and discharging in reverse rotation, and the material is mixed and exported through special internal spiral mechanism and unique three-dimensional structure. The equipment has novel design and strong practicability; its feeding system does not store the material, and the mixing system is with high performance; electronic controlling system, with manual, automatic and compound settings, has the characteristics that the similar products do not have. The equipment is characterized by low price, small floor space, large output and even stirring, etc.

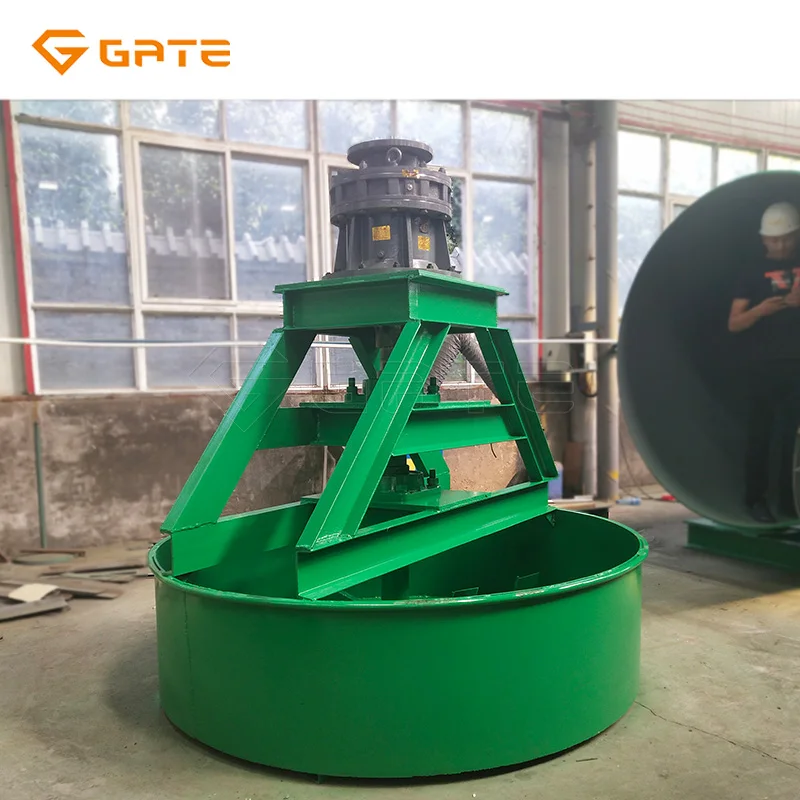

The vertical disc fertilizer mixer is a new kind of equipment which is improved on the basis of the original mixer. It is mainly used in organic fertilizer, compound fertilizer and power plant dust collector, which can also be used in chemical metallurgy, mining, building materials and other industries.

Advantages of disc type vertical mixer:

1) High stirring efficiency, small floor space. The spiral blade adopts special high – wear alloy.
The vertical disc fertilizer mixer adopts the reducer transmission; the rotation is stable, and the noise is low.
2) Feeding from top and discharging from bottom, which is reasonable structure.
The joint surfaces are tightly sealed and run smoothly.
