if solar panel is supplying direct power at X%
battery will be at (100-X)%
* there is an inbuilt controller inside the junction box to take care of the power supplies between solar panel & battery
- you don't need to do any manual shifting operation
- battery serves as the backup energy, its scale is small-to-medium, of high cost-effectiveness, you don't need to worry about unnecessarily over expenditure
EnglishCaliGenetics.co.uk

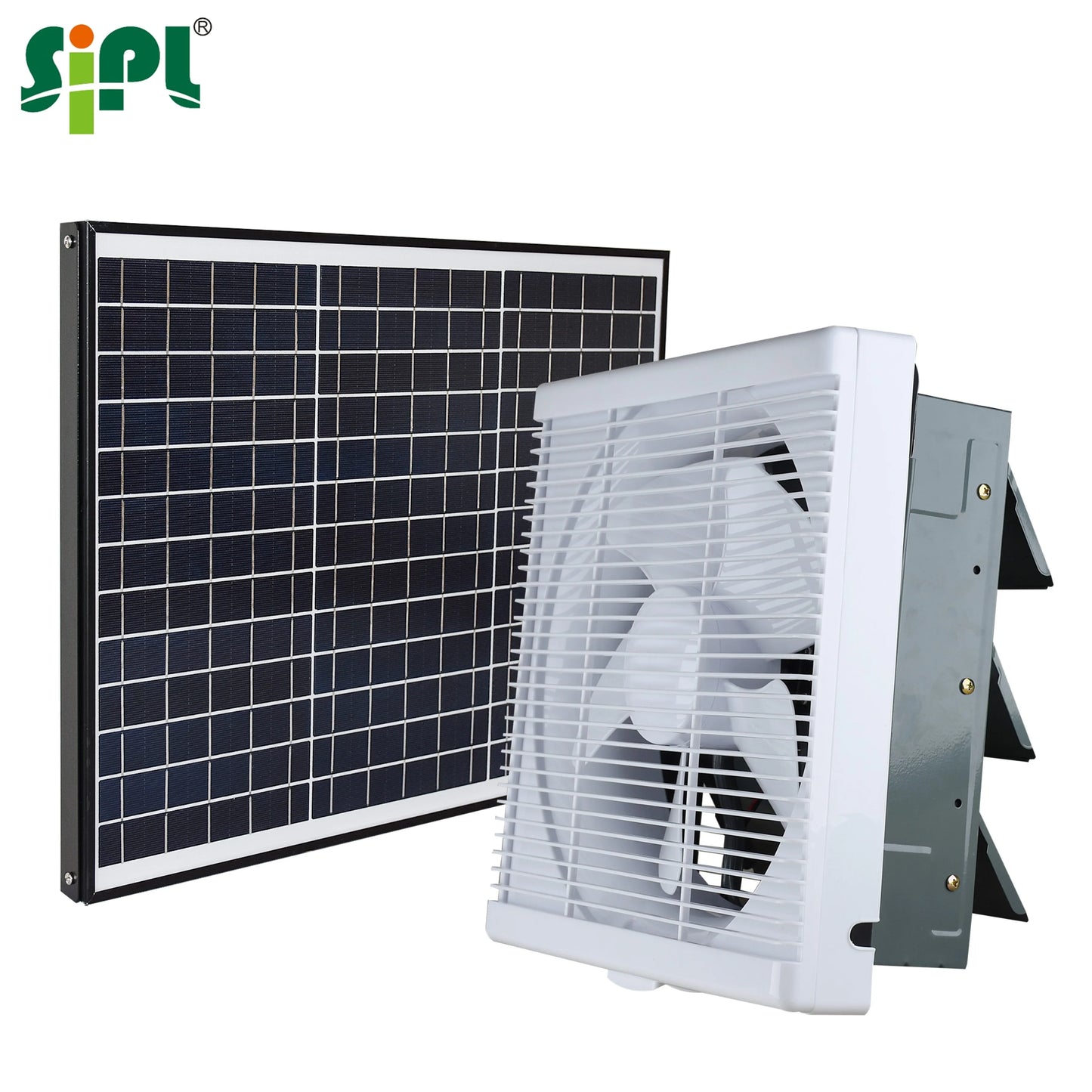

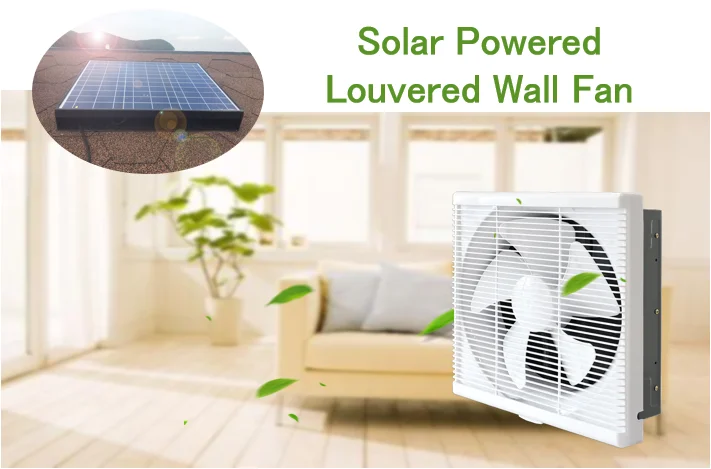

Eco Vent Tools Home Use 10'' 70W Luxury Automatic Louver Air Exhaust Fan Solar Panel Battery Power DC Motor Wall Ventilation Fan
Eco Vent Tools Home Use 10'' 70W Luxury Automatic Louver Air Exhaust Fan Solar Panel Battery Power DC Motor Wall Ventilation Fan
Regular price
£1,025.25 GBP
Regular price
£0.00 GBP
Sale price
£1,025.25 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
We Offer One-Stop All-Round Services, Welcoming Customization!
Basic Features
70W 2-circuit combined solar panels (2 x 415x495x67mm):
30w/19.5v polycrystalline module powers the fan,
40w/19.5v monocrystalline module charges a 16V*9.6Ah lithium storage battery
(battery can be charged full in 5.5 hours & discharge 21 hours for the fan),
IP63 brushless DC motor,
10" ABS plastic fan blades,
front side ABS plastic louver, rear side anti-corrosive galvanization steel shutter,
fan host: 336x336x130mm (opening size: 290x290mm),
10m cable to connect fan host & the solar panels,
an inbuilt Smart Controller is included to take care of the power switching between solar panel & battery
This is an off grid & energy sufficient wall mounted commonly use attic fan smart home ventilation fan, be powered by solar panel to automatically start running
when there is sunshine
, and at no operation cost. Moreover, it is made with backup battery to keep running nonstop even at night.
Such
easy DIY solar device (10 inch wall fan / solar power exhaust fan / BLDC wall fan kit / luxury exhaust fan 10 inch ventilation / solar wall fan intelligent ventilation for the home / industrial ventilation wall fan / intelligent home systems wall fan industrial fan, etc.) makes it convenient for you to take advantage of free solar energy entirely during daily life and work,
allowing savings of up to 100%.

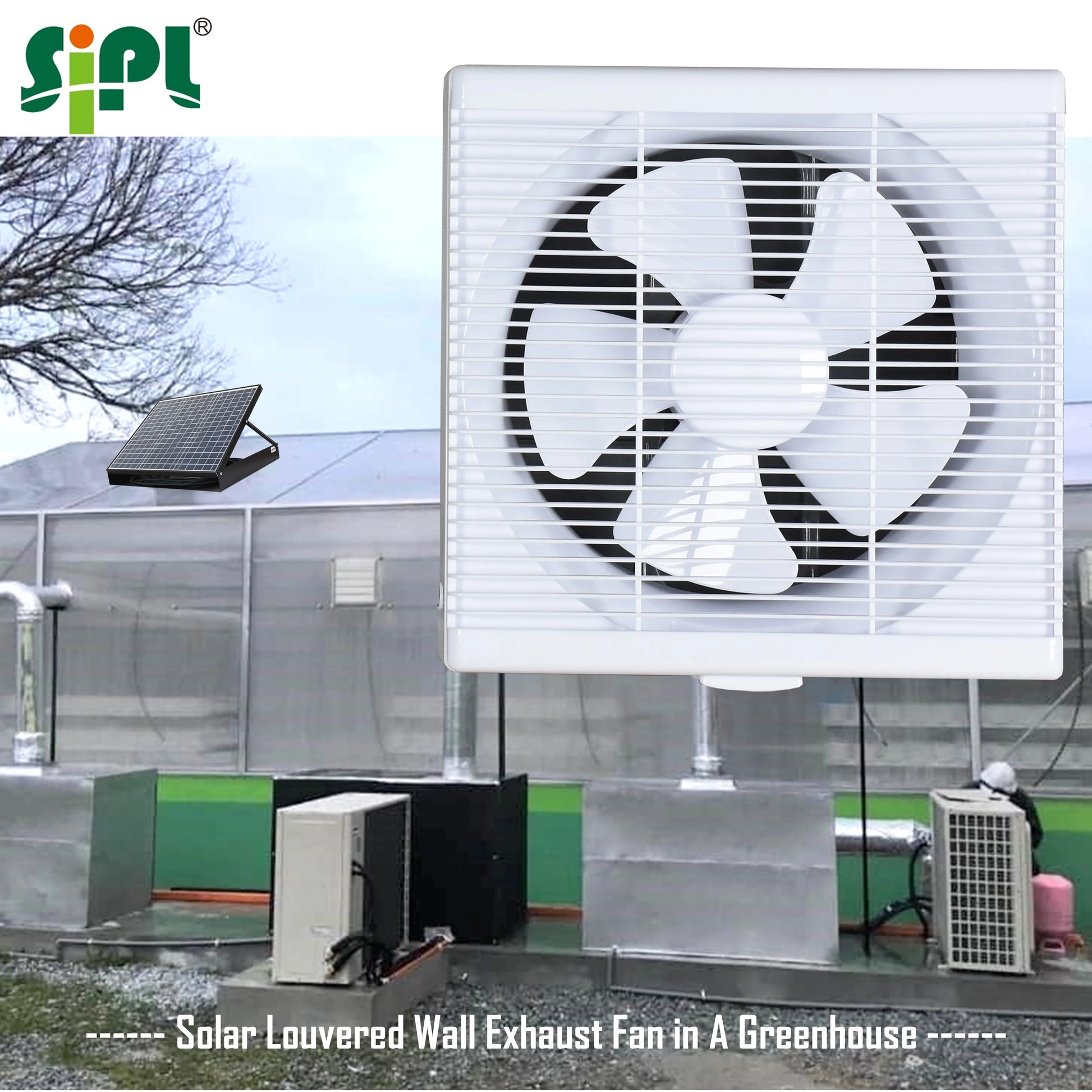

This solar powered wall exhaust fan with solar battery would strengthen indoor air circulation, deduct harmful mildews, remove heat, moisture, dust, odor... It can be widely applied in Living-room, Bathroom, Bedroom, Office, Hotel, Restaurant, Conference Center, Greenhouse...
It Serves Well Everywhere, Suits All Kinds of Building Installation, and Go Green Life throughout 24 hours!

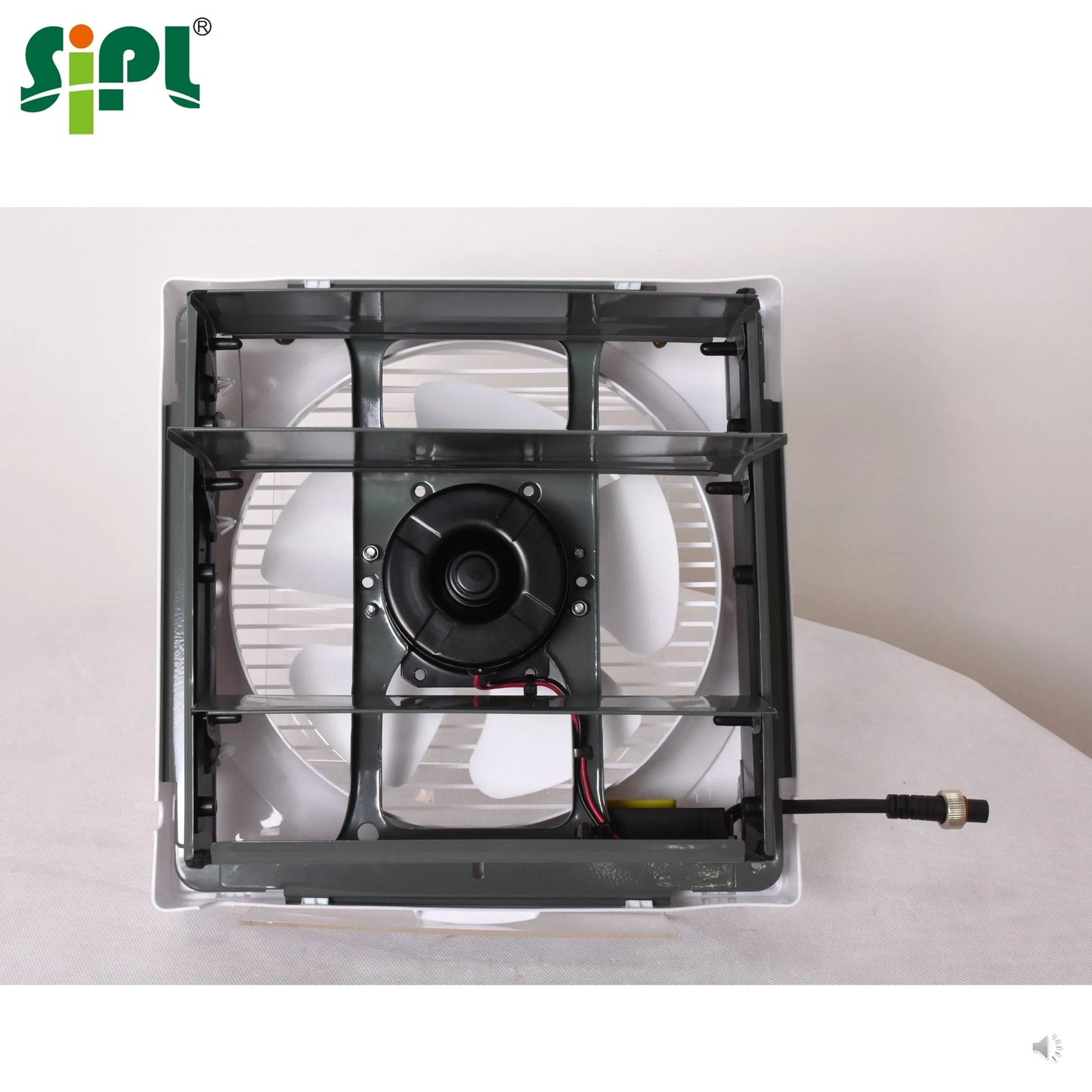

Fan Part (10 inch solar powered axial window fan with square louvers):
* ABS front covers & fan blade + galvanized steeling fan shutter body
* wire with connnector, for plug-and-play easy operation
* wire with connnector, for plug-and-play easy operation
Installation & Application
3 quick steps of installing the fan:
1) take off the ABS fan covers carefully
2) fix the galvanized steeling shutter body into the wall hole by fitting its 2 screws
3) put back the fan housing covers
* You may also put an outdoor hood to prevent water leakage from rainy days!
1) take off the ABS fan covers carefully
2) fix the galvanized steeling shutter body into the wall hole by fitting its 2 screws
3) put back the fan housing covers
* You may also put an outdoor hood to prevent water leakage from rainy days!
Motor Part (wide voltage solar motor):
* the motor starts running immediately once sunlight presents
* the motor speed will vary: fast when sunlight is strong, slow when sunlight is weak

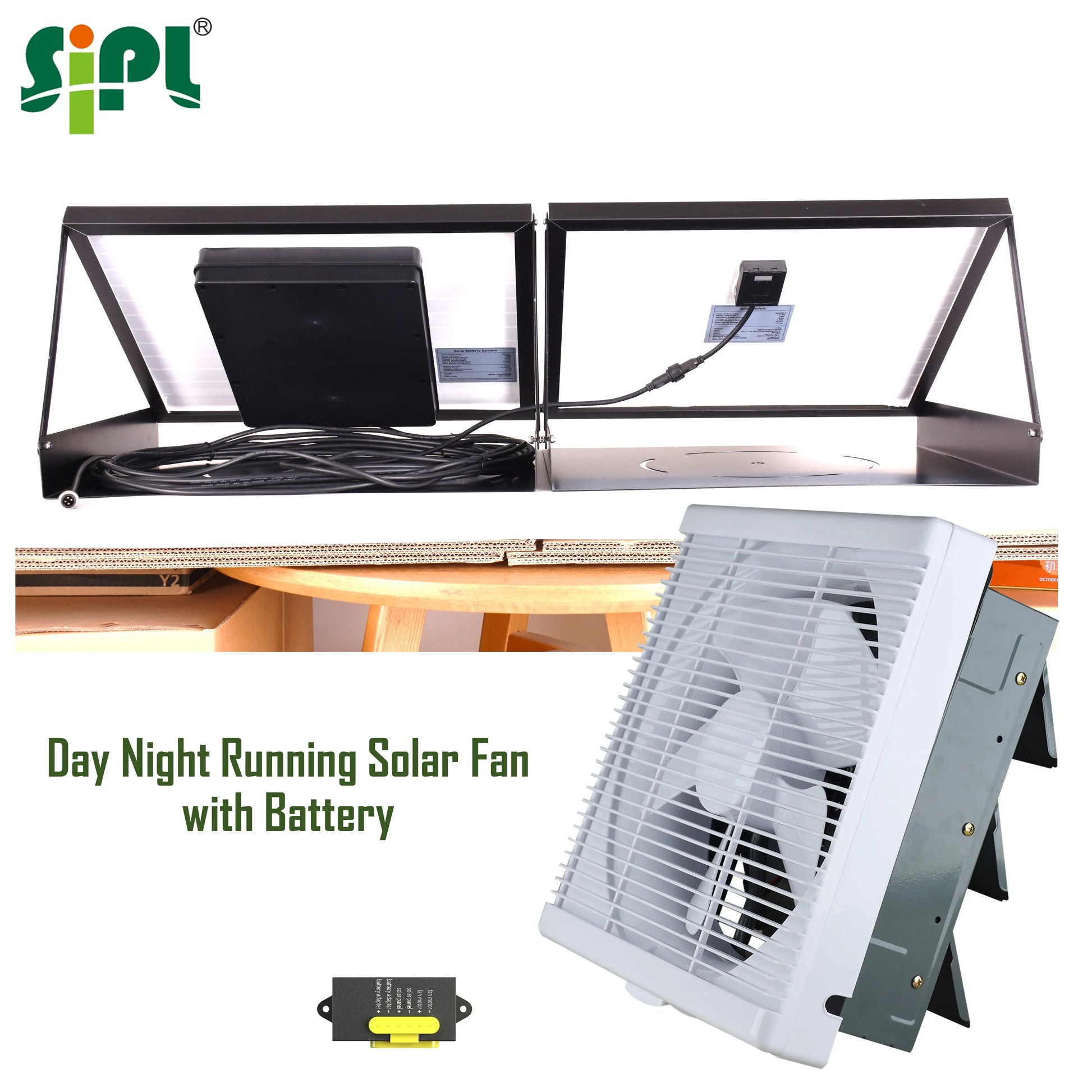

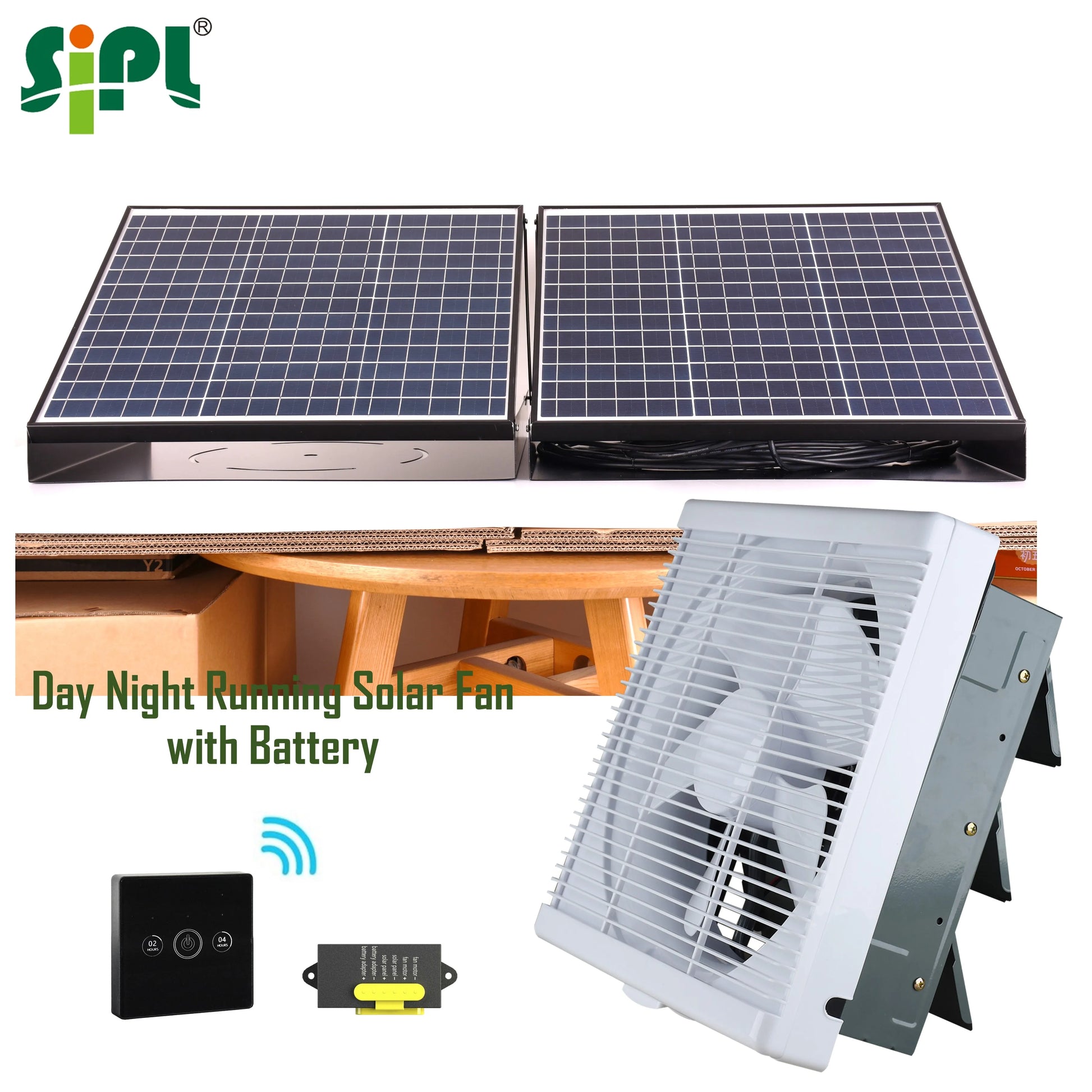

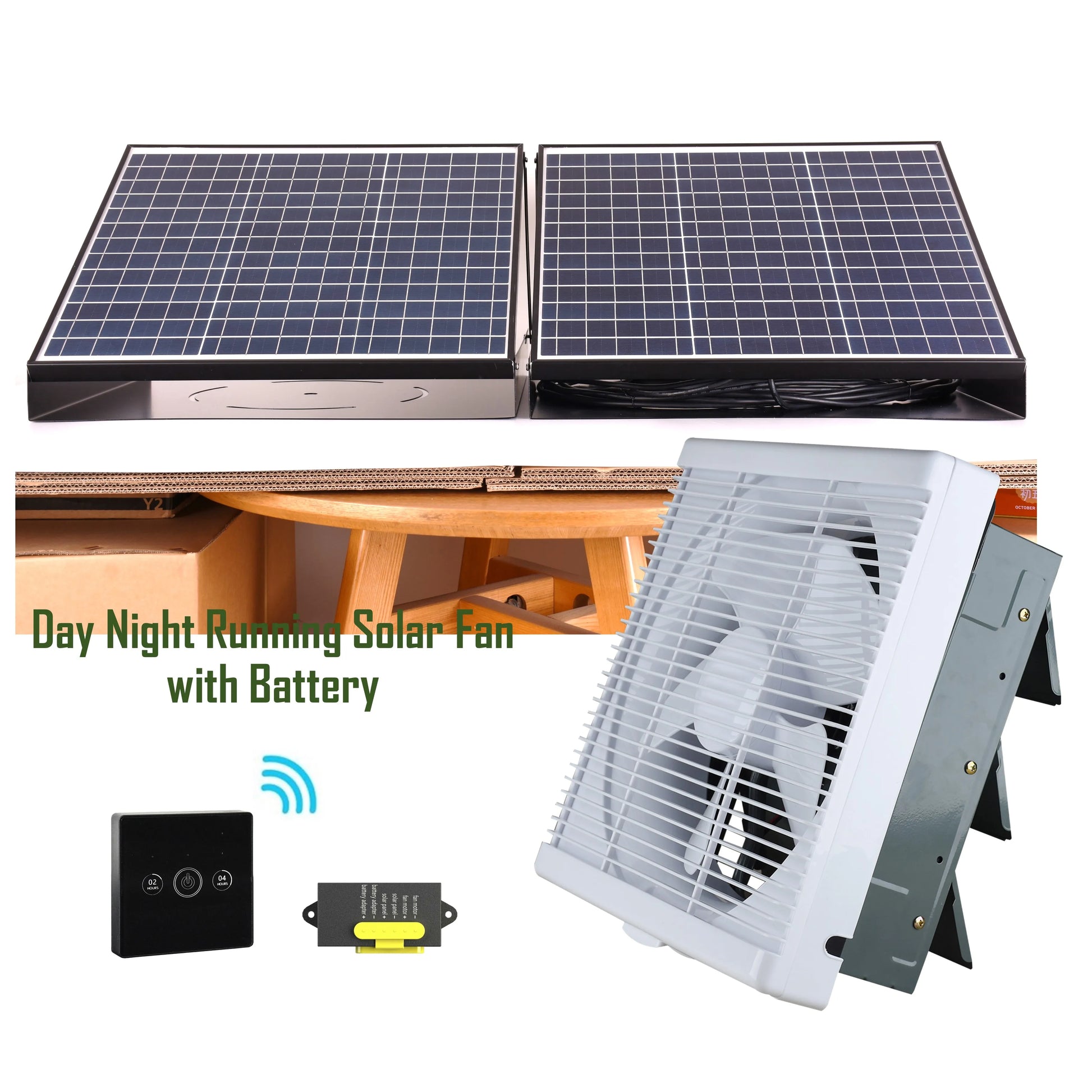

Power Part (Solar Panel with Battery for 100% Off Grid at 0 Energy Cost):
* 2pcs solar panel combining for 1 power output
* one solar panel includes battery, another solar panel does not, so the fan is powered by sole solar panel in sunny hours, while is powered by battery in sunless periods
* smartly, as long as sunshine is sufficiently there, battery will not supply power, which means battery will not be consumed in sunny moments
* 2pcs solar panel combining for 1 power output
* one solar panel includes battery, another solar panel does not, so the fan is powered by sole solar panel in sunny hours, while is powered by battery in sunless periods
* smartly, as long as sunshine is sufficiently there, battery will not supply power, which means battery will not be consumed in sunny moments
solar panel with battery: 40W/19.5V, mono cells
work principle: solar panel charges battery in sunny periods, battery dischages to power the fan in sunless periods
solar panel: 30W/19.5V, poly cells
work principle: solar panel generates energy during all sunshine priods to power the fan, and its power will be used all the time
----------- just combine the wires from solar panel & fan host, then the product will start running immediately -----------
Smart Controller Part:
24 hours nonstop cooperating in a best way for you!
-------------------------------------------------------------------
ON/OFF CONTROL --------------------------------------------------------------------

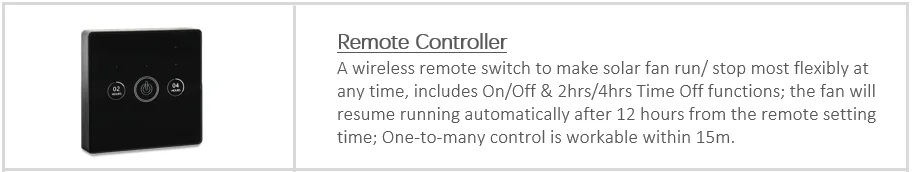

This plastic & galvanize steel mixed housing high quality copper motor exhaust vent fan is equipped with Remote Controller for you to on/off it flexibly.

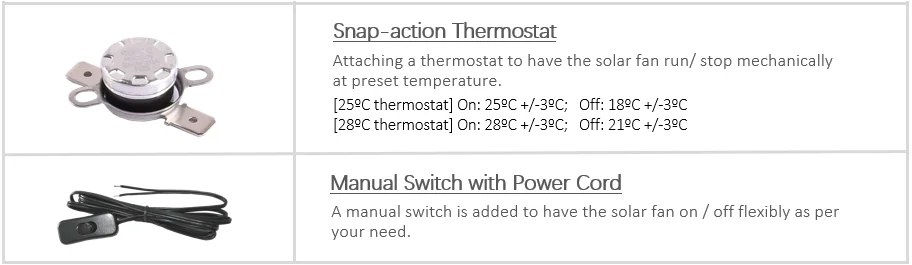

If you want to control it more traditionally, please ask us to equip it with Thermostat or Cable Cord with Switch accordingly:
Quality & Warranty
|
Fan Motor & Fan Blades
|
warranty 5 years / designed lifespan > 10 years
|
|
Fan Host
|
warranty 10 years / designed lifespan > 15 years
|
|
Solar Panel
|
warranty 15 years / designed lifespan > 25 years
|
|
Battery
|
warranty 2 years / designed lifespan > 10 years
|
|
if AC/DC Adapter
|
warranty 2 years / designed lifespan > 10 years
|
|
other electronic components
|
warranty 5 years / designed lifespan > 10 years
|
* the above warranty terms are based on the products be used in normal environments, no corrosive substance surrounded
