SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Sprayer Type: Pump

Material: Metal

Metal Type: Brass

Model Number: JZM-nn

Type: Sprayers

Product Name: Misting nozzle

Nozzle Size: 0.1mm-0.8mm

Working pressure: 25-80 Bar

Application: Cooling and Humidification

Flowing Rate: 0.03-2L/Min

Function: Humidity, Stop dust, Cooling

Thread: 3/16''

Installation: Easy

Feature: Brass Fog Mist Nozzle

Feature 2: Garden Irrigation

Package include:

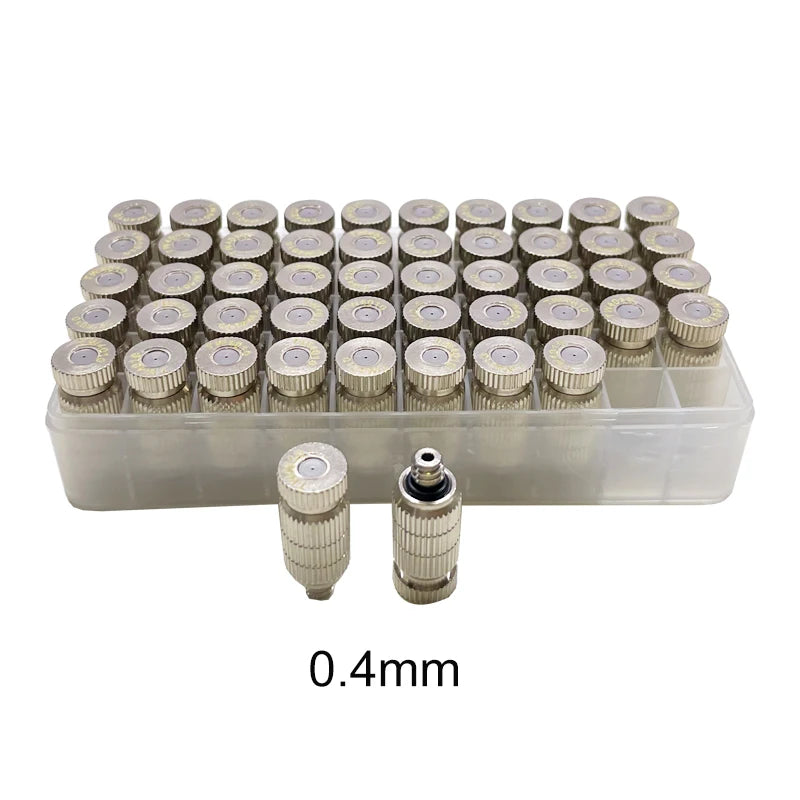

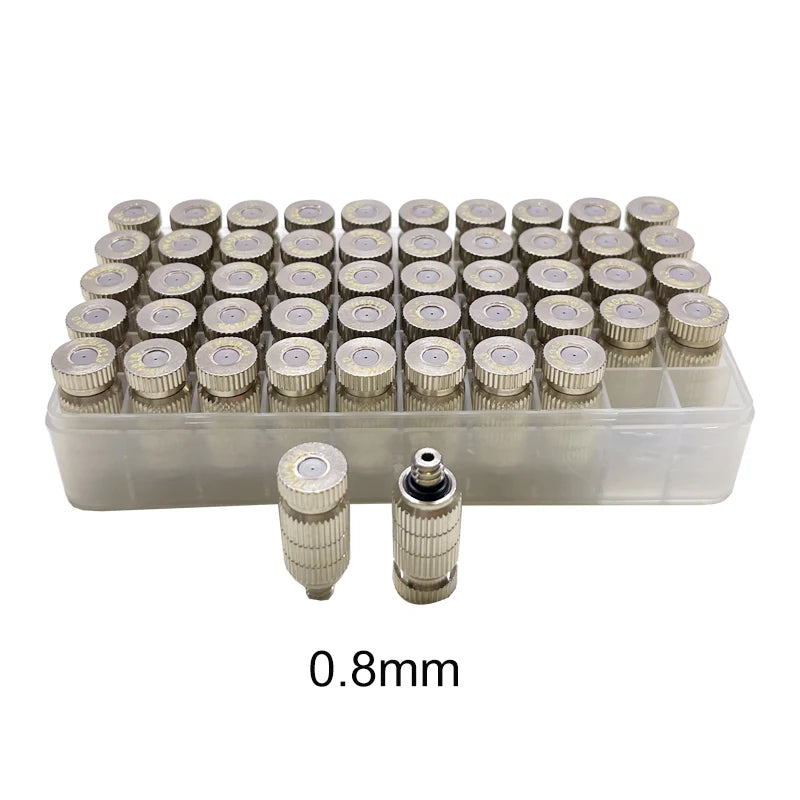

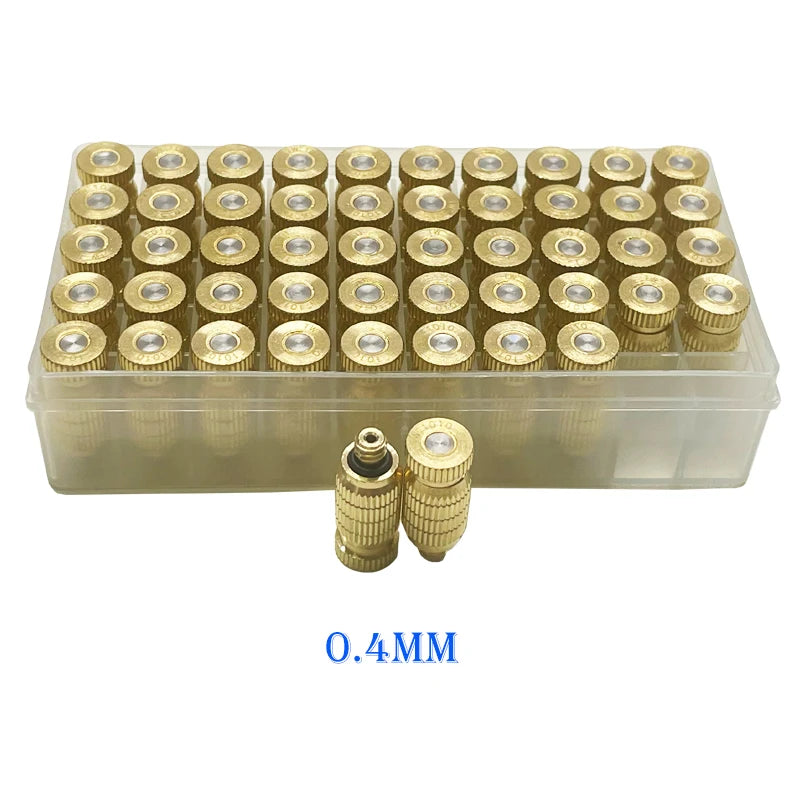

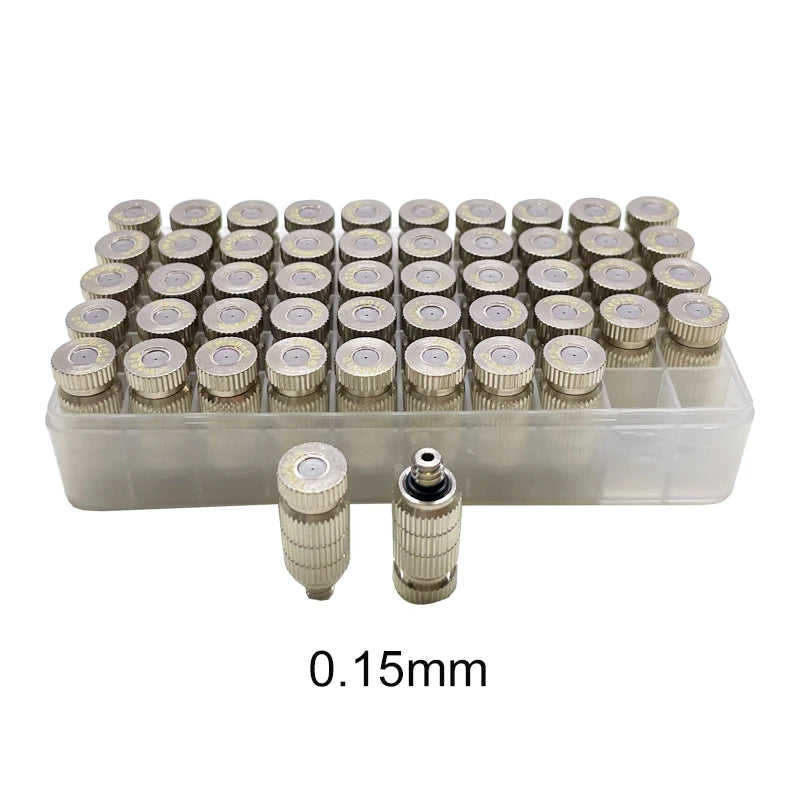

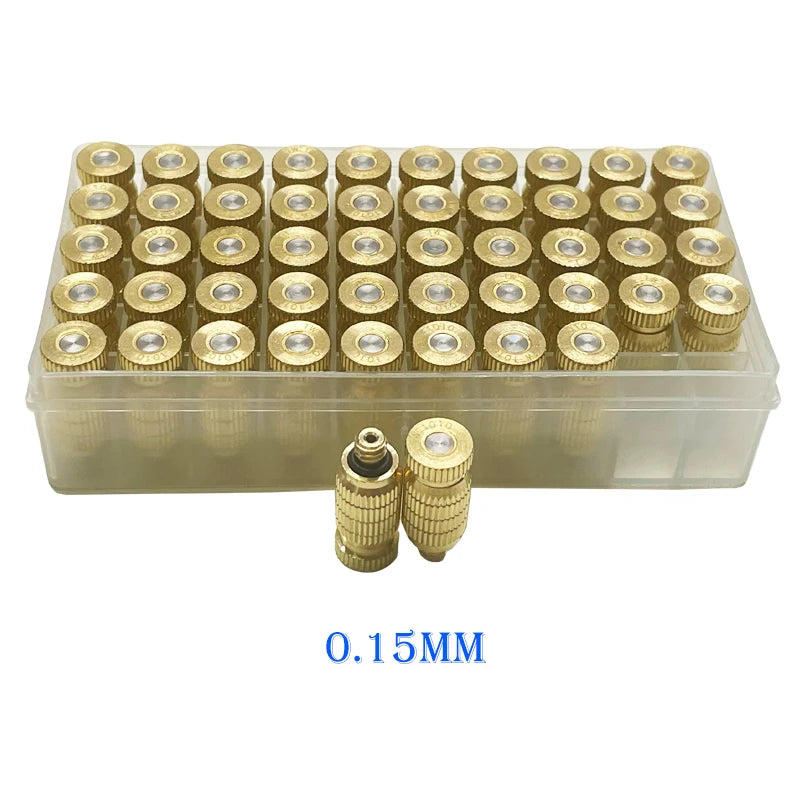

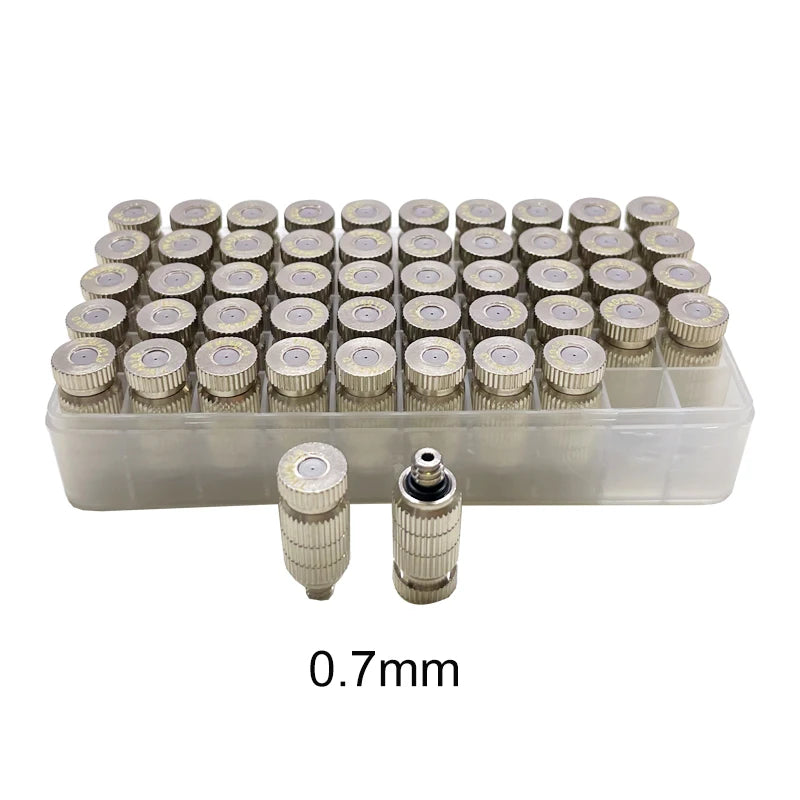

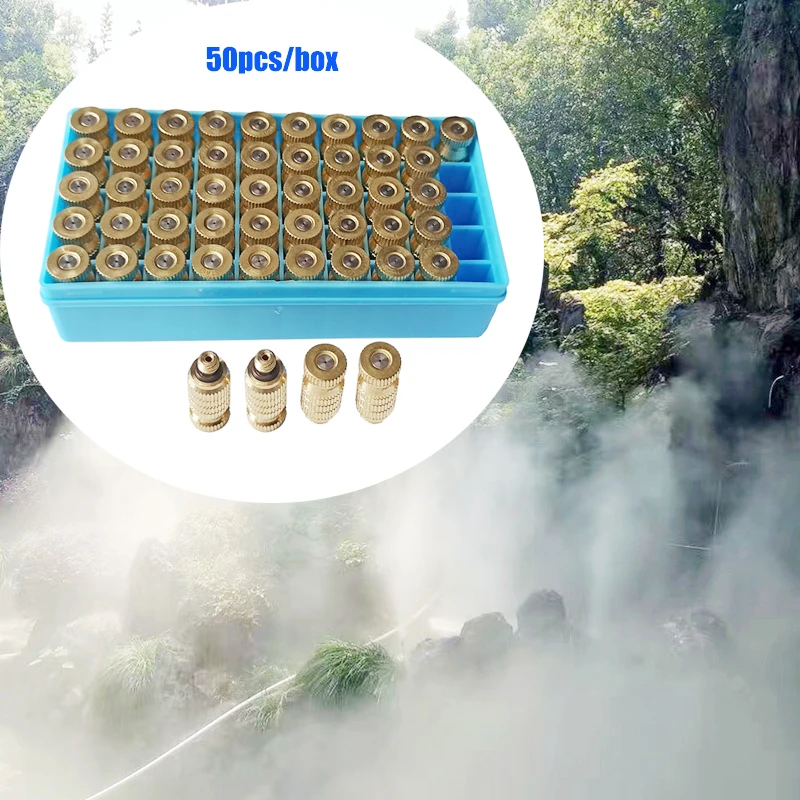

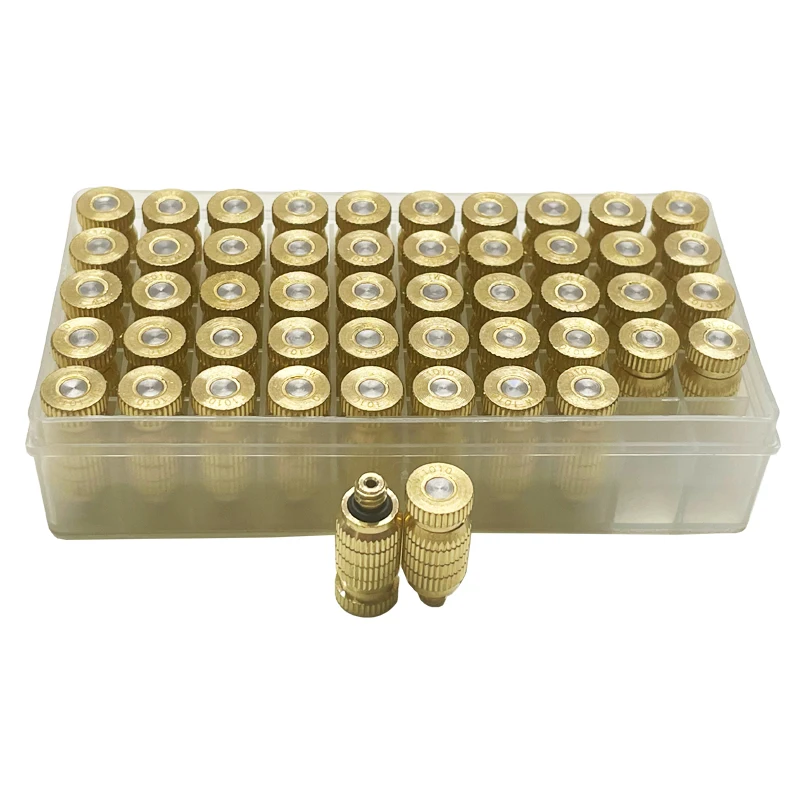

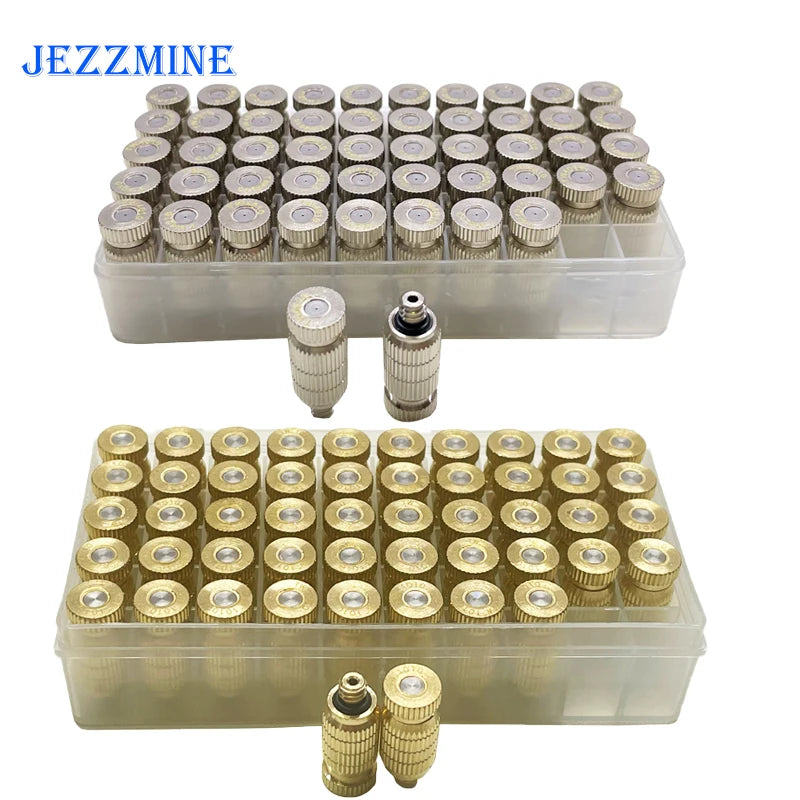

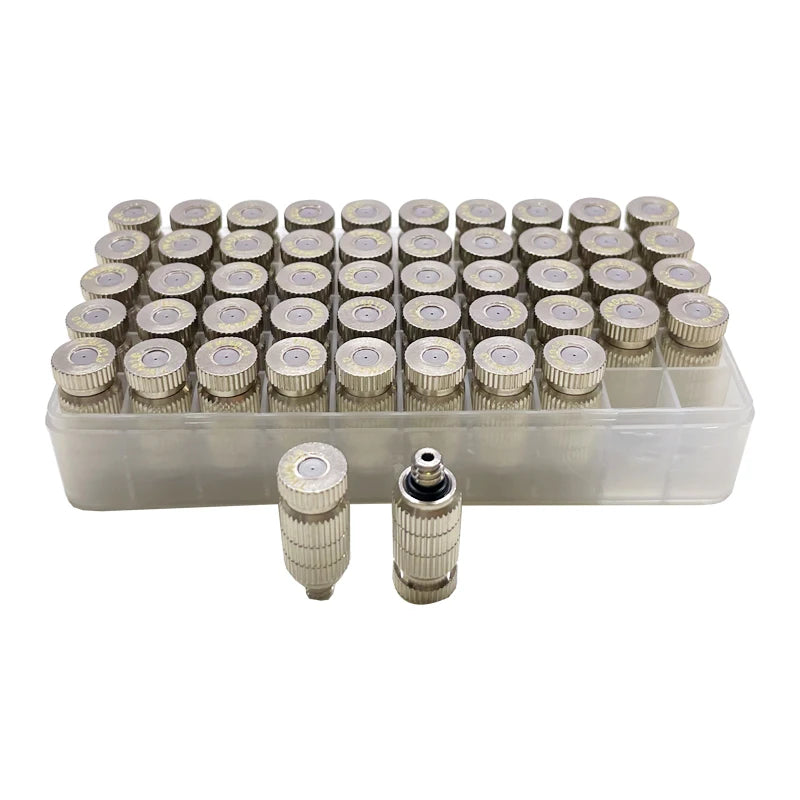

50 Pc x 3/16"" Male thread high pressure misting nozzles

Specifications:

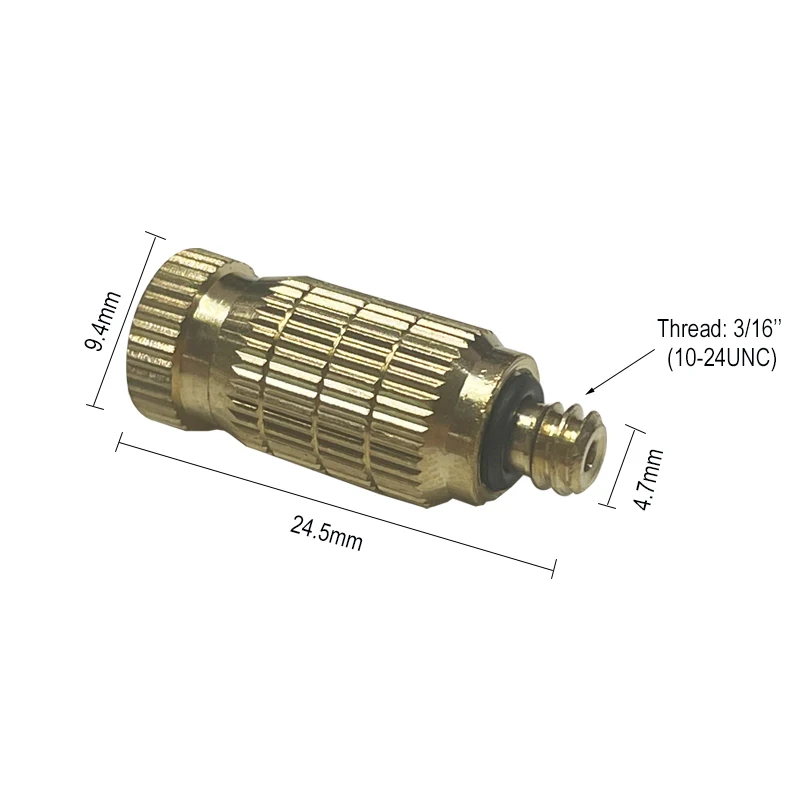

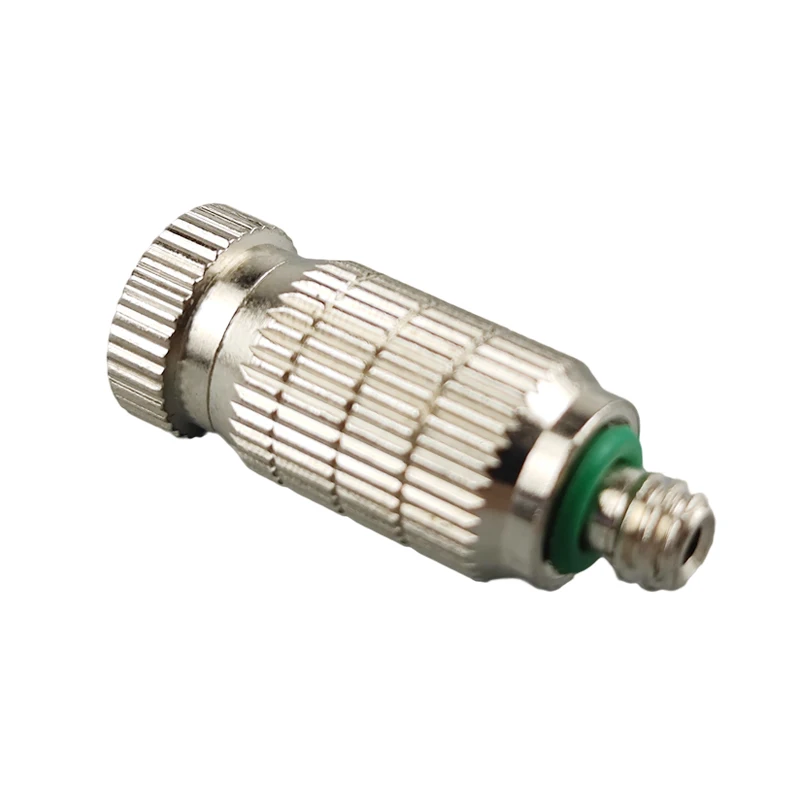

Product Name: 3/16" Male thread high pressure misting nozzles
Nozzles Material: Brass body with stainless steel orifice
Nozzles Connection size: 3/16" Thread
Nozzles Orifice: 0.1mm,0.15mm,0.2mm,0.3mm,0.4mm,0.5mm
Pressure: 30~70 bar
Application: Garden irrigation,cooling,humidification,Dust removal Landscaping, disinfection etc

Flow rate:

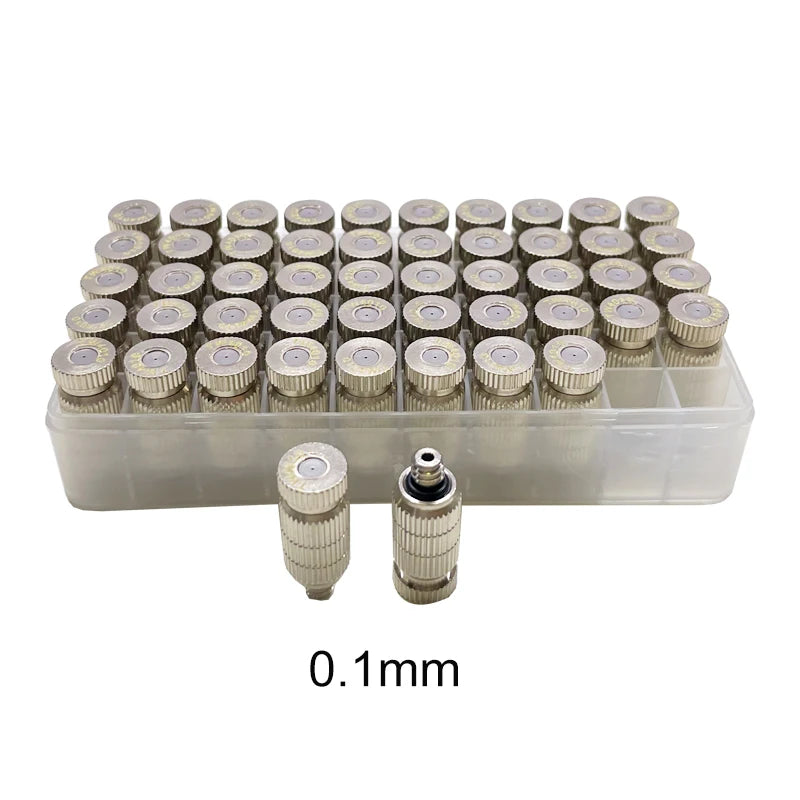

0.1mm nozzle: 0.03L/min
0.15mm nozzle: 0.04L/min
0.2mm nozzle: 0.05L/min
0.3mm nozzle: 0.075L/min
0.4mm nozzle: 0.15L/min
0.5mm nozzle: 0.19L/min

Application :

Textile workshop humidification
Stock farm cooling sterilize
Man-made fog sight
Vegetable retain freshness
Dust removing etc

Note

It is manual measurement, there may be 1-2mm error.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you.

Design Features

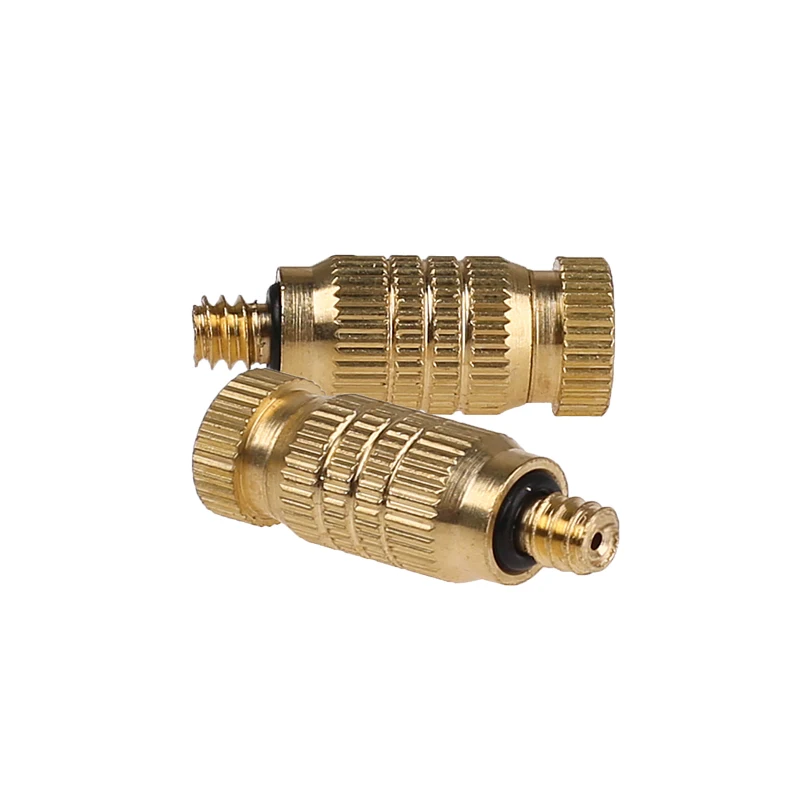

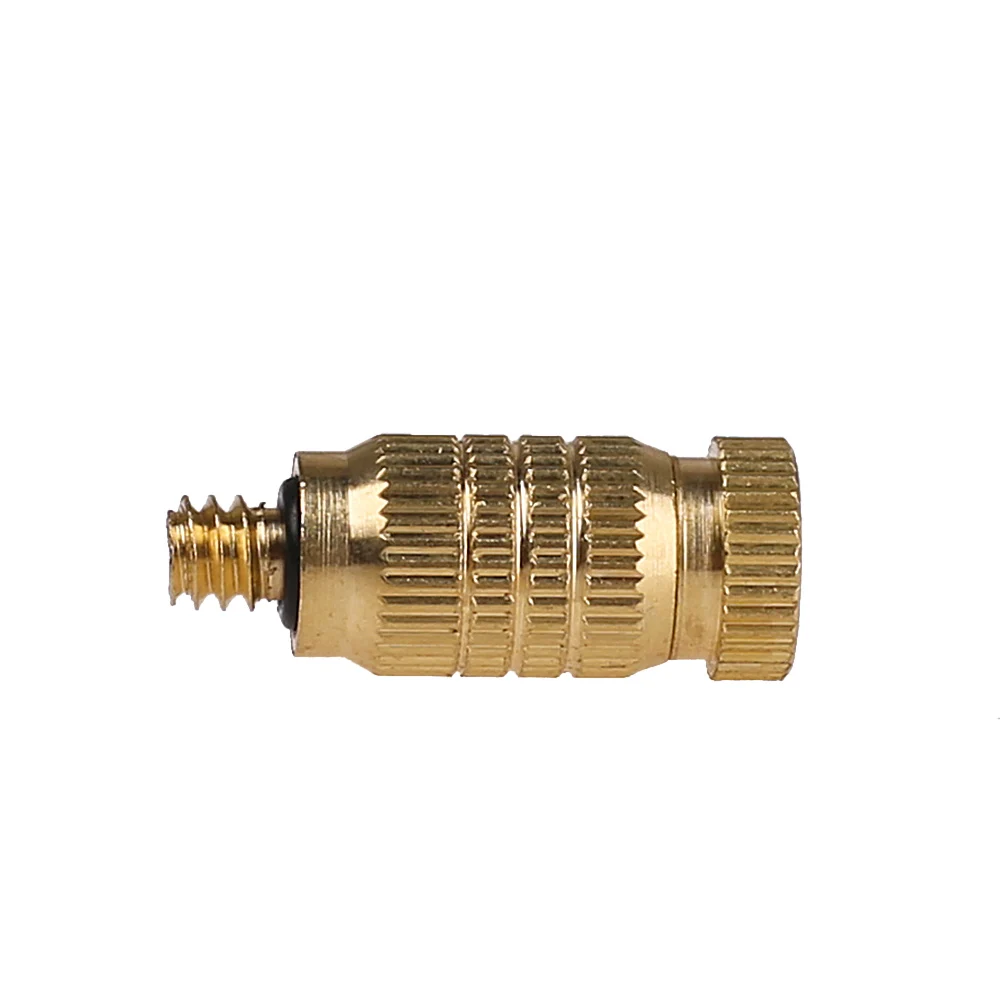

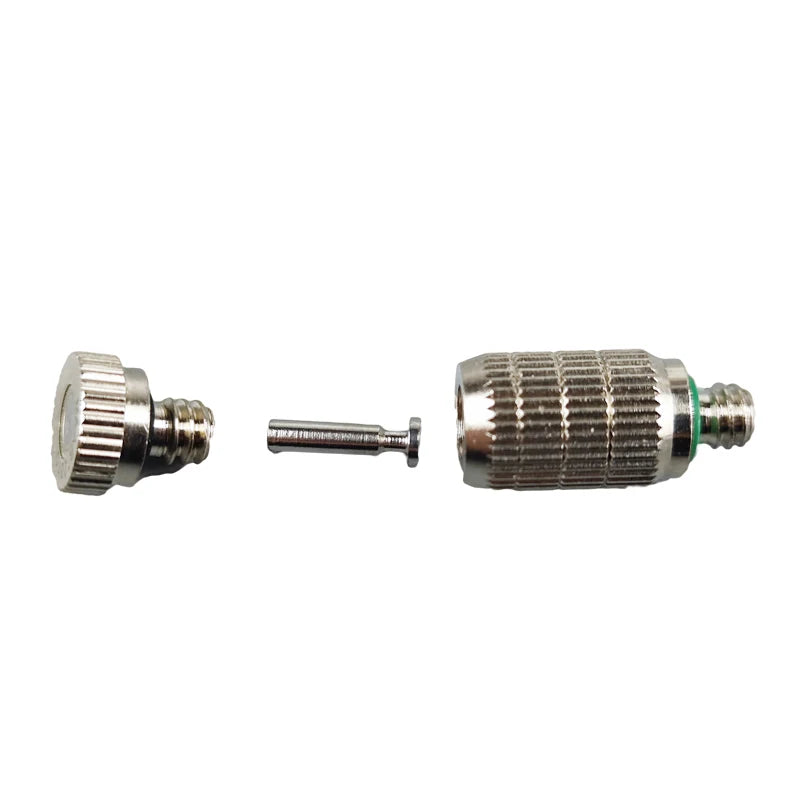

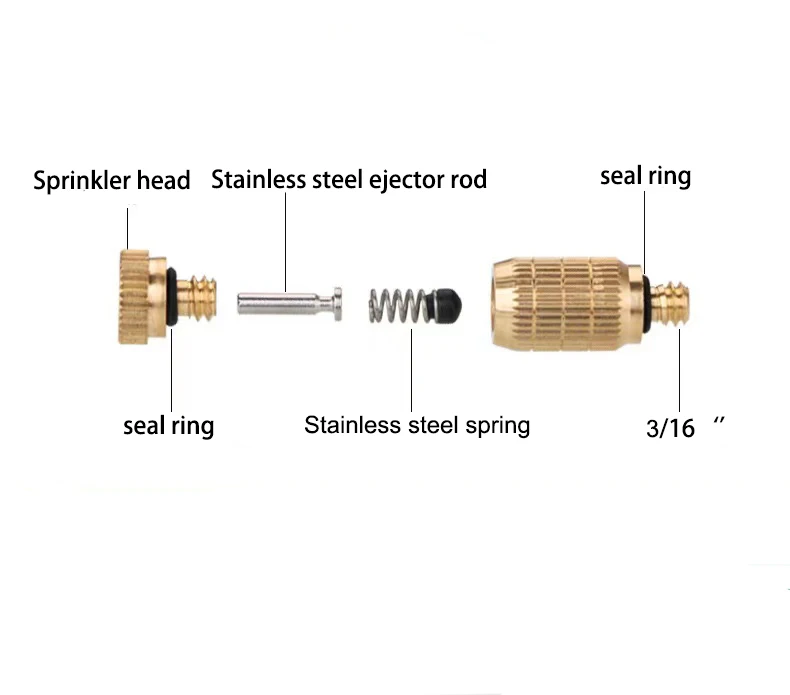

The brass fine atomizing nozzle is a brass main body with a stainless steel nozzle core and stainless steel guide vane.

The liquid forms a centrifugal vortex in the guide vane, and the fine hollow mist particles are sprayed from the nozzle hole, which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.

Application as below:

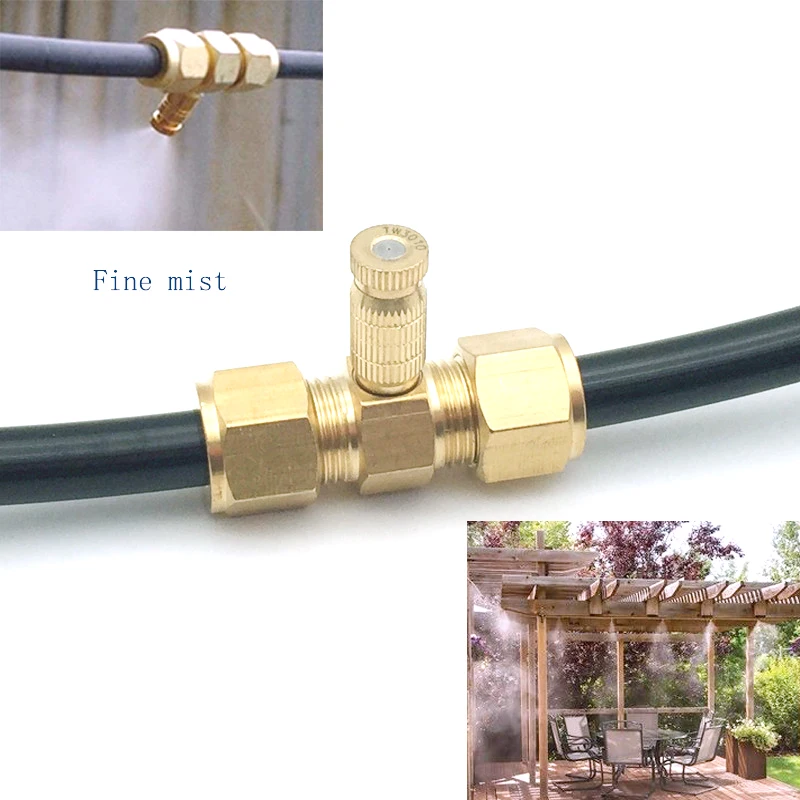

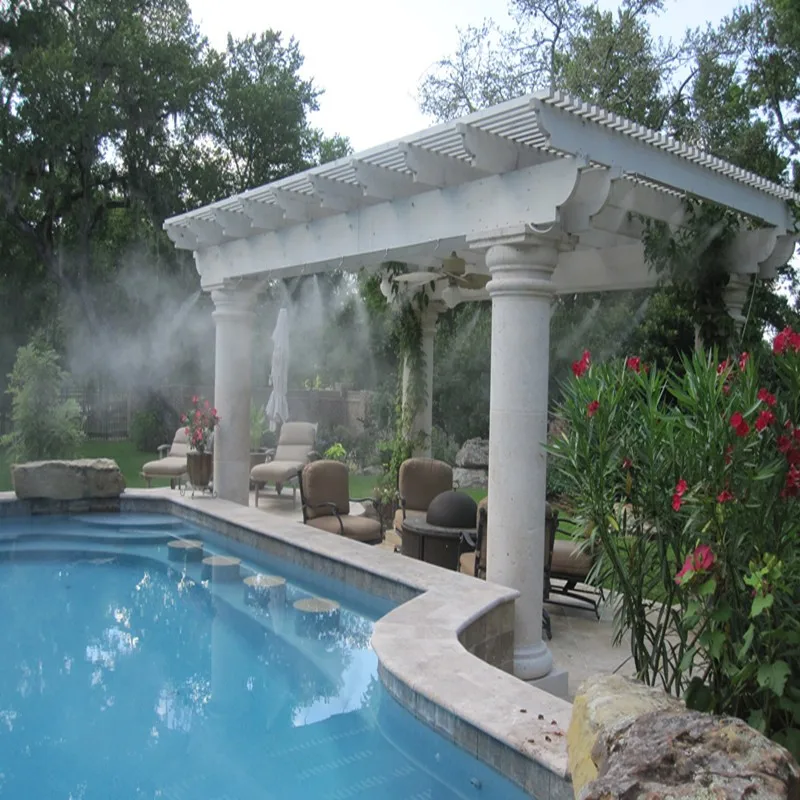

Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc

Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime.
