High Security Galvanized 358 Welded Wire Mesh Panel Fencing Metal Iron Pvc Coated 4mm Small Garden Fence Green
High Security Galvanized 358 Welded Wire Mesh Panel Fencing Metal Iron Pvc Coated 4mm Small Garden Fence Green
Regular price
£374.23 GBP
Regular price
£0.00 GBP
Sale price
£374.23 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Heavy High Security Fence Galvanized 358 Fence Welded Wire Mesh Panel Fencing
Product Description
358 welded wire fence:
358 guardrail mesh is relatively narrow, not easy to be objects through, so small mesh with traditional hand tools are difficult to cut.Even difficult to climb, play to the maximum the protection of the role, so called security guardrail, also known as high strength guardrail.
Feature: Anti - climbing ability is very strong, the strengthening of the net increased its damage degree, use time is long, durable.
1.Mesh pattern: 76.2 mm (3") x 12.7 mm (0.5") welded at each intersection 2.Horizontal wires: 4 mm diameter at 12.7 mm 3.Centers Vertical wires: 4 mm diameter at 76.2 mm 4.Centers Weld strength: 75% of the minimum tensile strength of the wire Tensile range 540-690 N/m² 5.Wire Dia.：3.25 mm,4 mm 6.Openings: 12.7 x 50.8 mm,12.7 x 76.2 mm 7.Fence Height:1800,2000,2400,3000,4000,5200 mm 8.Colors: Standard colors are Green RAL 6005 and Black RAL 9005.Other colors are available on request.
|
Fence Panel (Height X Width)
|
Fence Post(Height X Size X Thick )
|
Clamp Bar(Height X Width X Thick )
|
Clamp No(PCS)
|
|
2007mm x2515mm
|
2700mm x60x60x2.5mm
|
2007mm x60mm x5.00mm
|
7 or 14
|
|
2400mm x 2515mm
|
3100mmx60x60x2.5mm
|
2400mm x60mm x5.00mm
|
9 or 18
|
|
2997mm x2515mm
|
3800mmx80x80x2.5mm
|
2997mm x80mm x6.00mm
|
11 or 22
|
|
3302mm x2515mm
|
4200mmx80x80x2.5mm
|
3302mm x80mm x6.00mm
|
12 or 24
|
|
3302mm x2515mm
|
4500mmx100x60x3.0mm
|
3607mmx100mmx7.00mm
|
13 or 26
|
|
3607mm x2515mm
|
4500mmx100x100x3.0mm
|
3607mmx100mmx7.00mm
|
13 or 26
|
Application

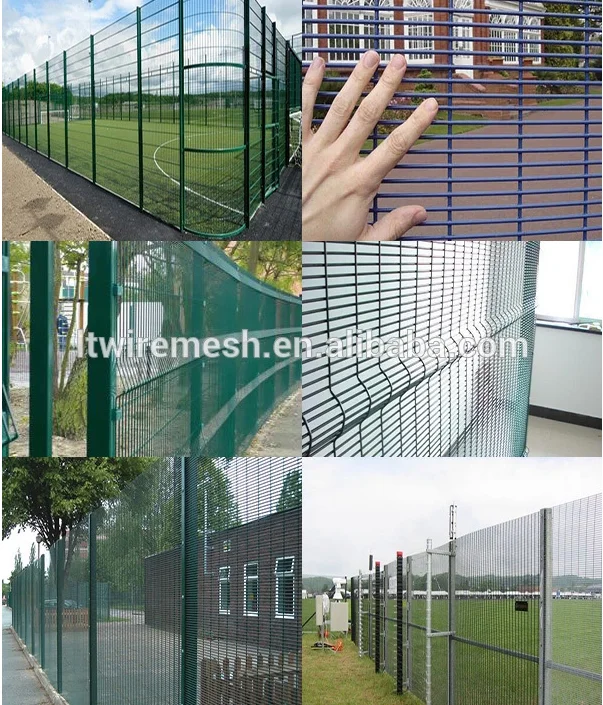

Application: It is mainly used for the protection of high risk areas such as prison, post, border defense, fenced area protection, as well as the protection net of municipal gardens
Product Detail
Installation Instructions
