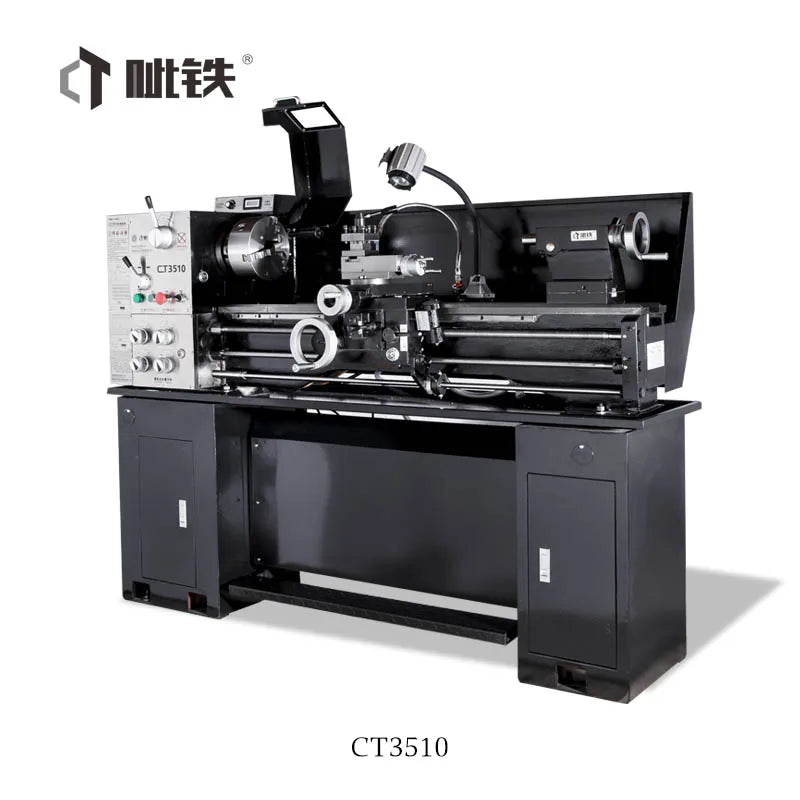

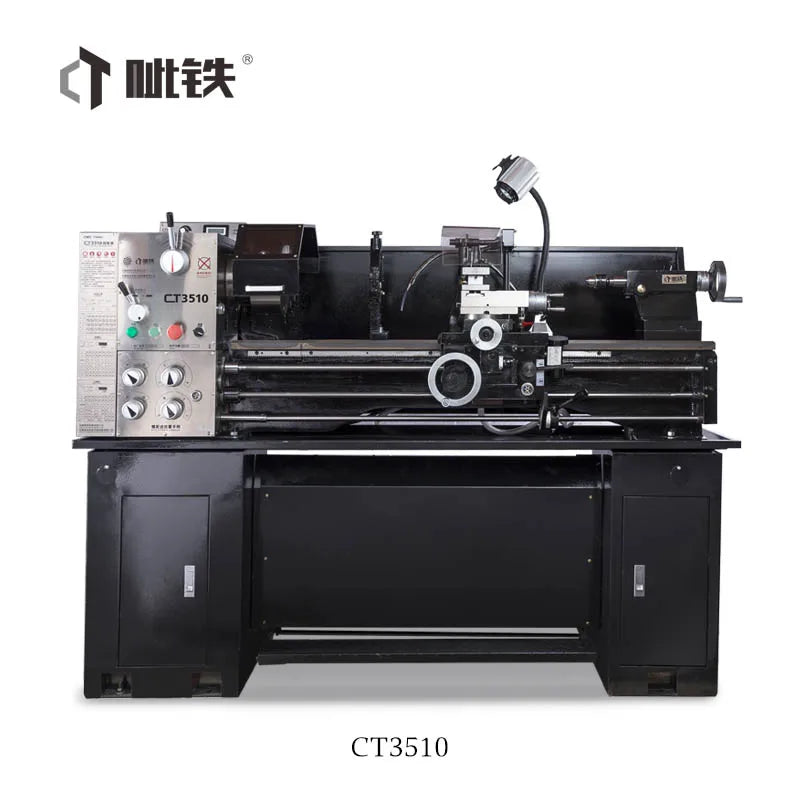

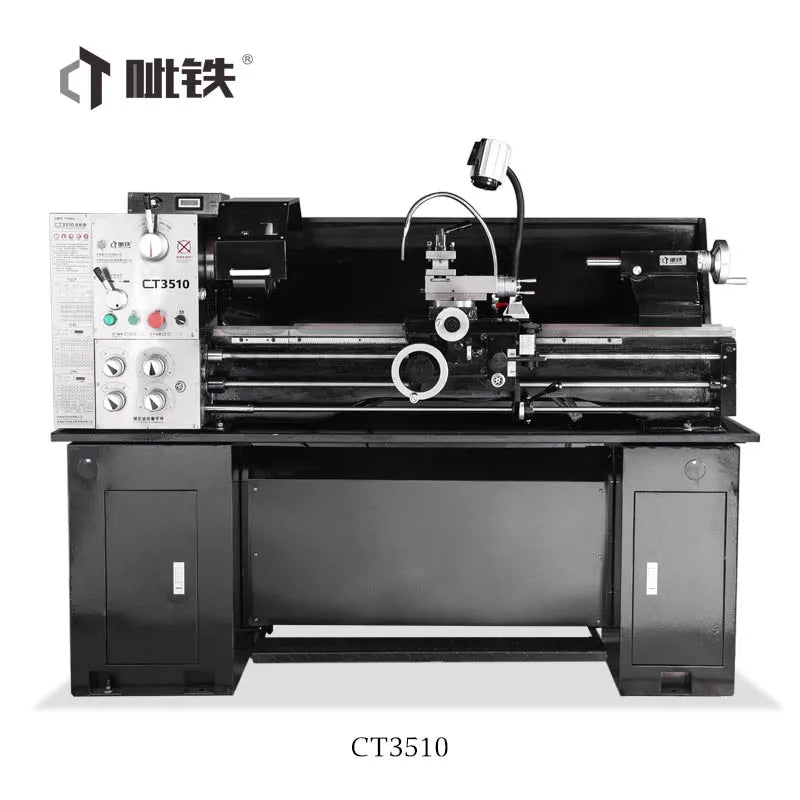

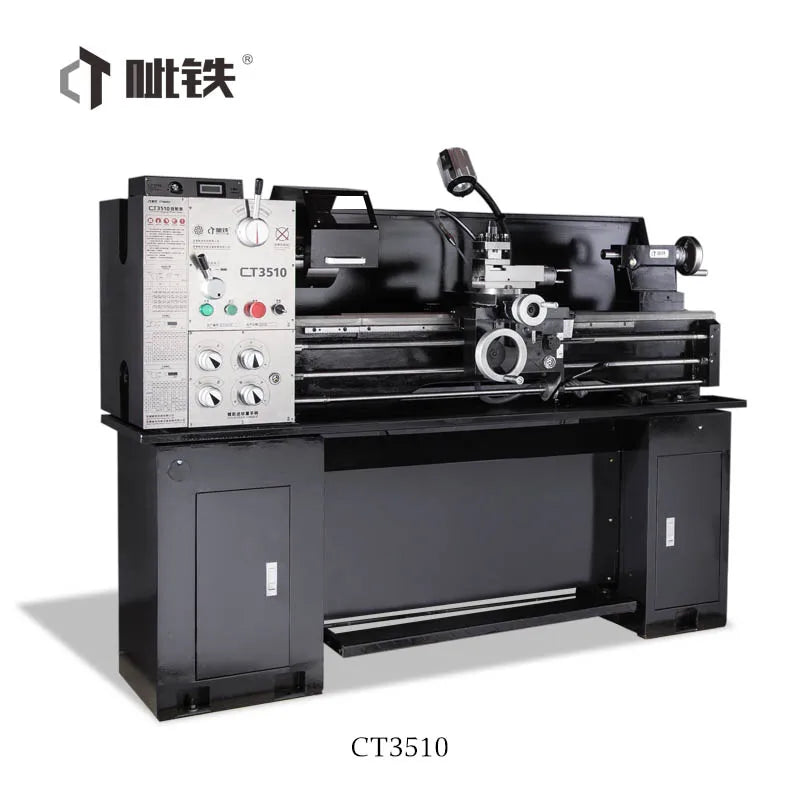

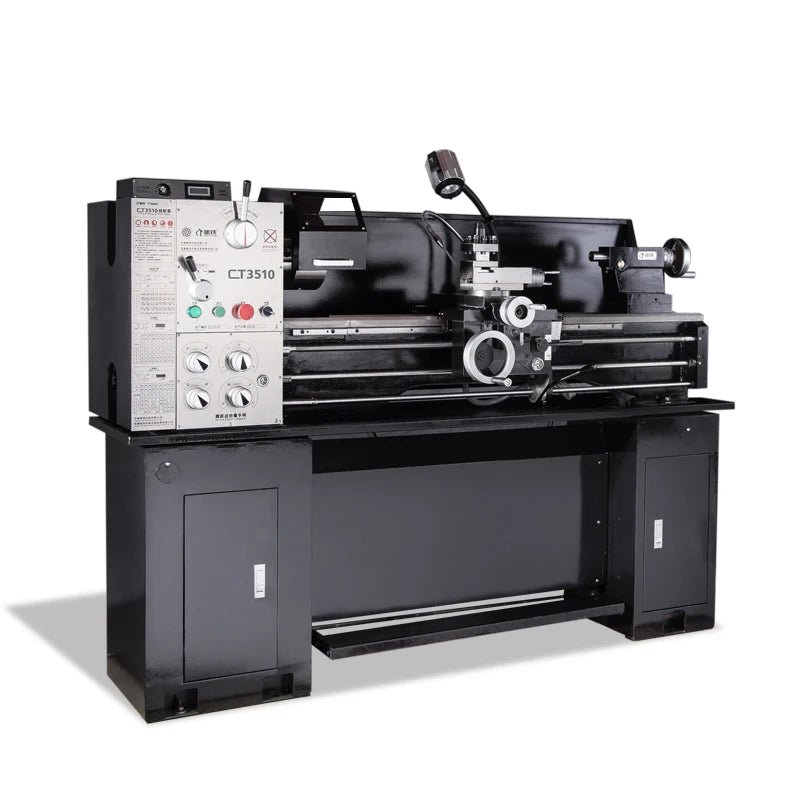

Hot Selling Manual Lathe Machine not cnc Automatic Heavy Duty CT3510 Optimum Weiss Metal Lathe 51mm Looking for Distributors!
Hot Selling Manual Lathe Machine not cnc Automatic Heavy Duty CT3510 Optimum Weiss Metal Lathe 51mm Looking for Distributors!
Regular price
£11,662.07 GBP
Regular price
£0.00 GBP
Sale price
£11,662.07 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
| Maximum turning diameter bed | 355mm |
| Maximum turning diameter of middle carriage | 220mm |
| Maximum turning diameter in the saddle | 500mm |
| Saddle length | 204mm |
| Two top distance | 1000mm |
| Width of bed | 187mm |
| Spindle speed range/Grade | 70-2000rpm/variable |
| Taper of spindle bore | MT5 |
| Chuck specifications | 200mm |
| Spindle bore | 51mm |
| Tailstock quill travel | 95mm |
| Tailstock quill diameter | 32mm |
| Taper of tailstock quill | MT3 |
| Cross slide travel | 160mm |
| Top slide travel | 68mm |
| Range of metric threads/Grade | 0.4-7mm/26 |
| Range of inch threads/Grade | 4-56T.P.I/34 |
| Range of cross feeds | 0.014-0.38mm/r |
| Range of longitudinal feeds | 0.052-1.392mm/r |
| Motor | 220v(380v)/1.5kw |
| N.W./G.W. | 510/570kg |
| Machine size | 1920×750×1500mm |
| Work cabinet size | 1740×430×700mm |
