* The wind guide cone with 24pcs wind guide blade structure is held a patent by us, to effectively support the interior hot air be extracted out and no any counterforce to reduce the fan efficiency!
* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan
system with better performance and in quieter operation!
EnglishCaliGenetics.co.uk
HVAC Air Smoke Heat Extractor Roof Vents 25W Solar DC Powered HVLS Industrial Ceiling Exhaust Fan Chimney Ventilation Cooler Fan
HVAC Air Smoke Heat Extractor Roof Vents 25W Solar DC Powered HVLS Industrial Ceiling Exhaust Fan Chimney Ventilation Cooler Fan
Regular price
£514.83 GBP
Regular price
£0.00 GBP
Sale price
£514.83 GBP
Taxes included.
Quantity
Couldn't load pickup availability
What It Is
Manufacturer of Air Conditioning in China with Solar Attic Fan / Ceiling Heating Cooling HVAC Axial Fan / Ceiling Fan Heat Extraction HVAC Vent / Air Vents for Poultry Farm / Warehouse Roof Ventilation Fan / Extraction Fan Industrial Tools / Ventilation Extractor Fan with Solar Panel / Solar Ventilation Roof Fan / Solar Powered Ventilation Fan / Attic Fan Solar Roof Vent / Tank Vent...

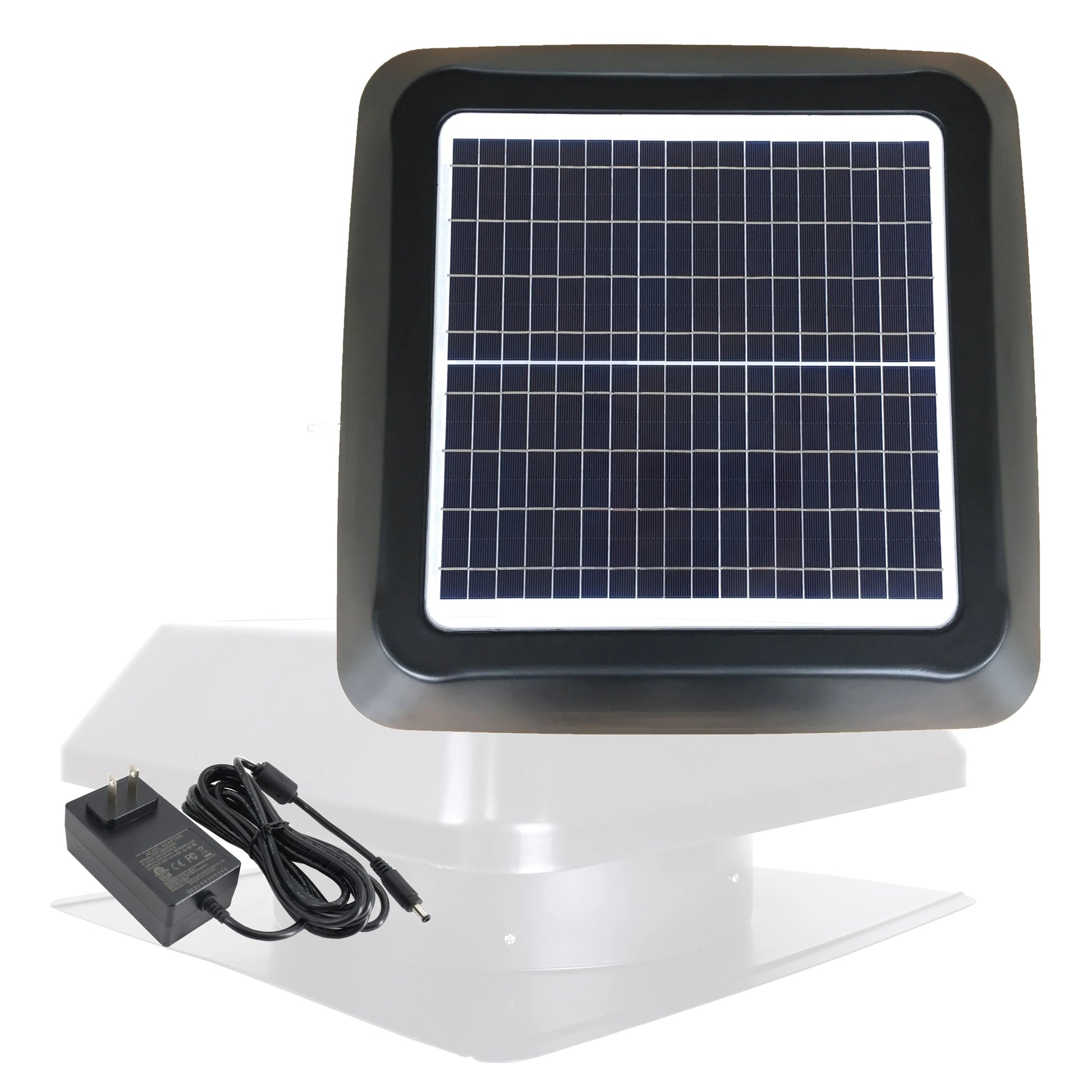

25W/21.6V monocrystalline solar panel (354x354x4.5mm), IP68 brushless DC motor, 12'' Nylon-Fiber-Aluminum compound fan blades (air duct dia. 315mm), 530*530mm Square shape fan cover & fan base, fan case material: galvanization steel, size: 530x530x225mm,
20.5V*1.5A AC/DC adapter, of 3m cable, to consume some gird electricity in sunless periods for 24hrs nonstop,
an inbuilt Smart Controller is included to take care of the power switching between solar panel & AC/DC adapter
【work time: solar fan keeps running in day & night, sunny hours by solar panel, sunless periods by AC/DC adapter】
an inbuilt Smart Controller is included to take care of the power switching between solar panel & AC/DC adapter
【work time: solar fan keeps running in day & night, sunny hours by solar panel, sunless periods by AC/DC adapter】
Mobile / Wechat / Whatsapp: +86 15917347085 / Cindy Fong
Product Specificas
BLDC MOTOR DIRECT DRIVEN AXIAL FLOW TYPE 12'' ROOF MOUNT SOLAR AIR VENT FAN
We are 100% Reliable Solar Powered Ventilation Fan Manufacturer, Look High into the Product Qualities & Utilities!
We are 100% Reliable Solar Powered Ventilation Fan Manufacturer, Look High into the Product Qualities & Utilities!
Solar Attic Fan Part:
|
Fan Cover
|
530*530mm Square shape, galvanization steeling with outdoor standard powder coating
|
|
Solar Panel
|
25W/21.6V, monocrystalline cells, 354*354*4.5mm, embedded mount on the fan cover top; serve as main power when sunlight is available
|
|
Wind Guide Cone &
Wind Guide Blades
|
SIPL patented ventilation structure;
benefits for a higher air extraction efficiency
|
|
Air Duct
|
12'', dia.315mm
|
|
Fan Motor
|
IP68 waterproof brushless DC motor (SIPL patented fan motor)
|
|

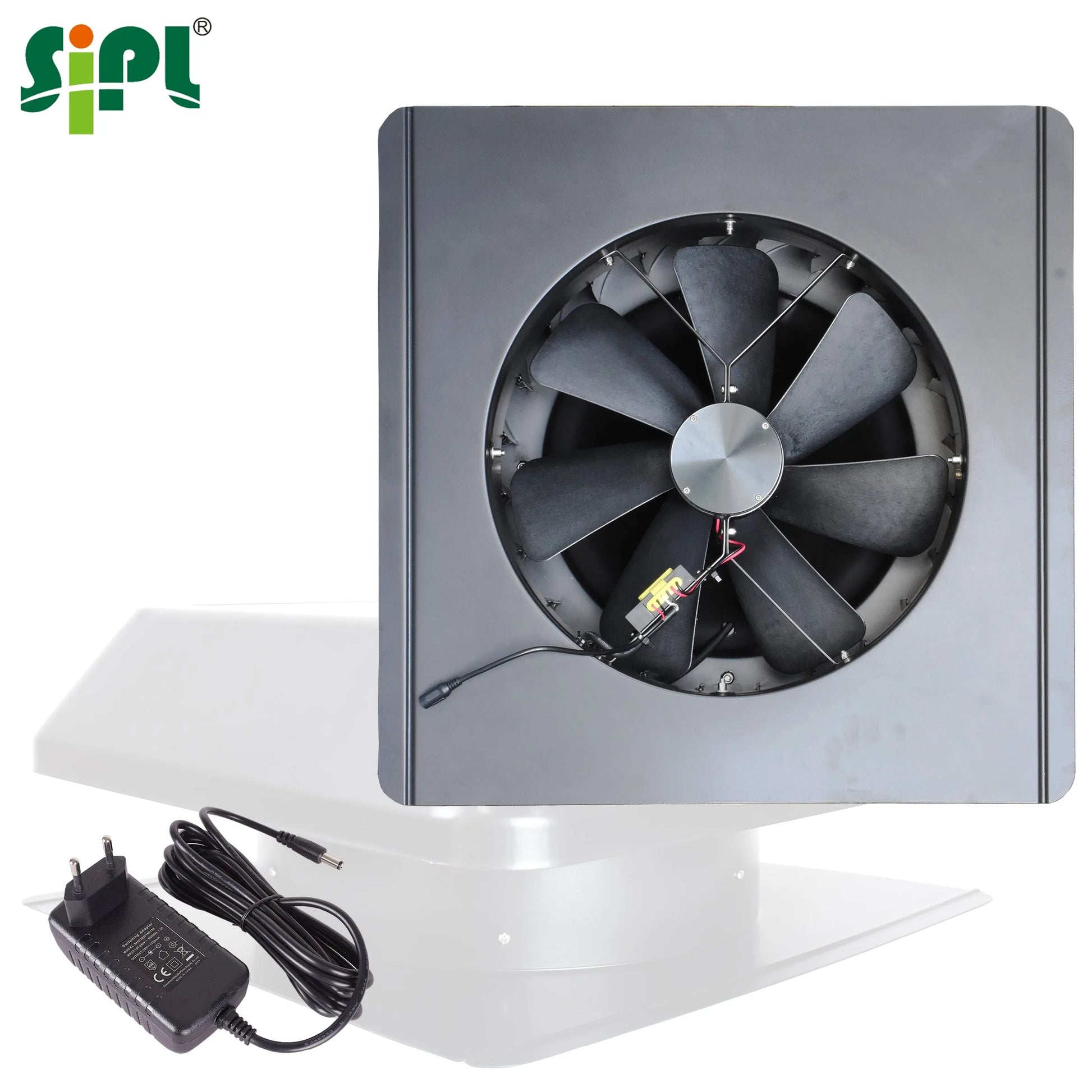

Fan Blades
|
12'', 7pcs, nylon-fiber-aluminum compound unique fan blades
|
|
Fan Base
|
530*530mm Square shape & flat, detachable from fan host, galvanization steeling quality
|
|
Fan Host Size
|
530*530*225mm
|
* Patented Ventilation Structure
Wind Guide Baldes + Fan Blades
* Unique Brushless DC Motor
High Efficiency + Unique Waterproof
* The high energy efficiency feature in our motor supports the fan start running once solar panel input reaches 9V in the morning, and it keeps running until solar panel output drops down to 9V in the afternoon!
* Since IP68 waterproof, our fan is guaranteed to work well in a long run, even in those special environments like greenhouse / water tanks, etc., while other similar items can not do!
Being a self-contained solar ventilation roof fan, our equipment will work friendly & reliably after you put it onto the building roof. Moreover, own to good product strucure and off-grid solar feature, our solar vent would effectively reduce the possible maintenance trouble for you in future.
THIS SOLAR CHIMNEY ROOF EXHAUST FAN CAN RUN NONSTOP ALSO AT NIGHT!
Dual Power Supplier Part:
The fan motor engine is connected with solar panel & AC/DC adapter, 2 circuits, and it will run immediately once sunlight is available. Magically, as long as sunlight is sufficient there, AC/DC adapter will not supply power, which means AC/DC adapter will not consume grid electricity when solar panel is working!

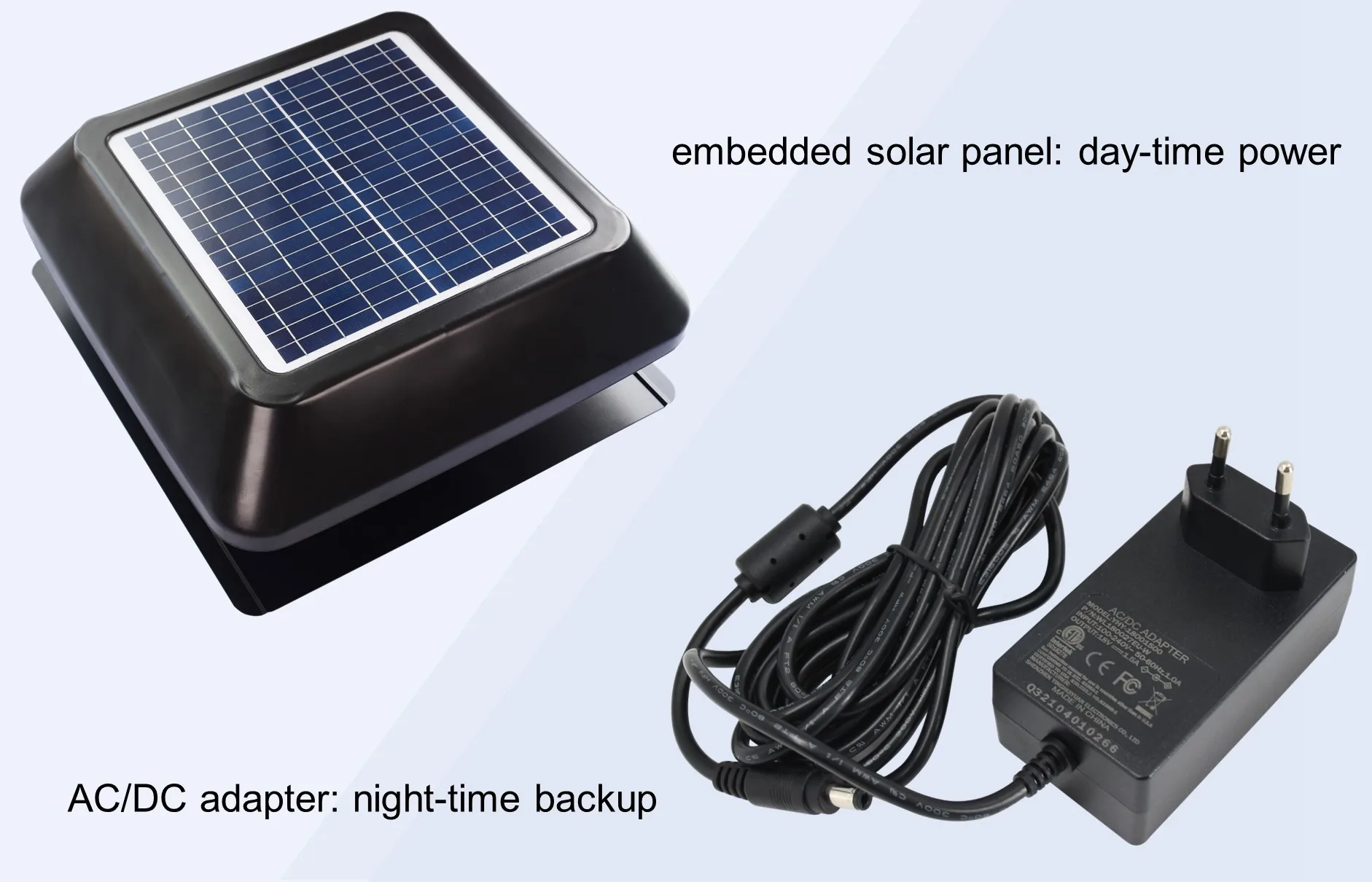

day: by 25W/21.6V mono solar panel
* embedded fixed on the fan cover, receives sunshine to power motor directly when sunlight is available
night: by 20.5V 1.5A AC/DC adapter
* plug to a wall socket by 3m cable, through connection with grid circuit to serve as energy backup when sunlight is unavailable
* embedded fixed on the fan cover, receives sunshine to power motor directly when sunlight is available
night: by 20.5V 1.5A AC/DC adapter
* plug to a wall socket by 3m cable, through connection with grid circuit to serve as energy backup when sunlight is unavailable
An inbuilt Smart Power Controller ensures 24 hours nonstop cooperating in a best way!
- you don't need to do any manual shifting operation
- you don't need to worry about any unnecessary energy consumption
Why SIPL
* Standardized Production with High Consistency!
Our solar fan productions run on a well scheduled line, with each fan part be tested before assembly & the fully assembled unit be futher 100% tested before package. This standardized production guideline brings our products a high consistency.
Our solar fan productions run on a well scheduled line, with each fan part be tested before assembly & the fully assembled unit be futher 100% tested before package. This standardized production guideline brings our products a high consistency.
We welcome customization services, and can share practical product application cases from customer experience.
Please don't hesitate to write us and discuss your project request: info @ sunnyintlpowerltd.com!
Industrial Machinery / Refrigeration And Heat Exchange Equipment / Ventilation Fans / Smoke Extractor Fan 12''
Quality & Warranty
|
Fan Host
|
designed lifespan > 20 years
|
warranty: 15 years
|
|
Fan Motor & Fan Blades
|
designed lifespan > 10 years
|
warranty: 5 years
|
|
Solar Panel
|
designed lifespan > 25 years
|
warranty: 15 years
|
|
AC/DC Adapter
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if Solar Battery Kit
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if Remote Controller
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
other electric components
|
designed lifespan > 10 years
|
warranty: 5 years
|
* the above warranty terms are based on the products be used in normal environments, no corrosive substance surrounded
roof turbine ventilator roof ball fan / smart toilet fan extractor / industrial smoke extractor / roof turbine ventilator exhaust fan
We aim to make our solar DC roof fan axial industrial chimney fan products reliable, practical & professional!
