JD350 JD500 Pan Mixer for Concrete and Soil Clay Brick Making JZC350 7.5KW Mixing Power 150s
JD350 JD500 Pan Mixer for Concrete and Soil Clay Brick Making JZC350 7.5KW Mixing Power 150s
Regular price
£4,884.93 GBP
Regular price
£0.00 GBP
Sale price
£4,884.93 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Products Description
JW series equipment can mix wet concrete, dry concrete, mortar, grout, etc. Manually operate and move easily. Quality reliable with long service life. Widely be used for the small or occasional construction projects.
The Pan Mixer machine is perfect for 2-3 persons construction crew. Why go through all the hassles of towing a mixer to the job site, when the machine can make a wheelbarrow of mortar, stucco, grout or dry pack mortar every 3 minutes.
We are the leading industries in the domain, engaged in offering Heavy Duty Ring Pan Mixer Machine. Our offered mixer machine is manufactured using the top quality material and latest technology. In order to meet all quality norms, our offered mixer machine is verified on numerous quality parameters. Customers can avail this mixer machine from us at reasonable rates.
The Pan Mixer machine is perfect for 2-3 persons construction crew. Why go through all the hassles of towing a mixer to the job site, when the machine can make a wheelbarrow of mortar, stucco, grout or dry pack mortar every 3 minutes.
We are the leading industries in the domain, engaged in offering Heavy Duty Ring Pan Mixer Machine. Our offered mixer machine is manufactured using the top quality material and latest technology. In order to meet all quality norms, our offered mixer machine is verified on numerous quality parameters. Customers can avail this mixer machine from us at reasonable rates.
Advantages
1. Strong power, uniform mixing, high production efficiency.
2. High efficiency of gear drive.
3. The mixing drum and feed hopper are made of thick steel plate, which is sturdy and durable.
4. Computer box control, automatic feeding, automatic water addition, regular stirring, and automatic discharging. Saving labor.
3. The mixing drum and feed hopper are made of thick steel plate, which is sturdy and durable.
4. Computer box control, automatic feeding, automatic water addition, regular stirring, and automatic discharging. Saving labor.
JW concrete pan mixer is a kind of automatic loading and compulsory mixer machine with vertical shaft. Materials are squeezed, turned, and discharged by vertical shaft with blades fixed in the mixing tank.
Specification
|
Item
|
JW350
|
JW500
|
JW750
|
|

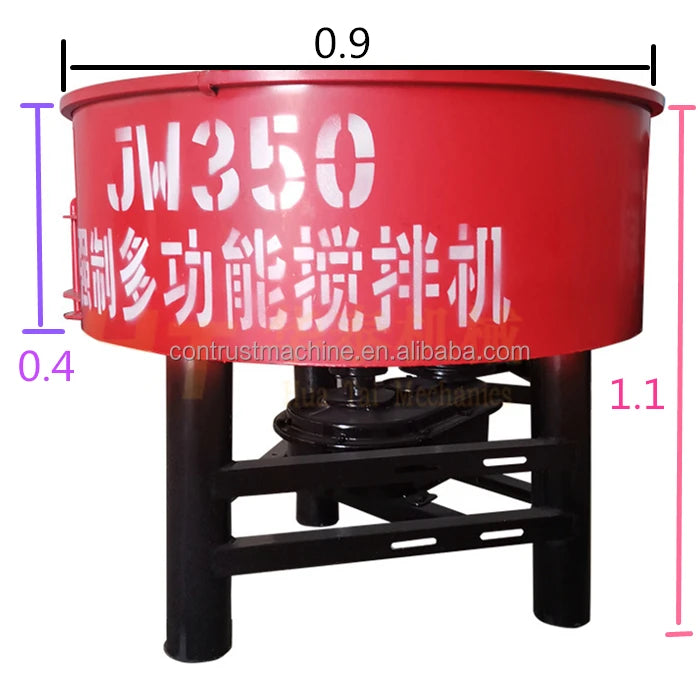

Size
|
0.9*0.4m
|
1.3*0.5m
|
1.5*0.5m
|
|
Motor power
|
4kW
|
7.5kW
|
11kW
|
|
Discharge capacity
|
350L
|
500L
|
750L
|
|
Productivity
|
9-12m³/h
|
18-25m³/h
|
25-37m³/h
|
|
Overall dimension
|
0.9*0.9*1.1m
|
1.3*1.3*1.3m
|
1.5*1.5*1.3,m
|
|
Mixing arm quantity
|
3
|
4
|
4
|
|
Weight
|
100kg
|
480kg
|
550kg
|
|
Rotate speed
|
21
|
40
|
40
|
Details Images
Copper motor
In order to stabilize the stirring speed, it will be equipped with a full-bridge reducer.
Reinforced thickened mix arm
It makes concrete mixing more adequate, and the mixing arm durable.
Discharge outlet
Thickened storage drums
