RK400-04 Water Supply System Pulse Output Rainfall Precipitation Sensor Rain Gauge
RK400-04 Water Supply System Pulse Output Rainfall Precipitation Sensor Rain Gauge
Couldn't load pickup availability
RK400-04 Water Supply System Pulse Output Rainfall Precipitation Sensor Rain Gauge

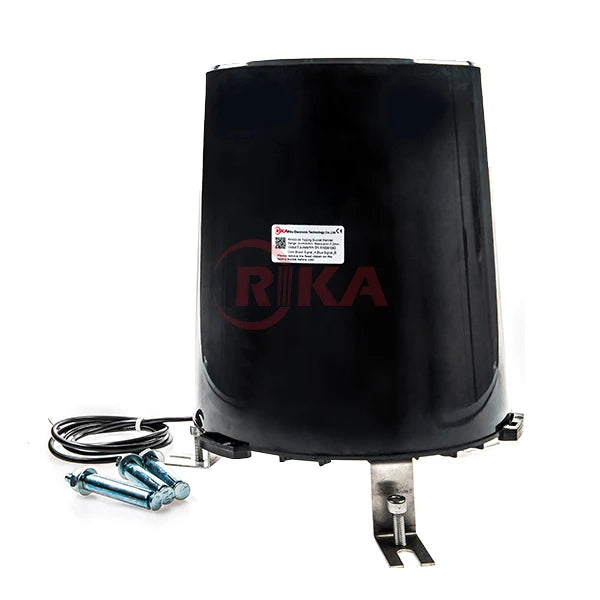

RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries .Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.
FEATURES
- Compact size for easy use
- High accuracy, good stability
-

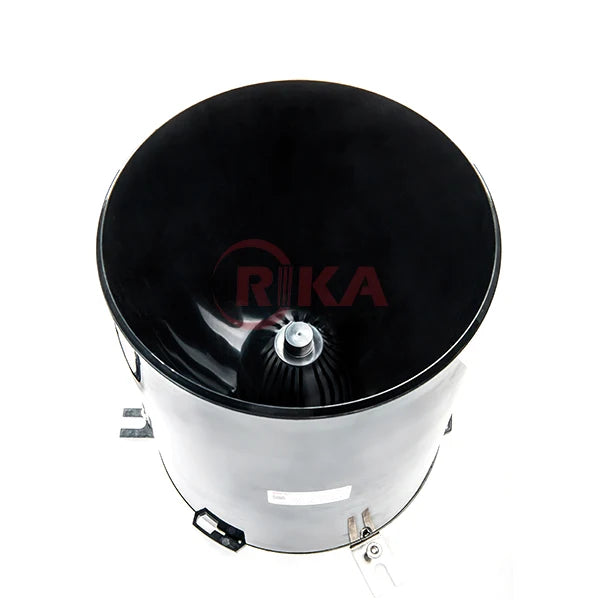

Mesh in the funnel preventing debris such as leaves and insects from entering the working of rain sensor

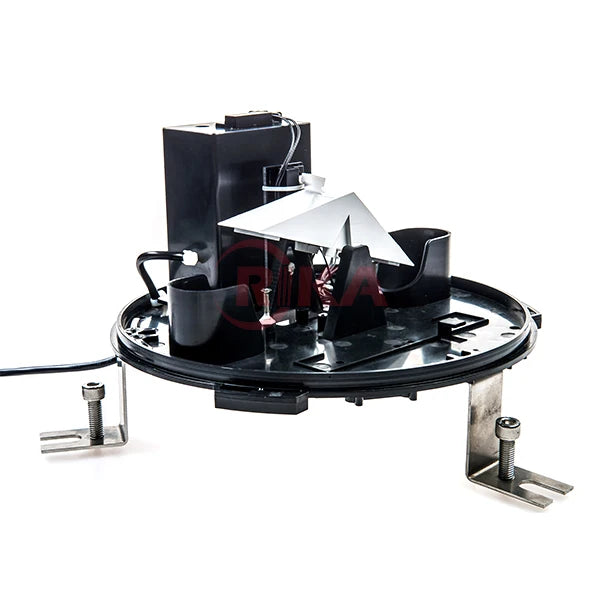

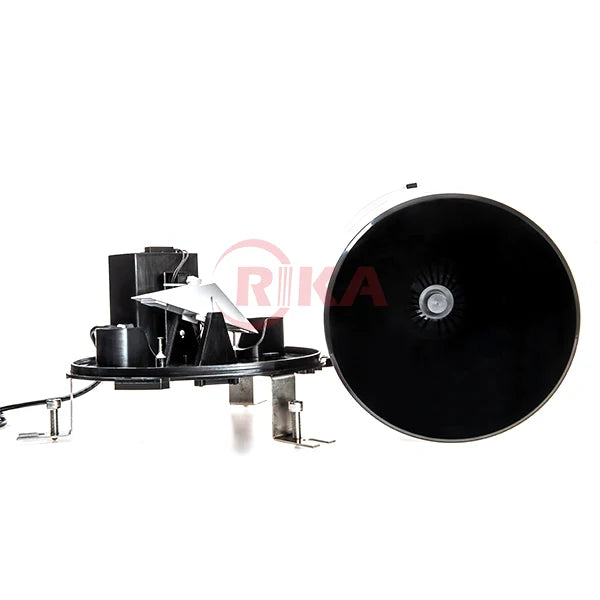

- Well made tipping bucket with low resistance
- The main body made of high strength ABS
- Horizontal Bubble in the bottom
-
Outlet with insect-proof screen

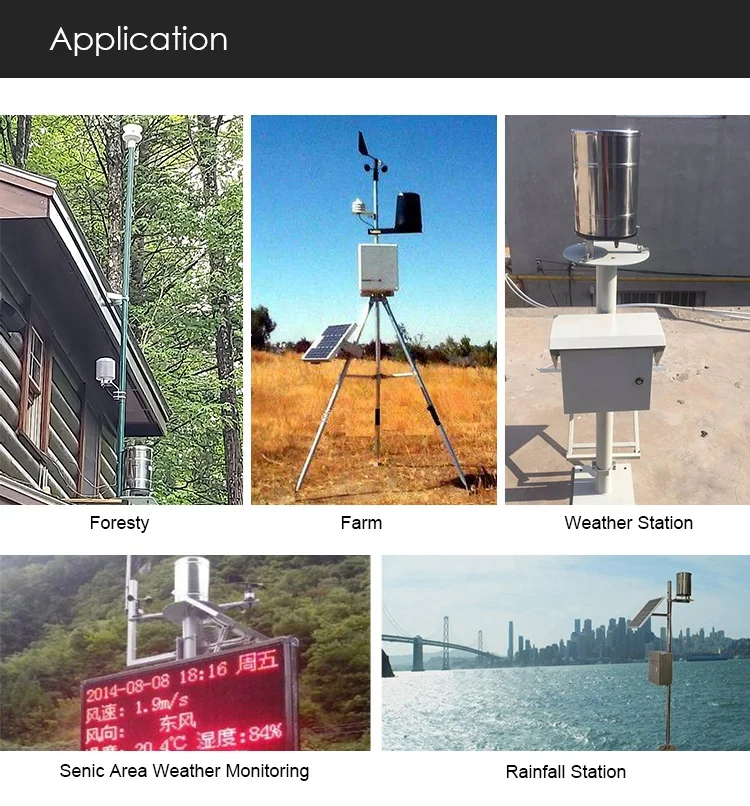

APPLICATION
- Meteorology
- Agriculture and forestry
- Environmental protection
- Marine
- Airports, ports
- Scientific research
SPECIFICATION
| Item |
Specification |
| Collector |
Diameter :φ200mm, height: 271mm |
| Measured rainfall intensity |
Max: 4mm/min |
| Allow rainfall intensity |
Max: 8mm/min |
| Accuracy(2mm/min) |
±4% |
| Maximum load voltage |
30VDC(pulse output) |
| Maximum load current |
20mA |
| Operating temperature
|
0-60℃@0%-100%RH |
| Rainfall collector & tipping bucket: ABS, Supporting leg:304SS |
|
| 2.5kg |
In order to recommend proper products to you, please tell me your information below:
In order to send specific price to you, please tell me your information below:
1. What’s your required output signal ? -- We have pulse & RS485 optional. Please specify.
2.What’s your required power supply ? -- If pulse output, no power supply is required. If RS485 output, the supply is 12v or 24v optional, please specify.
3.What’s your required cable length ? - The standard is 1.5m. If you have special demands, please specify.
4.Quantity?
5.Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address & post code for freight calculation.
6.Your complete company name,address, post code,contact person, tel, fax etc.
