SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Certification: CE

Battery Type: LiFePO4, Lithium iron phosphate

Model Number: ESS10

Brand Name: DHC

Place of Origin: Jiangsu, China

Output Power Range: 5~10 kWh

Dimension (L*W*H): 630*425*620mm

Weight: 122kg

System Type: Stackable

Communication Port: CAN, RS232, RS485

Grid connection: Off grid, Hybrid grid

Keywords: solar battery 10kwh power battery energy storage system container

Cell capacity: 104Ah

Battery module: 5kwh

Pack quantity: 2 pcs

Rated voltage: 48V

Cycle: 5000+

Warranty: 5-10 Years

Dear friends, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! Sincerely hope that I can provide you with satisfactory products and services, if you have household photovoltaic and other related problems, welcome your consultation! Mobile: +86 18711146837 Phone: +86 18711146837 WeChat: +86 18711146837

Product Description

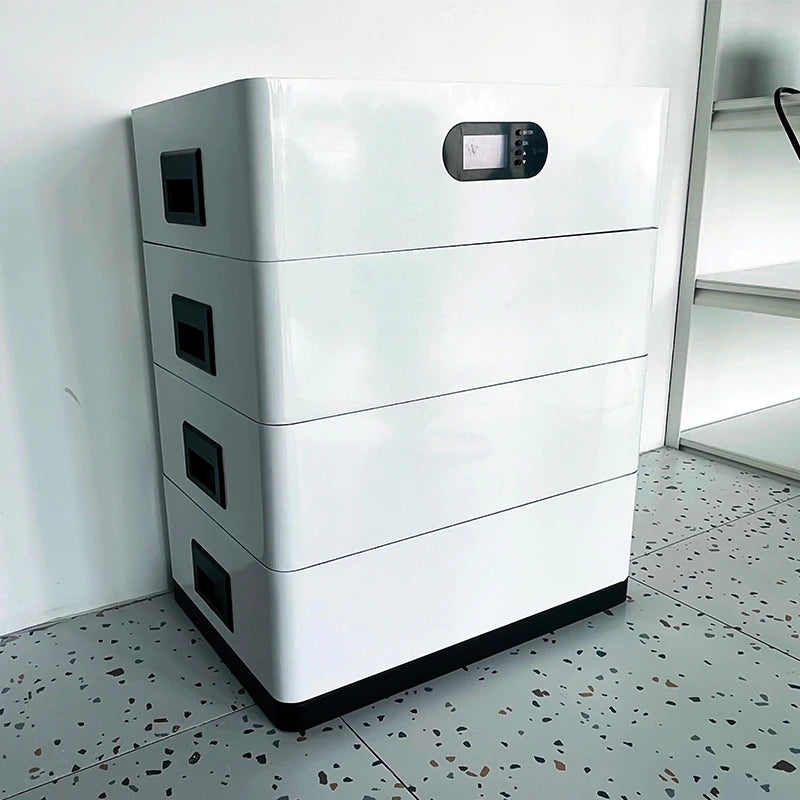

Smart stackable price 48v 200ah lifepo4 solar battery 10kwh power battery energy storage system container

This energy storage battery is mainly composed of high-quality lithium iron phosphate battery module and intelligent PDU.

When there is sufficient sunlight during the day, the excess power generated by the rooftop photovoltaic system will be stored in the energy storage system, and the energy from the battery is released at night to supply power for household loads, so as to achieve self-sufficiency in household energy management, the economy of the new energy system is greatly improved.

At the same time, in case of sudden power outage/power failure of the power grid the energy storage system can take over the electricity demand of the whole house in time. With a single energy storage battery capacity of 5kwh and a maximum stacked capacity of 20kwh, the system can be used seamlessly with mains equipment such as photovoltaic power generation, as well as with a UPS to provide a stable power supply for home.

Specification

Model	ESS10	ESS15	ESS20
Battery Type	Lithium iron phosphate			15S1P	15S1P
Cell capacity	104Ah			4.8KWh	9.6KWh
Battery module	5kwh			40.5-54VDC	40.5-54VDC
Stacking capacity	10kwh	15kwh	20kwh
Pack quantity	2 pcs	3 pcs	4 pcs
Dimension	630*425*620mm	630*425*800mm	630*425*980mm
Weight	50A	50A	50A
Max. discharge current	122kg	172kg	222kg
Cooling method	Natural cooling
Depth of discharge	95%
Rated voltage	48V
Working voltage range	40～52.5V
Max. charge current	50A
Max. discharge current	50A
Battery module weight	50kg
Battery module size	630*425*180mm
Communication	Default:RS485/RS232/CAN     Optional:WiFi/4G/Bluetooth
Operating temperature	-10℃-55℃			400*230*585mm	400*230*610mm
Storage temperature	-10℃-55℃			500*290*630mm	460*250*650mm
Degree of protection	IP20			42kg	102kg
Cycles	≥5000*			50kg	112kg
Voltage, capacity, size/color customization, OEM/ODM services can be provided according to customer needs

Product Show

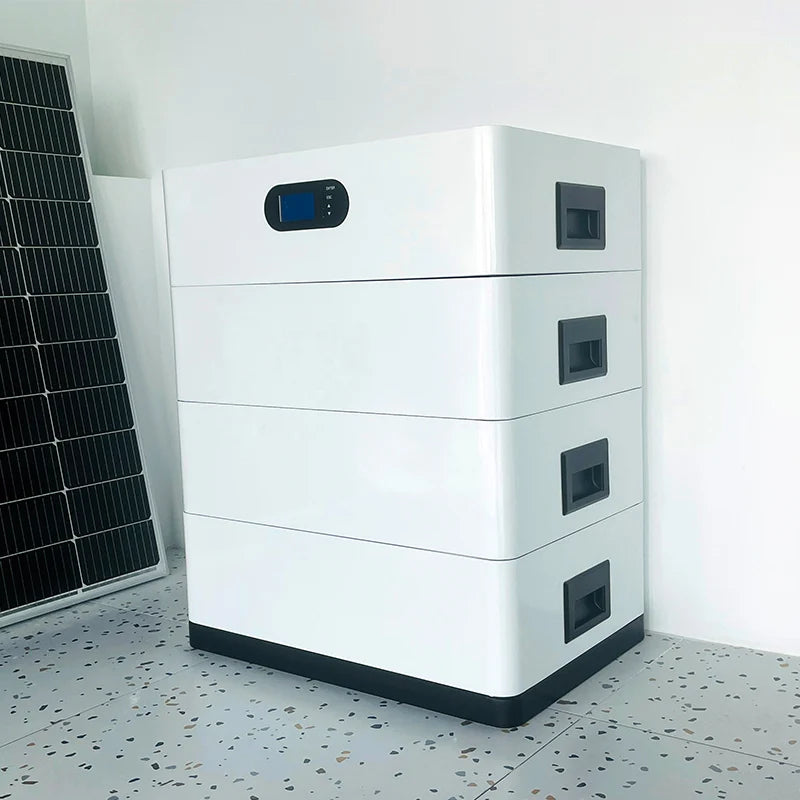

Home energy storage system

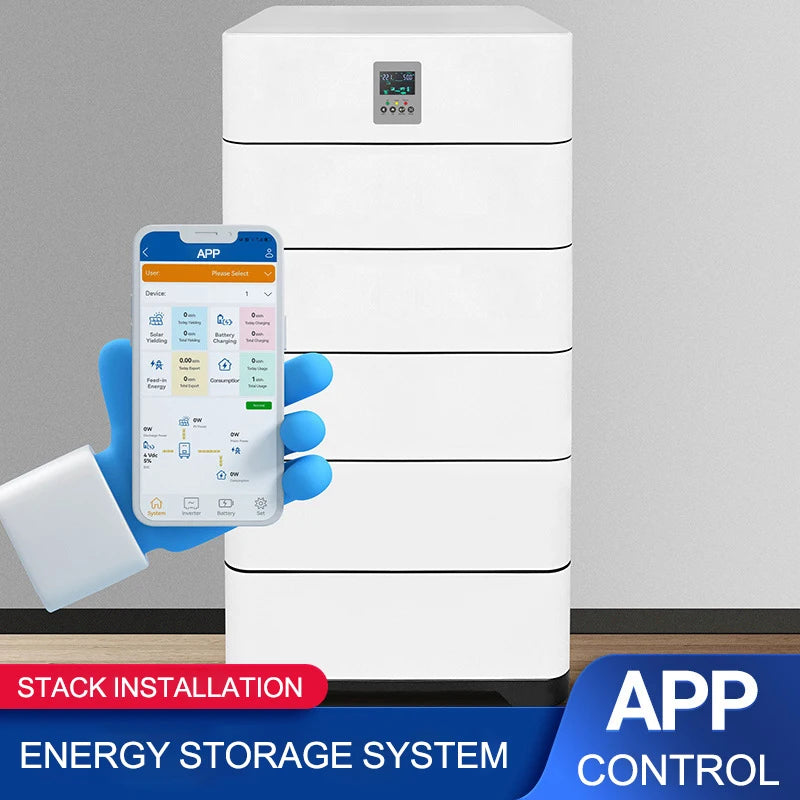

-Chinese and English summary display or summary SOC, running lights, warning lights and other information -Summarize the switch of lifepo4 battery to realize one-button switch ALL -Automatic dial-up between pack groups of lifepo4 battery is realized, without manual setting -Bluetooth + Wifi solution, can be viewed and operated remotely, through mobile APP -Multi-cluster parallel operation, supporting up to 32 battery packs in parallel

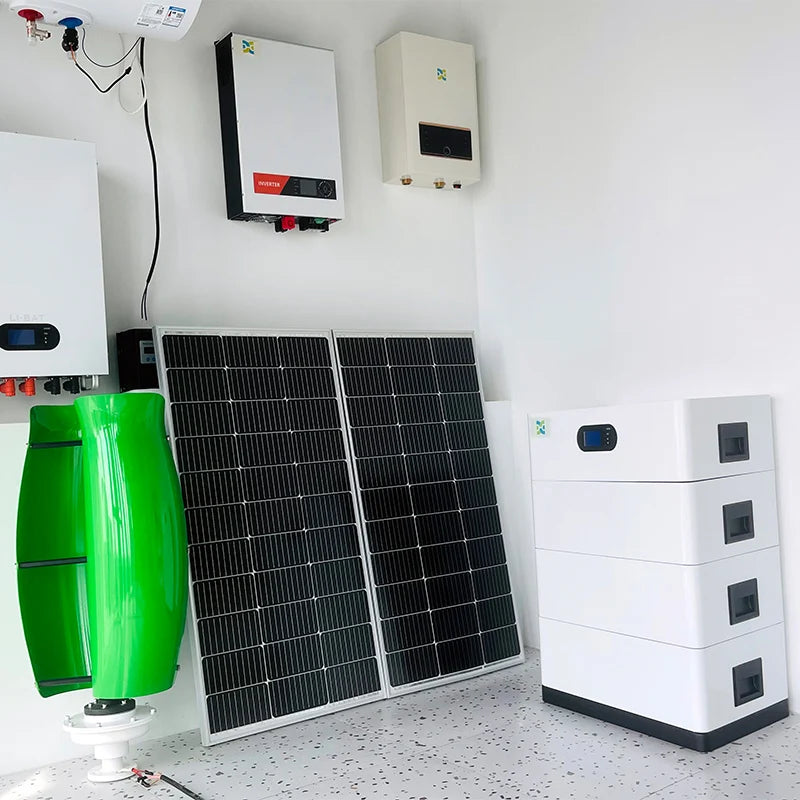

Solar Wind Hybrid Power System

Application Scenarios

Company Profile



Jiangsu DHC environmental SI-Tech Co., Ltd

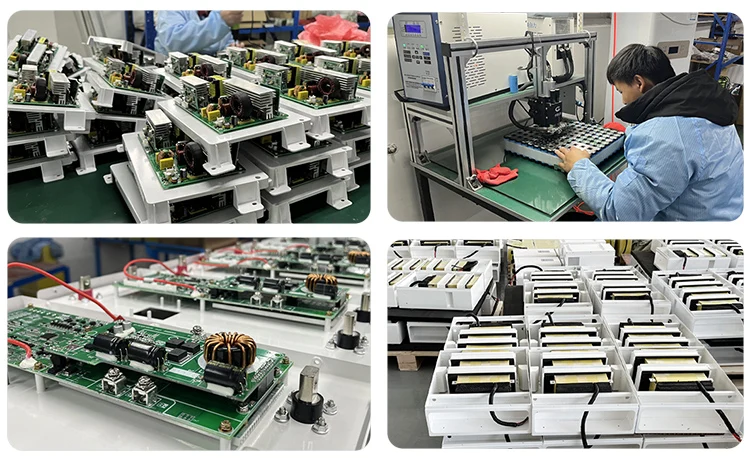

Jiangsu DHC Environment Si-Tech Co.,Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.

Packing & Delivery
