Solar Battery Powered Green Energy 0 Cost 14'' Roof Extractor Vent Poultry Farm Ventilation Eco Fans Attic Gable Air Exhaust Fan
Solar Battery Powered Green Energy 0 Cost 14'' Roof Extractor Vent Poultry Farm Ventilation Eco Fans Attic Gable Air Exhaust Fan
Regular price
£1,390.92 GBP
Regular price
£0.00 GBP
Sale price
£1,390.92 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
SIPL Comprehensive & Innovative Solar Ventilation Exhaust Fans

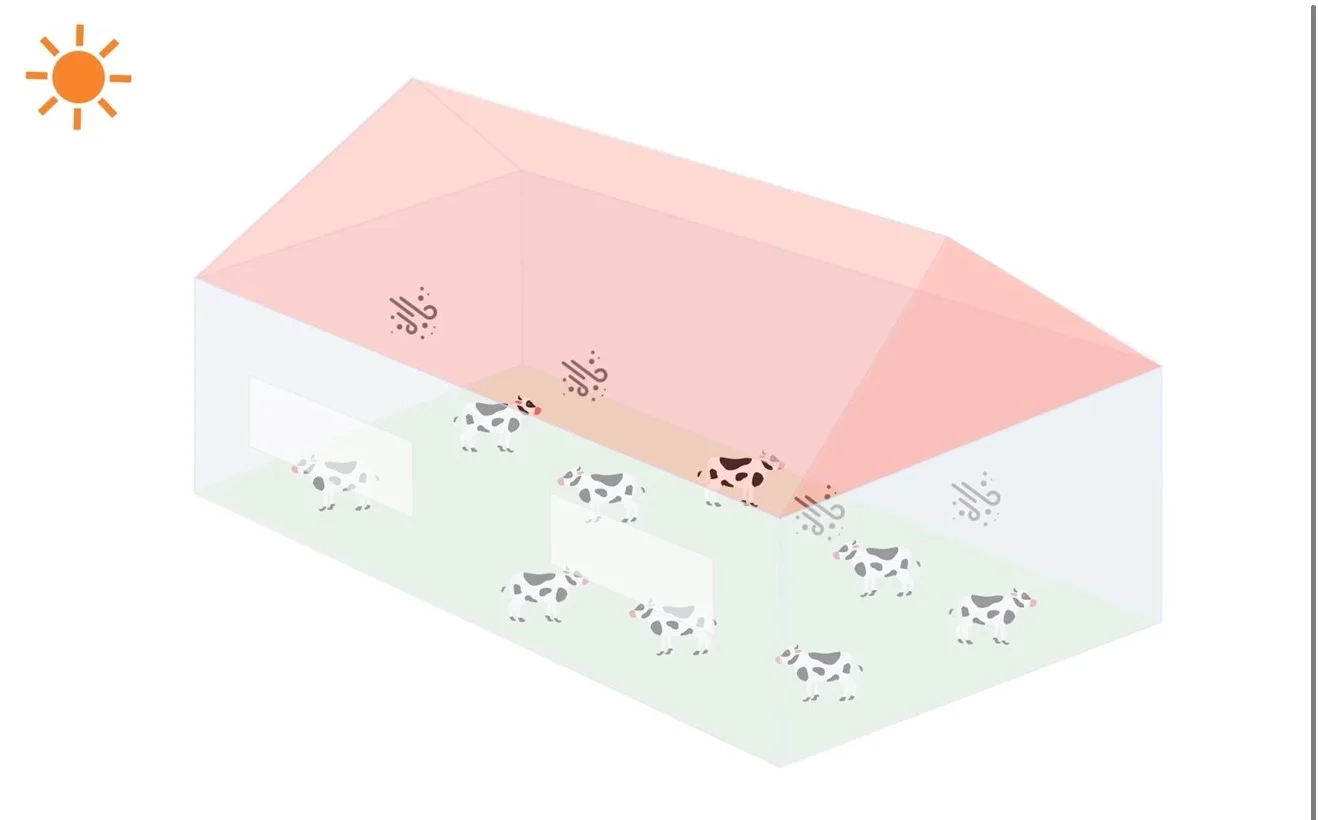

Having been a strong & experienced & of far sight seeing solar manufacturer in the ventilation industry since from 2012, we make our solar fans into a comprehensive series that they cover your different demands either for roof / wall / ceiling mounting, or for day time heat extraction / day-night time continuous air circulation, or for home / factory / greenhouse / poultry farm / water tank / dome tent / storage cotainer heat exhaust use, etc.
And, to better suit such various ventilation demands, our solar fan series include different size / power options that a smaller power one is enough for a small space application, while a bigger power one or more pieces together is recommended for a large space application!

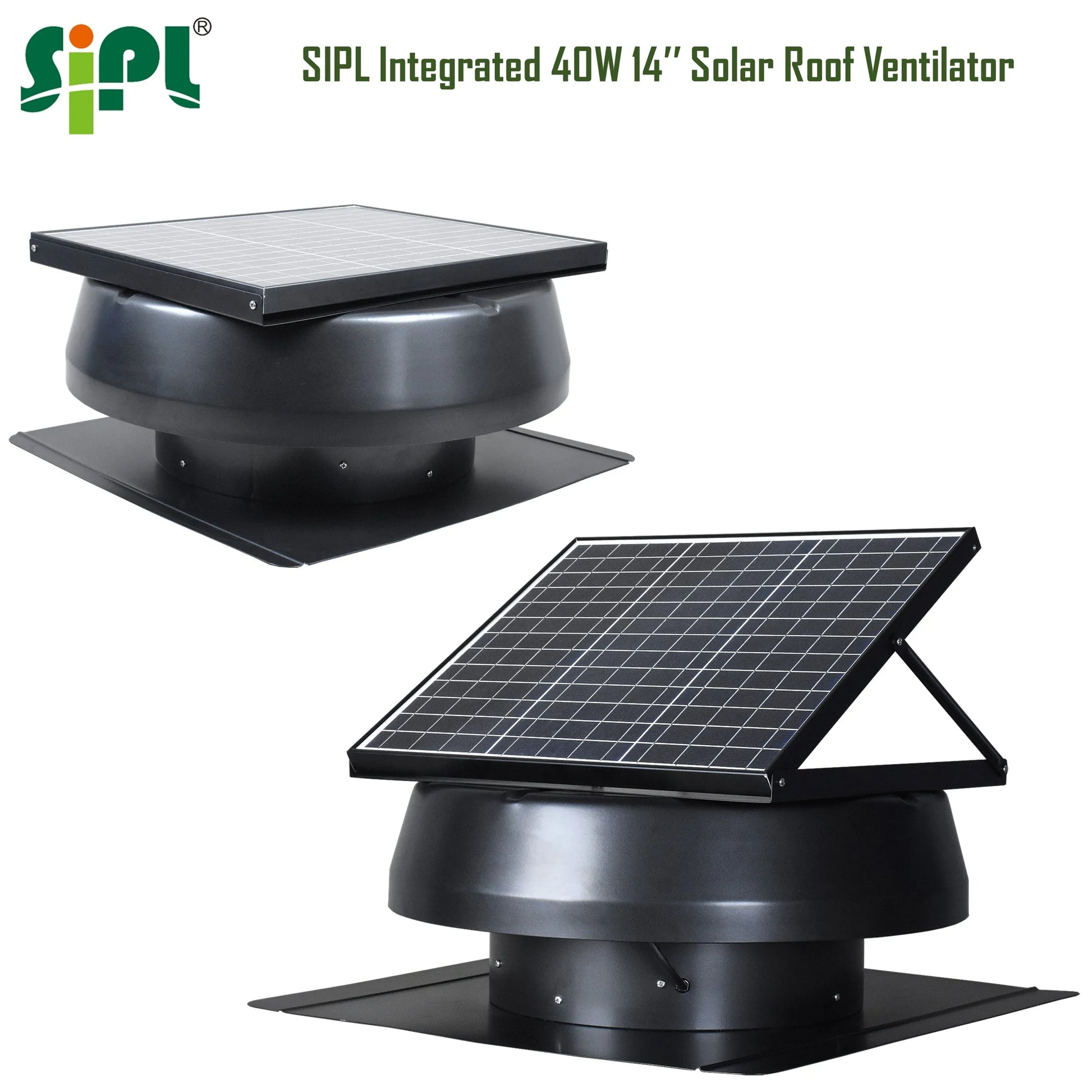

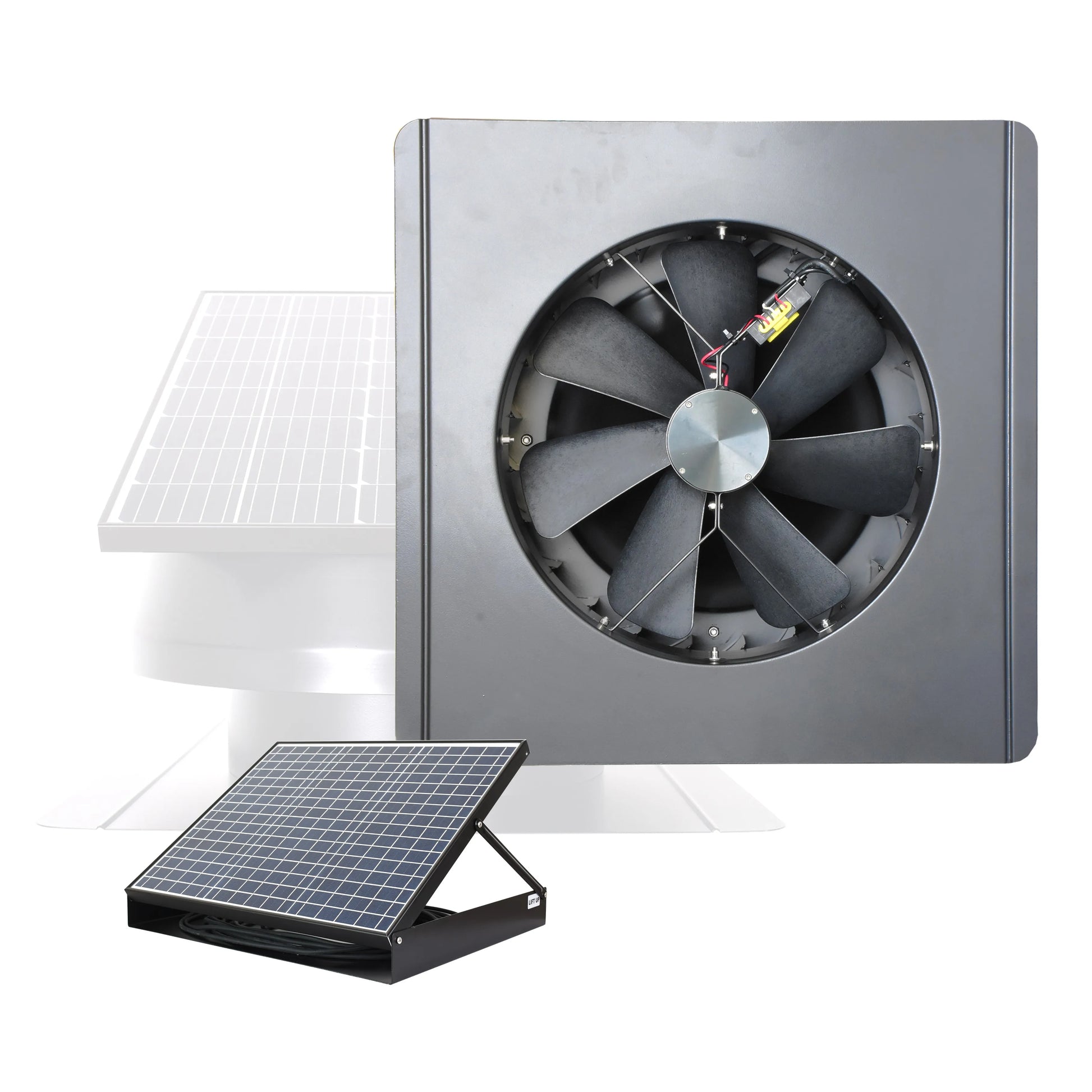

SN2016010+SN2015024: 40 watt 21 volt round shape Solar Rooftop DC Ventilation Fan with Battery & 14 inch
axial flow type fan blades, to run nonstop in any sunny & sunless moment time

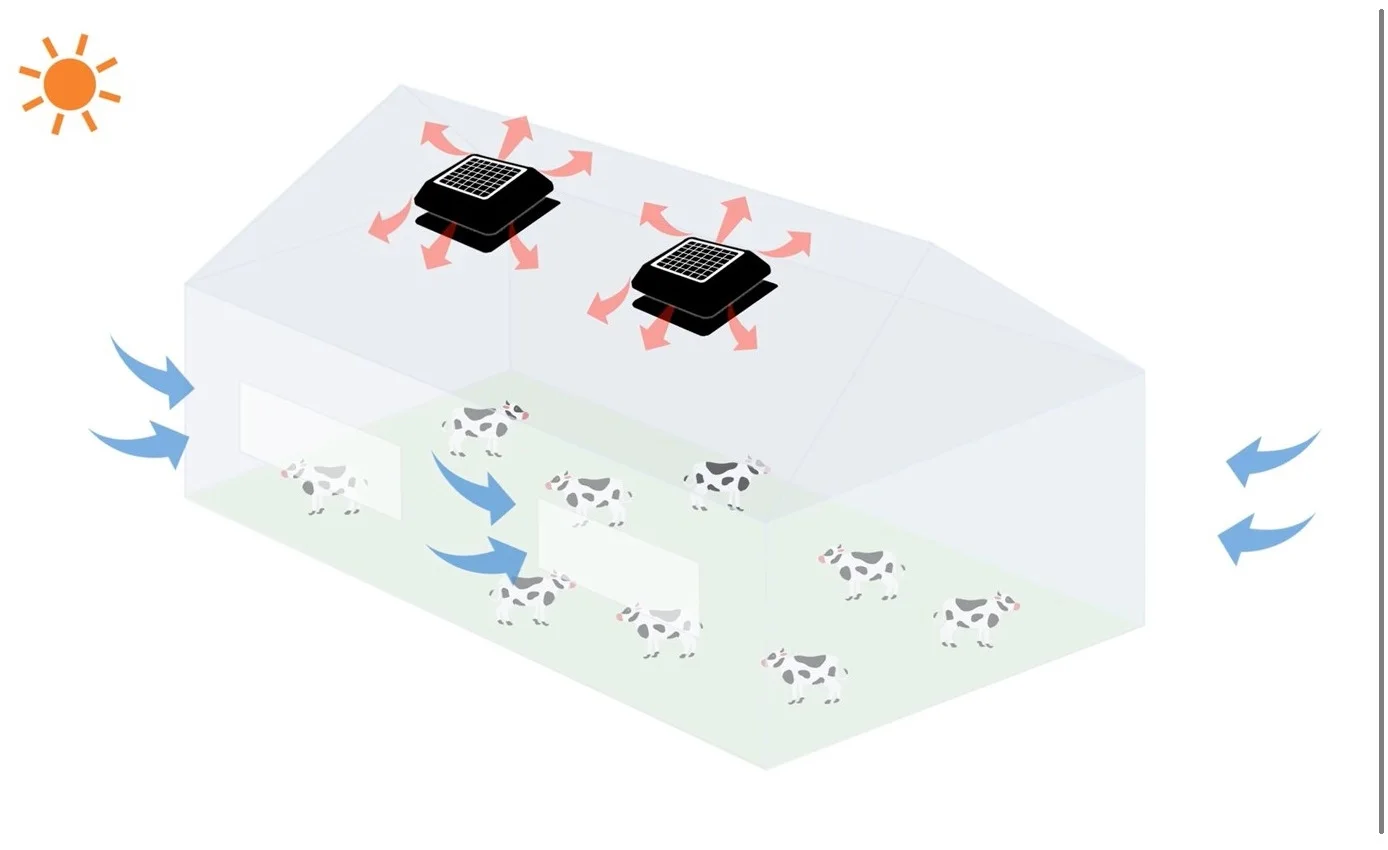

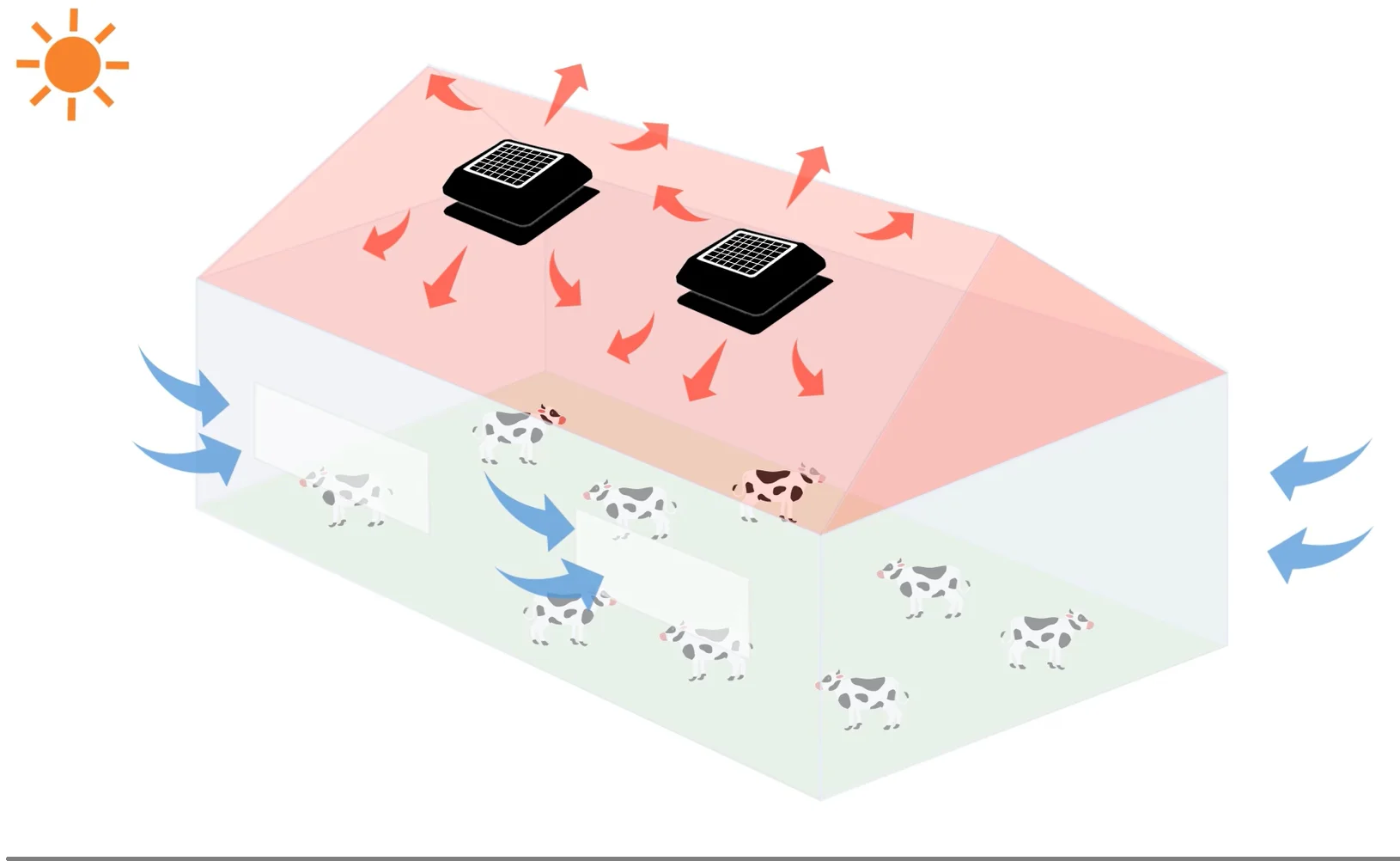

This solar roof ventilation fan (also home solar system air exhaust fan / battery powered extractor fan / DC motor fan ceiling vent / gable air vent attic solar extractor / gable vent fan / solar extractor heating vent kit / solar fan kit hot air exhaust fan / solar DC fan roof extractor fan industrial / solar ventilator fan / gable vent fan solar 40 watt / top roof solar air conditioner industrial roof extractor fan / solar roof extractor fan / roof air exhaust fan, etc.) is an amazing day-night-nonstop & smart vent unit that includes a solar battery kit to realize free energy backup even in night time periods, say this HVAC (Heating, Ventilation and Air Conditioning) system is 24 hours and absolutely solar panel powered off-grid!
Such easy compact solar device makes it convenient to take advantage of free solar energy in our daily life and work, allowing savings of up to 100%.
It Serves Well Everywhere, Suits All Kinds of Building Installation, and Go Green Life with us throughout 24 hours!
Solar roof vent fan
"We are 100% Reliable Manufacturer and Look High into the Product Qualities & Utilities!"
general electrical & mechanical parameters:
|
Fan Cover
|
dia.530mm Round shape, galvanization steeling with outdoor standard powder coating
|
|
Solar Panel
|
40W/21V, polycrystalline cells, 495*495*25mm tilting & angle adjustable;
serve as main power when sunlight is available
|
|
Wind Guide Cone &
Wind Guide Blades
|
SIPL patented ventilation structure;
benefits for a higher air extraction efficiency
|
|
Air Duct
|
14'', dia.368mm
|
|
Fan Motor
|
IP68 brushless DC motor (SIPL patented fan motor)
|
|
Fan Blades
|
14'', 7 blades, nylon-fiber-aluminum compound unique fan blades
|
|
Fan Base
|
600*600mm Square shape & flat, detachable from fan host, galvanization steeling quality
|
|
Fan Host Size
|
600*600*255mm (when solar panel is fixed horizontally)
|

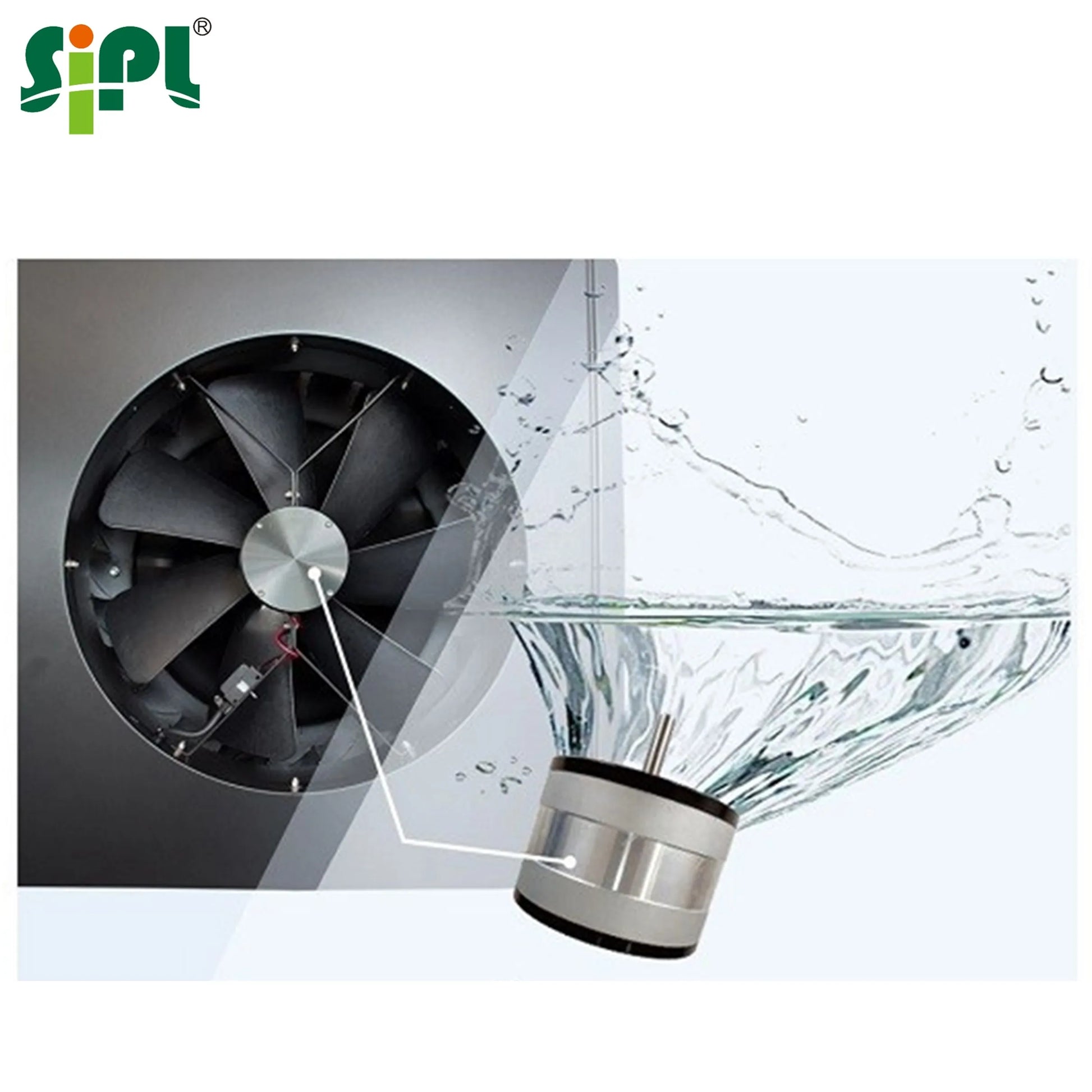

Unique Brushless DC Motor:
Our solar attic fan poultry farm fan will start and keep running once sunlight is available, own to it is equipped with a best motor. This engine is IP68 waterproof, to assure the fan be suitable to install anywhere:
High Efficiency + Unique Waterproof
* The high energy efficiency feature in our motor supports the fan start running once solar panel input reaches 9V in the morning, and it keeps running until solar panel output drops down to 9V in the afternoon!
Patented Ventilation Structure:
Our solar fan vent is an axial flow type roof ventilator, but it is made with a 360-degree swirl turbin air ventilation structure to guarantee no backward air flow from the exterior. This is essential & beneficial:
Wind Guide Baldes + Fan Blades
* The wind guide cone with 24pcs wind guide blade structure is held a patent by us, to effectively support the interior hot air be extracted out and no any counterforce to reduce the fan efficiency!
* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan system with better performance and in quieter operation!
* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan system with better performance and in quieter operation!
Reliable Product Performance at Easy Installation:
Being a self-contained solar ventilation roof fan, our equipment will work friendly & reliably after you put it onto the building roof. Moreover, own to good product strucure and off-grid solar feature, our solar vent would effectively reduce the possible maintenance trouble for you in future, while be suitable to use anywhere.

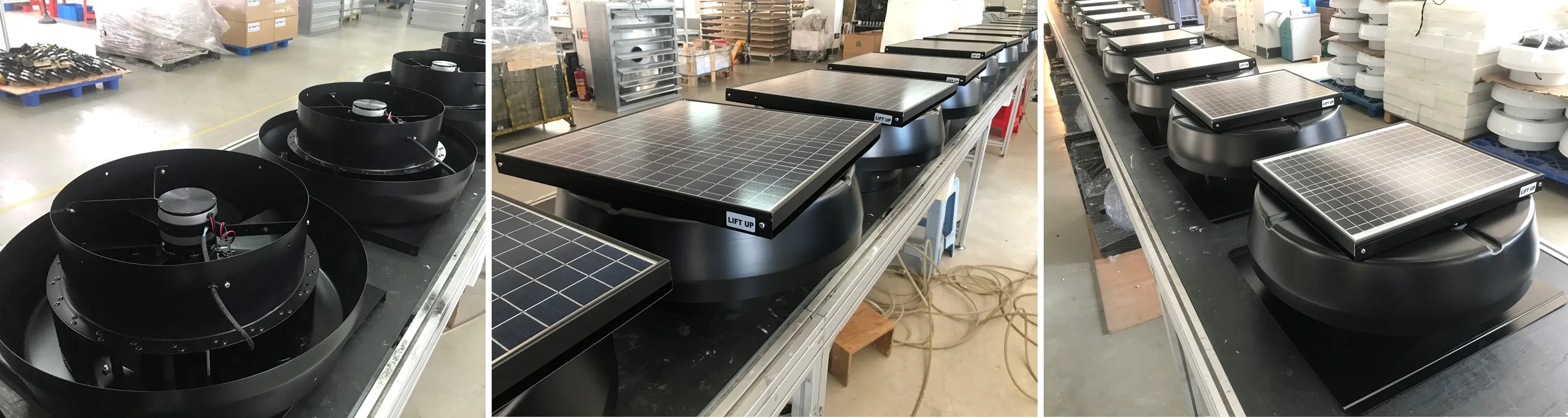

Our solar fan productions run on a well scheduled line, with each fan part be tested before assembly & the fully assembled unit be futher 100% tested before package. This standardized production guideline brings our products a high consistency.

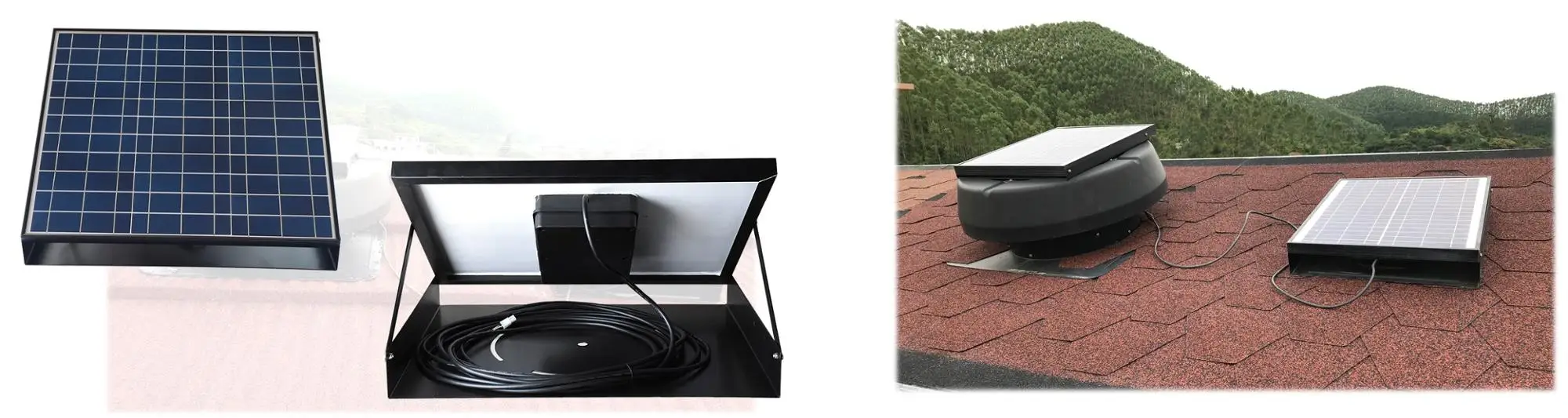

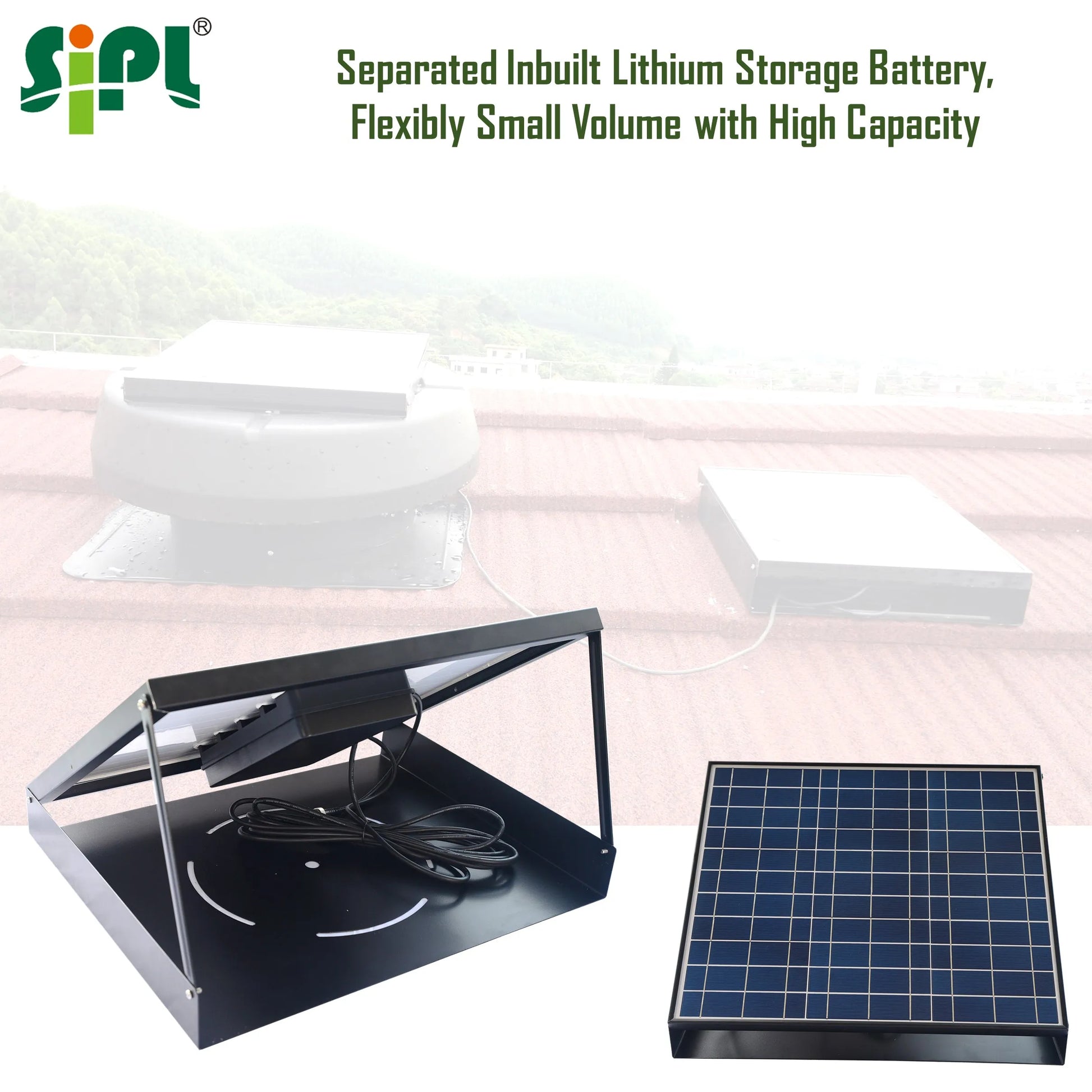

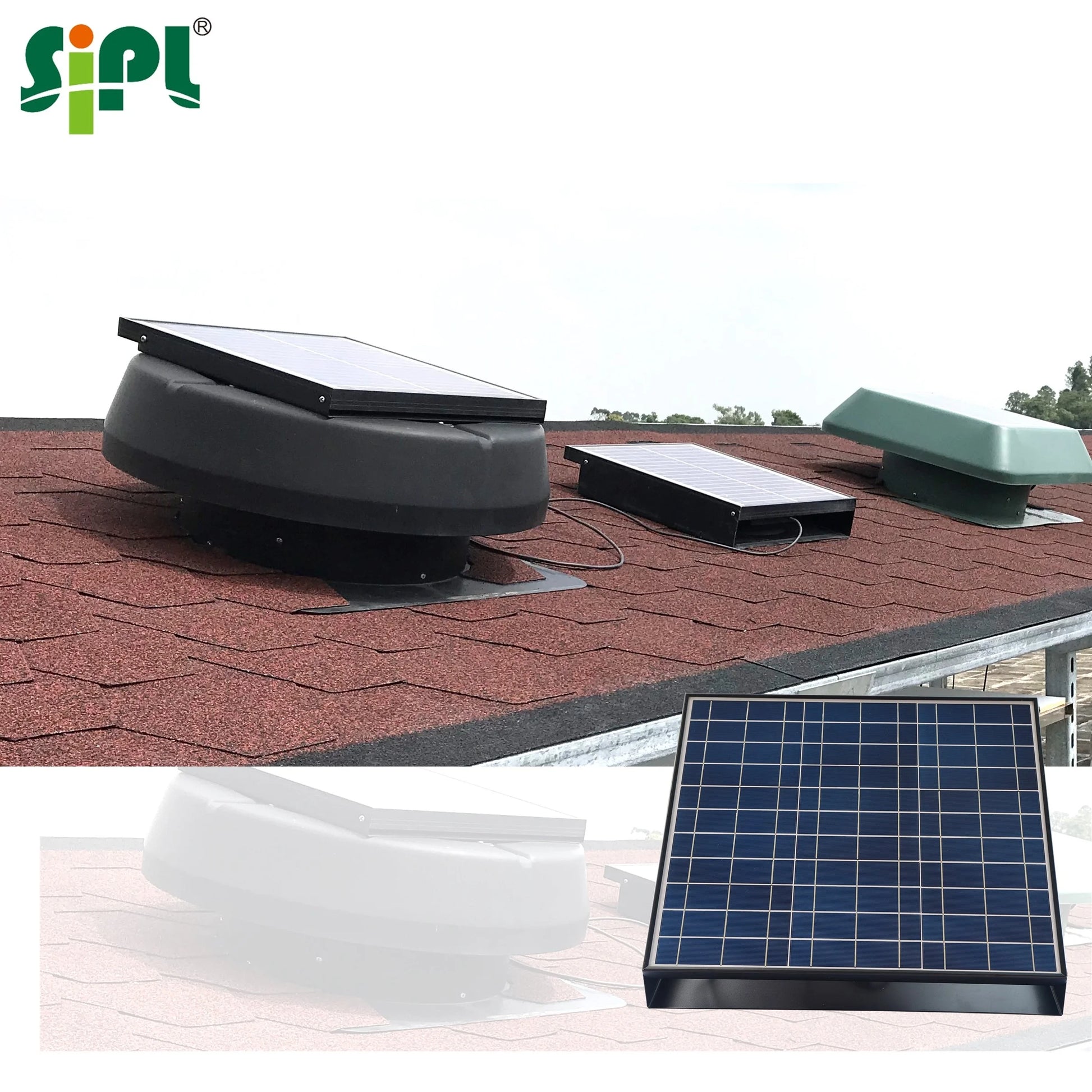

Solar Battery System
general electrical & mechanical parameters:
|
Solar Panel
|
40W/19.5V, monocrystalline cells, 415*495*25mm tilting & angle adjustable
|
|
Battery
|
9.6Ah*16V, high quality lithium storage battery;
can be charged full in about 5.5 strong sun hours during day time;
can backup the fan for 23 sunless hours (discharge only when the fan's PV output is insufficient)
|
|
Dimension
|
415*500*67mm (when solar panel is fixed horizontally)
|
|
Cable
|
include 3m cacle to connect solar battery kit with solar fan
|
Attention: Given sunlight condition varies in different areas, a different solar battery kit is available to customize for you, aiming to have battery be sufficiently charged enough in day-time to backup the fan's night-time rotation!
------
Alternative AC/DC Adapter Kit can also Run the Solar Fan Nonstop ------
If grid electricity is available in the application site, and you have budget on the product cost, you can take AC/DC Adapter instead of Solar Battery to also realize the fan nonstop running at night:
* AC input is suitable 100~240V
* DC output is maximum 18V 1.5A
* plug to a wall socket
* DC output is maximum 18V 1.5A
* plug to a wall socket
* cable length: 3m
* ultra-high level 6 energy efficiency, standby power consumption is less than 0.075W
* ultra-high level 6 energy efficiency, standby power consumption is less than 0.075W
model: SN2016010+SN2013016
Smart Power Controller:
When our solar fan is to connect with a solar battery kit (or AC/DC Adapter) for day-night air ventilation, a Smart Power Controller is inbuilt to automatically take care of all power supplies between its solar panel & battery (or AC/DC Adapter), and you don't need to do anything nor worry about how to have the fan run by solar panel at sunny hours while by battery (or AC/DC Adapter) in sunless periods!
24 hours nonstop cooperating in a best way:
* if the fan's solar panel is supplying direct power at X%,
* battery (or AC/DC Adapter) will be only at (100-X)%
* this smart controller also
includes remote control receiver to support the fan be turned on/off by remote controller
* to turn off/on the fan immediately
* can turn off the fan automatically after a set 2Hrs/4Hrs operation time
* each time of remote setting is valid for 12 hours only, and the fan then will automatically resume nonstop running
* can turn off the fan automatically after a set 2Hrs/4Hrs operation time
* each time of remote setting is valid for 12 hours only, and the fan then will automatically resume nonstop running
* to replace the old type Cable Cord with Switch
Extra Accessories
* if the solar fan is wanted a Fan Guard to protect fan blades & to prevent small animals entering into the house, 2 kinds options (Metal Circle Fan Guard, or Aluminum Mesh Fan Guard) would be available for your selection
* Different Fan Bases are also available to make the solar fan installation be a lot easier
* of course, other customization services are welcomed
Quality & Warranty
|
Fan Host
|
designed lifespan > 20 years
|
warranty: 15 years
|
|
Solar Panel
|
designed lifespan > 25 years
|
warranty: 15 years
|
|
Fan Motor & Fan Blades
|
designed lifespan > 10 years
|
warranty: 5 years
|
|
Solar Battery System
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if AC/DC Adapter
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if Remote Controller
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
other electronic components
|
designed lifespan > 10 years
|
warranty: 5 years
|
* the above warranty terms are based on the products be used in normal environments, no corrosive substance surrounded
