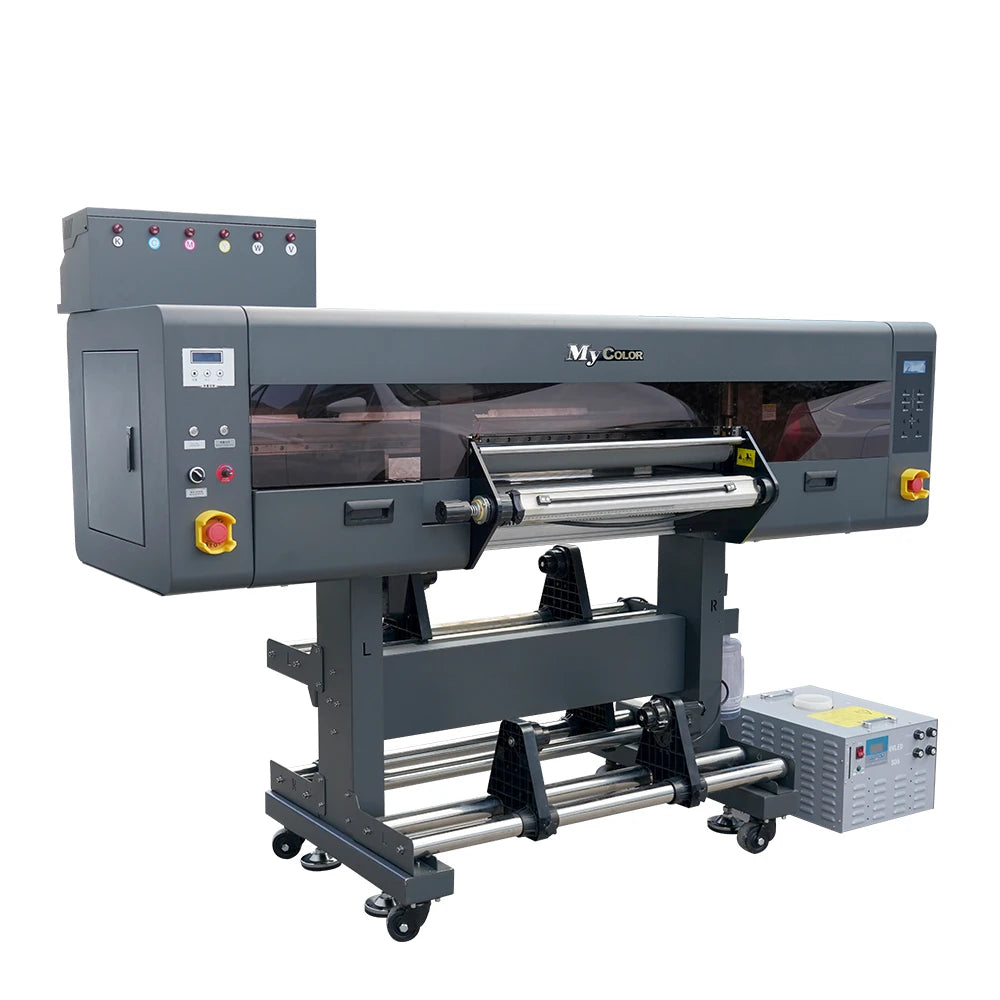

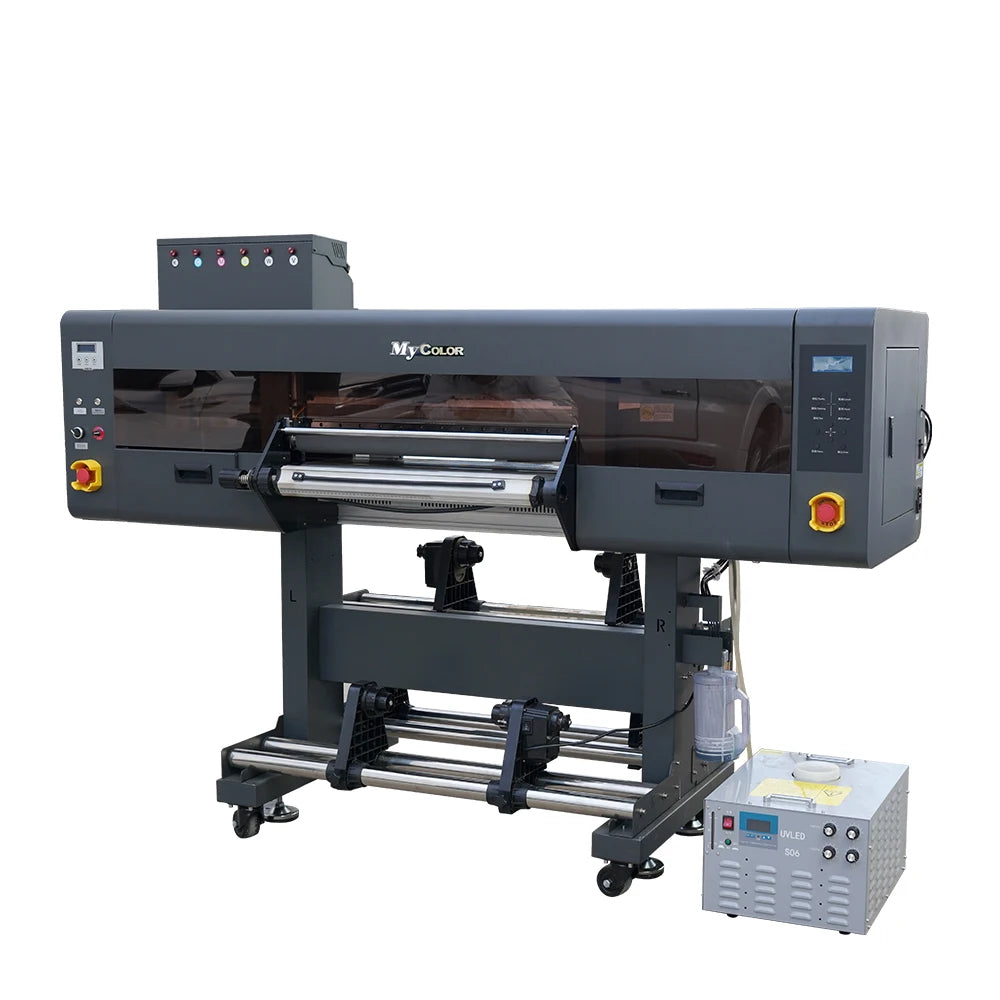

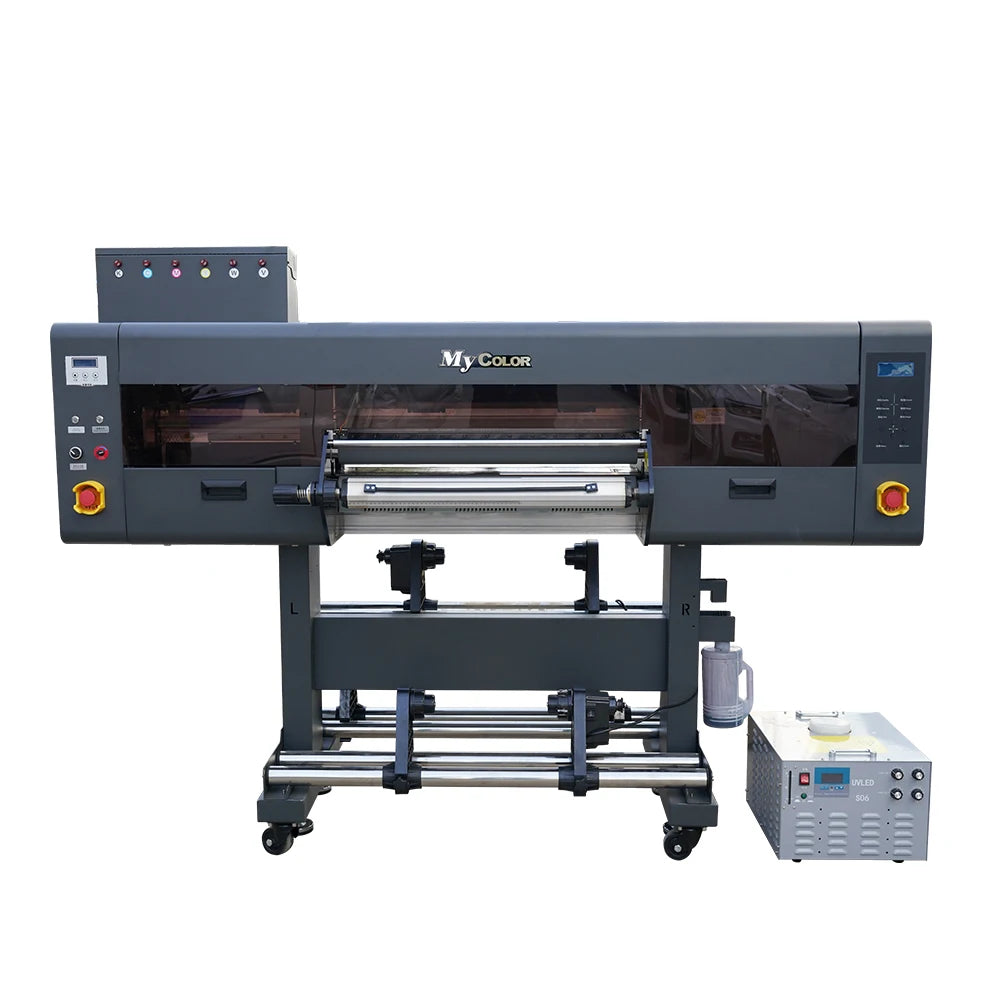

UV DTF printer with transfer film 3D effect 60cm roll to roll uv dtf printer sticker dtf uv printer
UV DTF printer with transfer film 3D effect 60cm roll to roll uv dtf printer sticker dtf uv printer
Couldn't load pickup availability
Product Application
The digital UV flatbed printer is the latest UV machine from Audley company. This model is designed for industrial bulk production with high printing speed, which can print on almost any material directly. With UV light irradiating during printing procedure, images on object surface are cured immediately and Scratch resistance.
|
SPECIFICATIONS FOR AUDLEY UV FLATBED PRINTER
|
||||||
|
Printer heads
|
Item NO.
|
i3200
|
||||
|
Number
|
3 print heads
|
|||||
|
Top printed resolution
|
720*2400DPI
|
|||||
|
Medium
|
Medium thickness
|
cm
|
15
|
|||
|
Medium compatibility
|
Any print media
|
|||||
|
Medium variety
|
Glass/metal/Acrylic/ceramic/leather/wood/PVC/ABS/plastic/etc
|
|||||
|
Power
|
Power consume
|
W
|
1200
|
|||
|
Power Supply
|
AC
|
110/220V,50/60HZ
|
||||
|
Power connector
|
Three-socket
|
|||||
|
Operation environment
|
Temperature
|
Degrees
|
20-28
|
|||
|
Humidity
|
RH
|
40-60
|
||||
|
Ink
|
Ink color
|
76colors
|
CMYK+W+varnish
|
|||
|
Ink type
|
UV Ink
|
|||||
|
Ink supply system
|
Continuous ink supply system
|
|||||
|
Ink capacity
|
1000mL of each bottle
|
|||||
|
Ink consume
|
10-30mL per color for 1 sqm
|
|||||
|
Print area
|
Max printing area
|
cm
|
60
|
|||
|
Image format
|
BMP/TIFF/JPG/EPS/PDF/CAD/PSD
|
|||||
|
Drying system
|
LED UV lamp cured
|
|||||
|
Connect
|
Network
|
|||||
|
Language
|
Chinese/English
|
|||||
|
Printing software/RIP
|
Photoprint
|
|||||
|
Warranty
|
one year except print heads
|
|||||

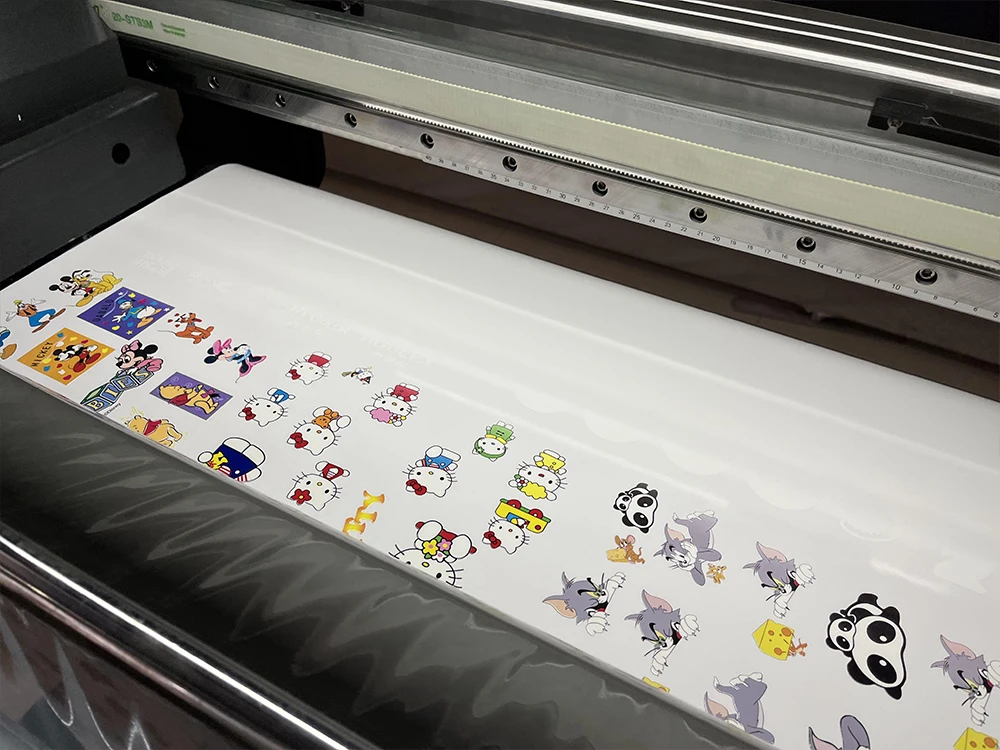

AB film sticker
Flatbed vacuum .
1.Full-aluminum flatbed
2.Hiwin guide rail
3.anti-collision device to protect print head
Three print heads option.
1.Three i3200U1 print heads
2.One head for CMYK color ink
3.One head for White ink
4.One head for Varnish
5.Color ink, white and varnish jet same time
Application
Audley UV flatbed printers are widely used in a variety of industries.UV printer Direct printing on glass, wood, Stone, metal, plastic, leather, ceramic, Acrylic etc. Direct to carpet, glass, plastic etc printing, professional RIP software and stirring apparatus. provided. Large size printing.
Advertising industry:ABS, Polyurethane, PET, Acrylic,MDF,PVC,etc. For signs, banner, backlight, tags, etc.
Leather indusctry: Authentic leather, fake leather, PU, etc. For shoes, bags, cases, etc
Background Wall: Glass,tiles,Aluminum,wood,papaer,etc
Furniture industry:Wood,Glass,etc.For Cupboard,Sofa,Doors,etc.
Electronic Accessories:Mobile phone cases,Inductrial products cases,etc
Gifts Printing:Plastics,USB memory card,Stone,Pens,Name card case,Glass arms, wrist watch belt, wrist bands, etc
Decoration:Exhibition stand decoration, home decoration, wallpaper, hoted decoration

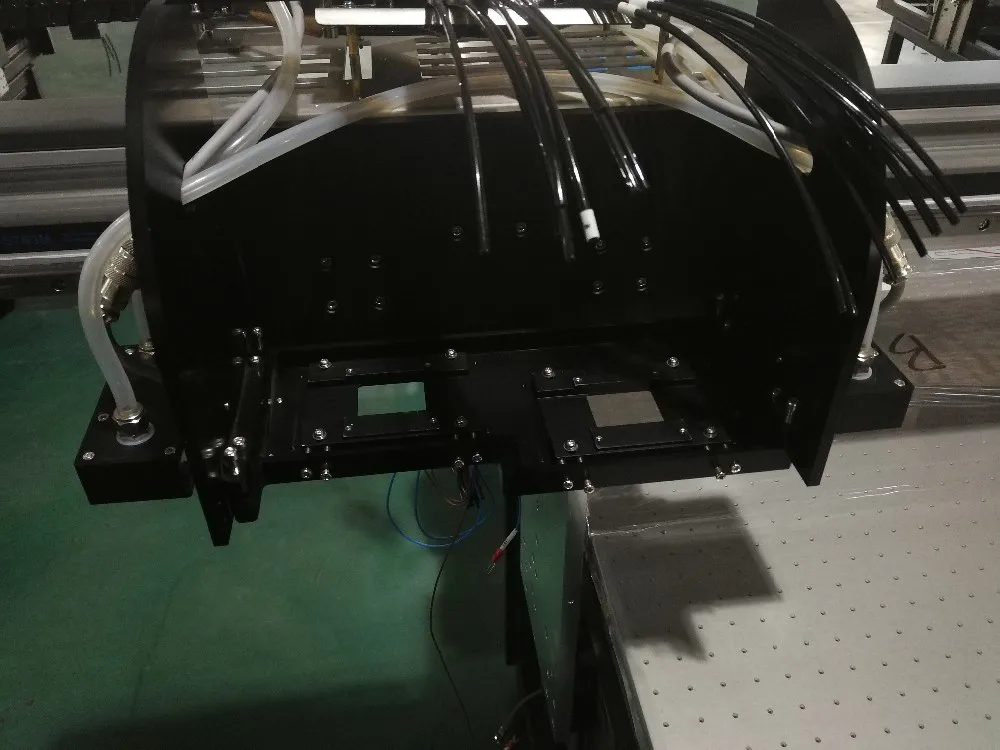

Print heads
Name: i3200 print heads
Original: Japan
1)Three i3200 print heads,
2)Color ink and white ink is printed at the same time.
3)300*8=2400 nozzles make top 720*2400 DPI.

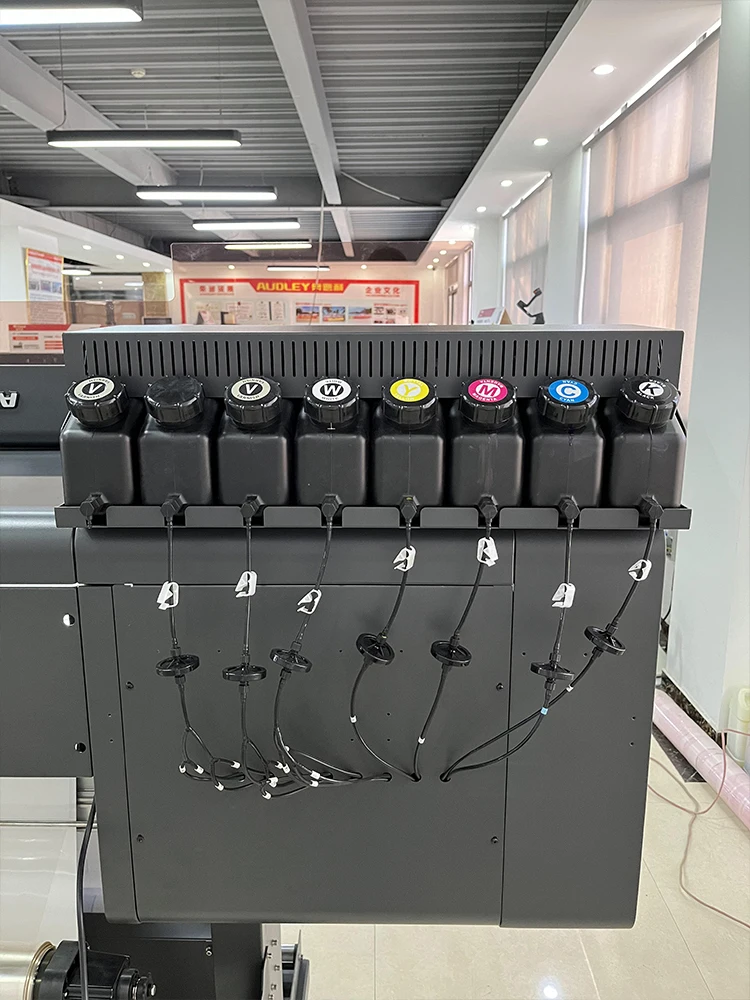

Ink supply
Name: Ink tank
Original: China
1)1000mL per tank make sure long time ink supply
2)CMYK+W ink+varnish
3)Motor on white ink tank,Auto-alarm device 4.ink shortage alarm
1)Three one-piece LED UV lamps,High efficiency
2)Industrial Water cooler system
3)Cured UV ink immediately
4)Direct print on almost all materials; Waterproof, UV Proof, Scratch proof; High resolution.
Name: Guide rail
Brand:Hiwin
Original: Taiwan
1)The guide rail is Hiwin from Taiwan which is high precious.
2)Belt is from Germany,good quality.
3)High precious raster, 180 per inch.

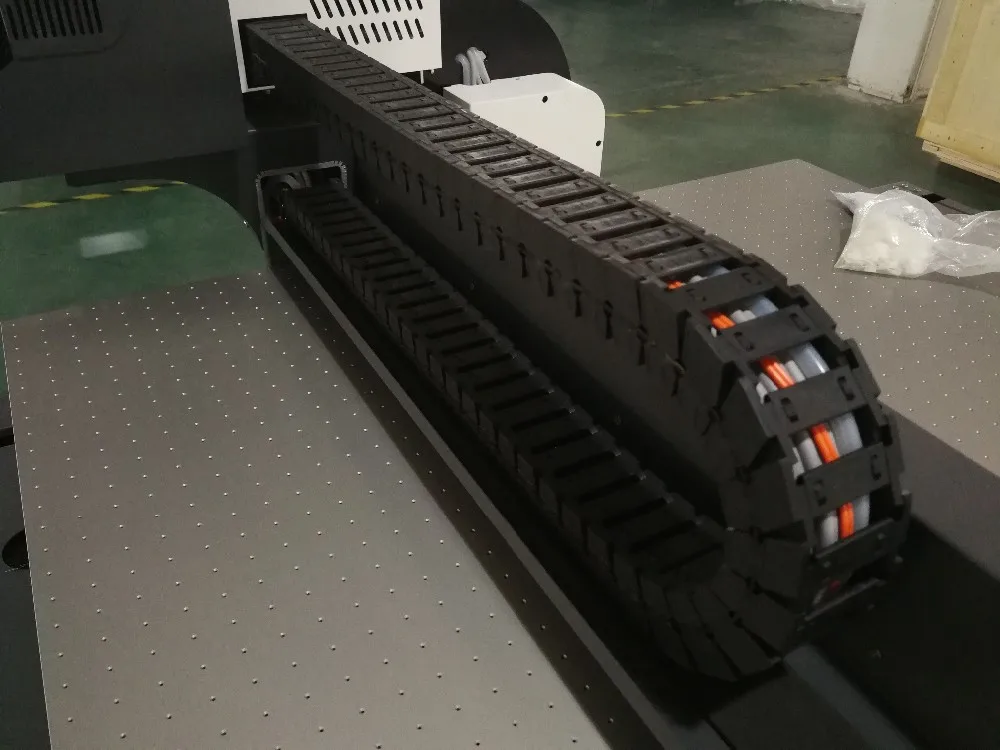

Chains
Name:Chain
Original:Germany
1)Import chain protect data line,uv line and cooler tube.
2)fold 10000000 times
