Wholesale Automatic single barrier gate swing turnstile dc brushless anti-collision swing turnstile pcb
Wholesale Automatic single barrier gate swing turnstile dc brushless anti-collision swing turnstile pcb
Couldn't load pickup availability

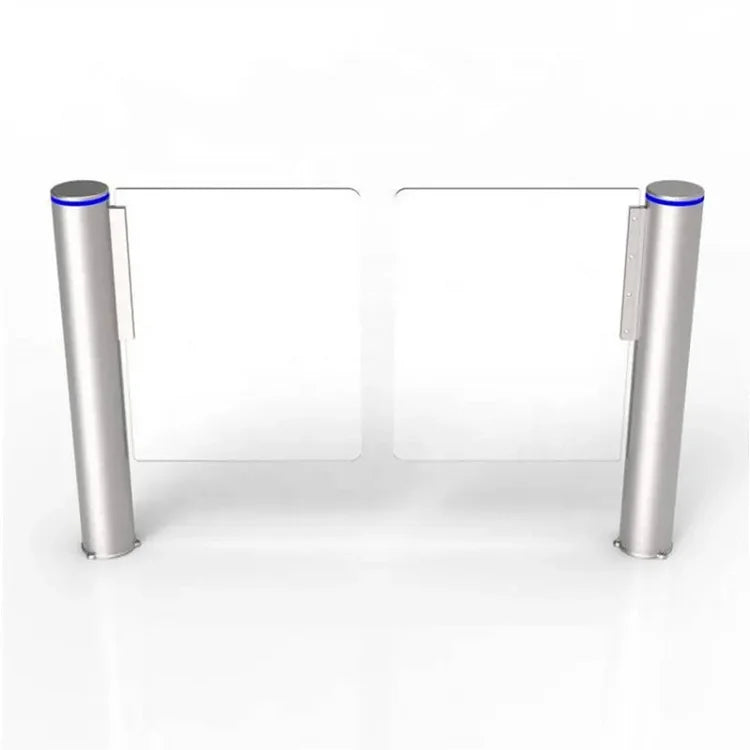

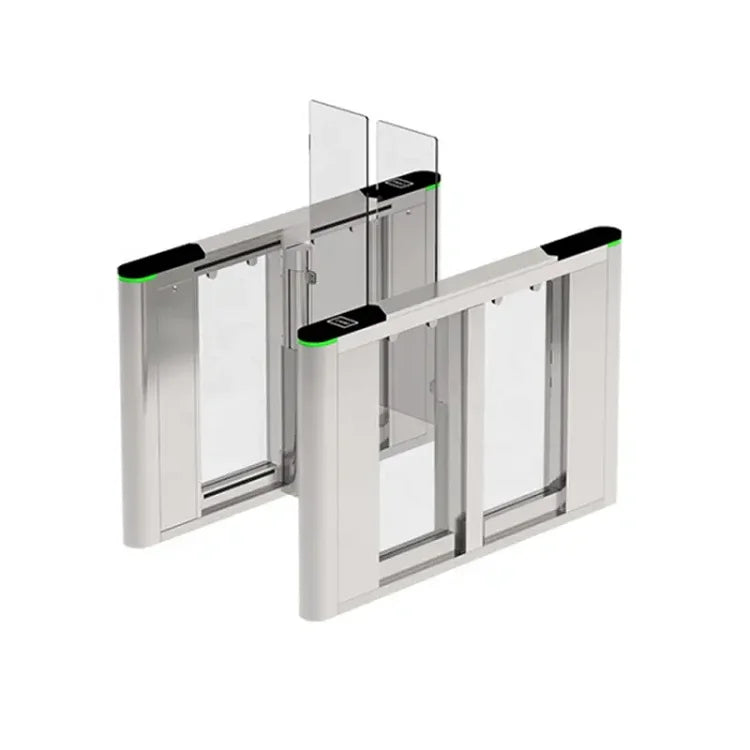

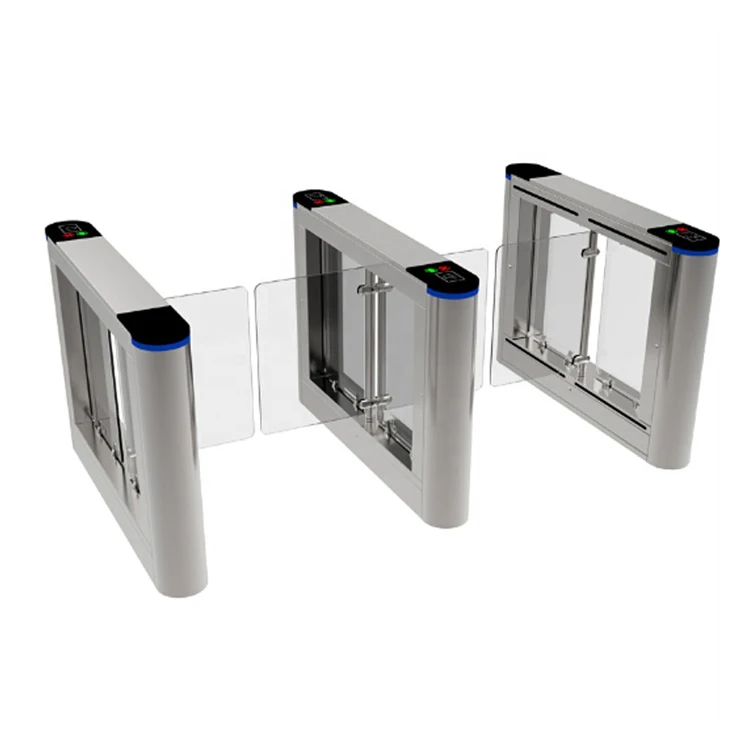

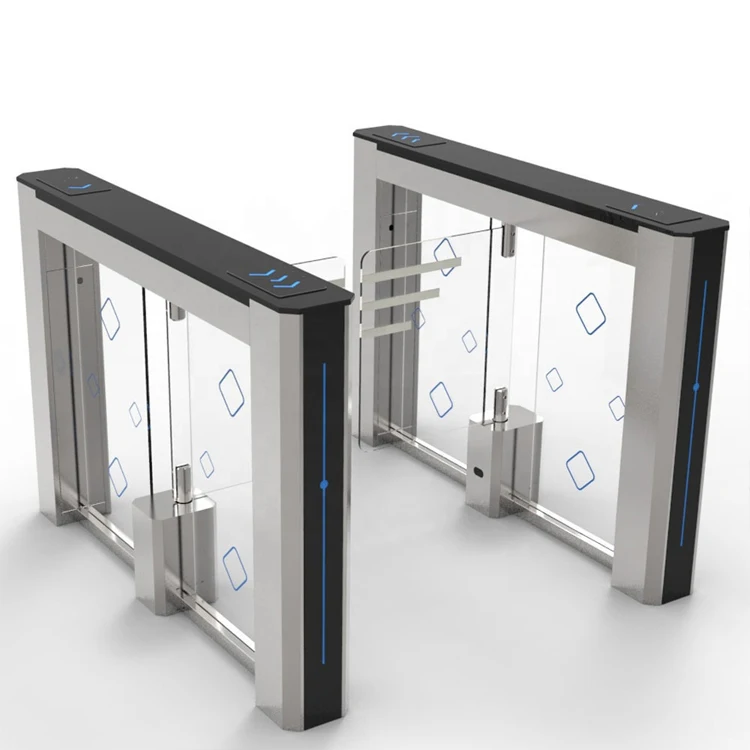

Wholesale Automatic Recognition Barrier Smart Speed Gate Swing Turnstile

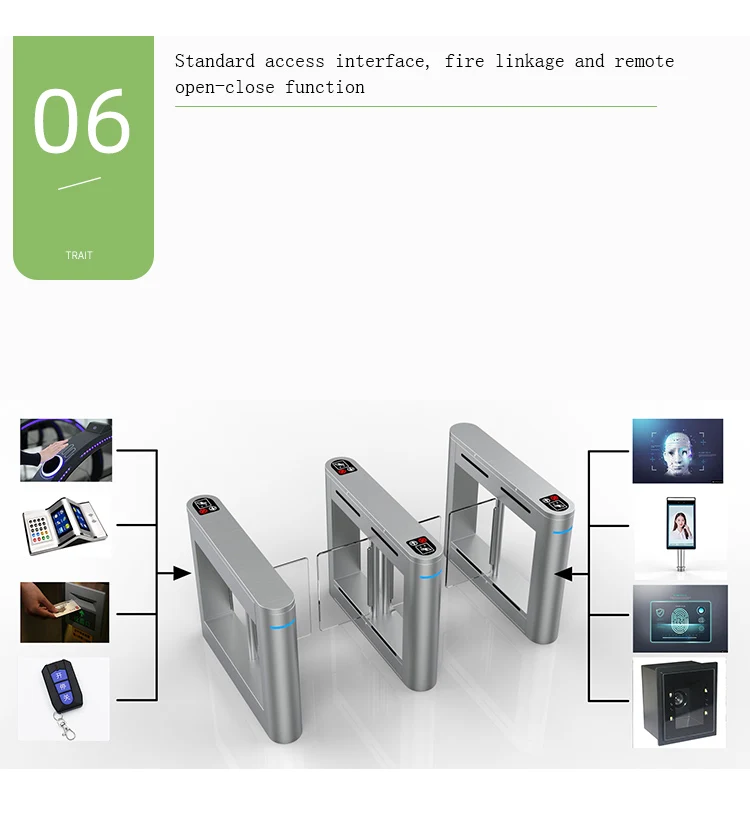

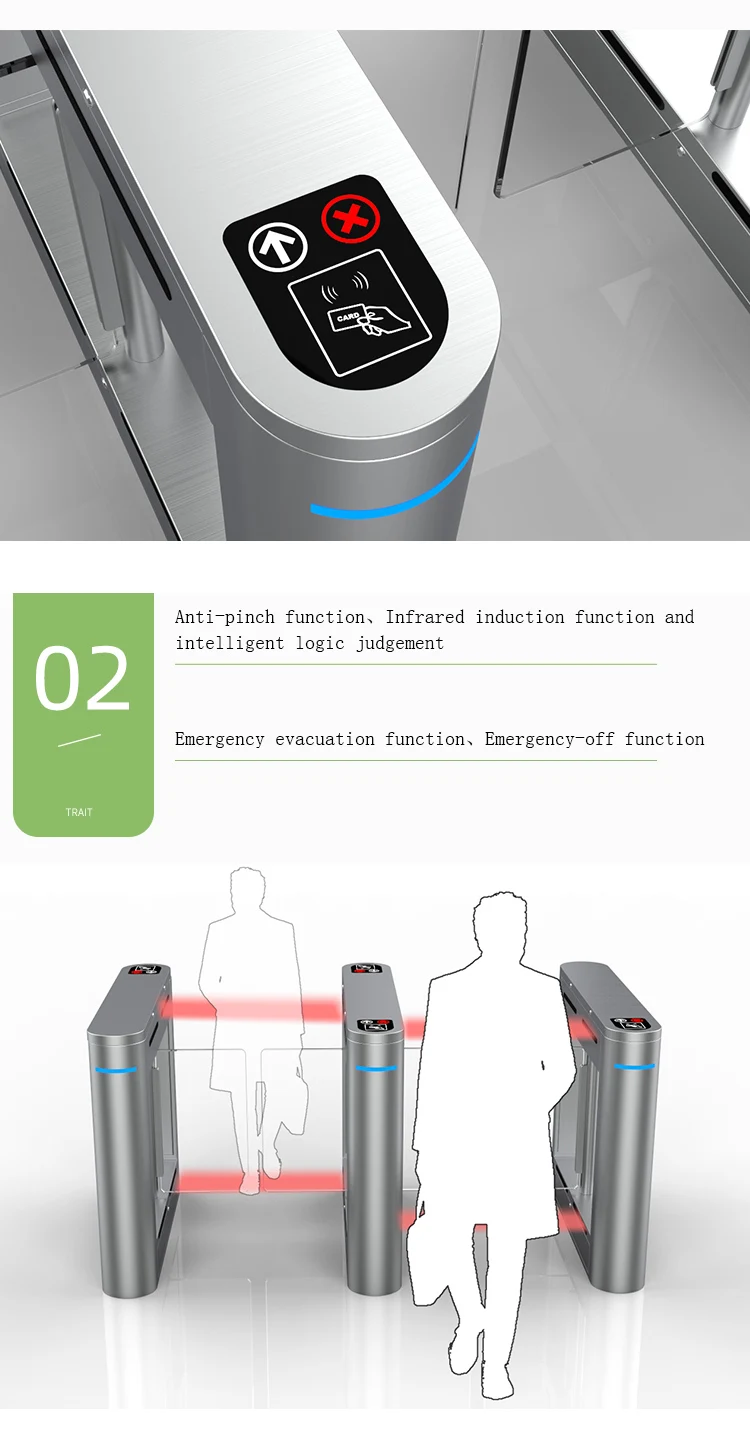

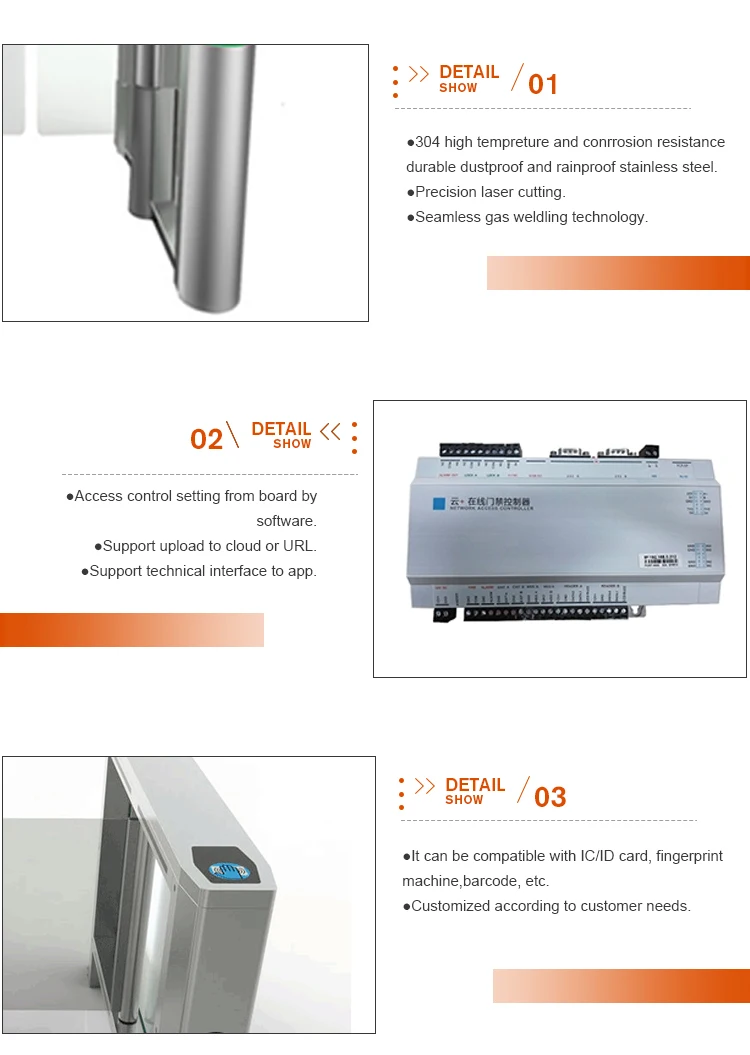

This equipment is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, bar code, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.

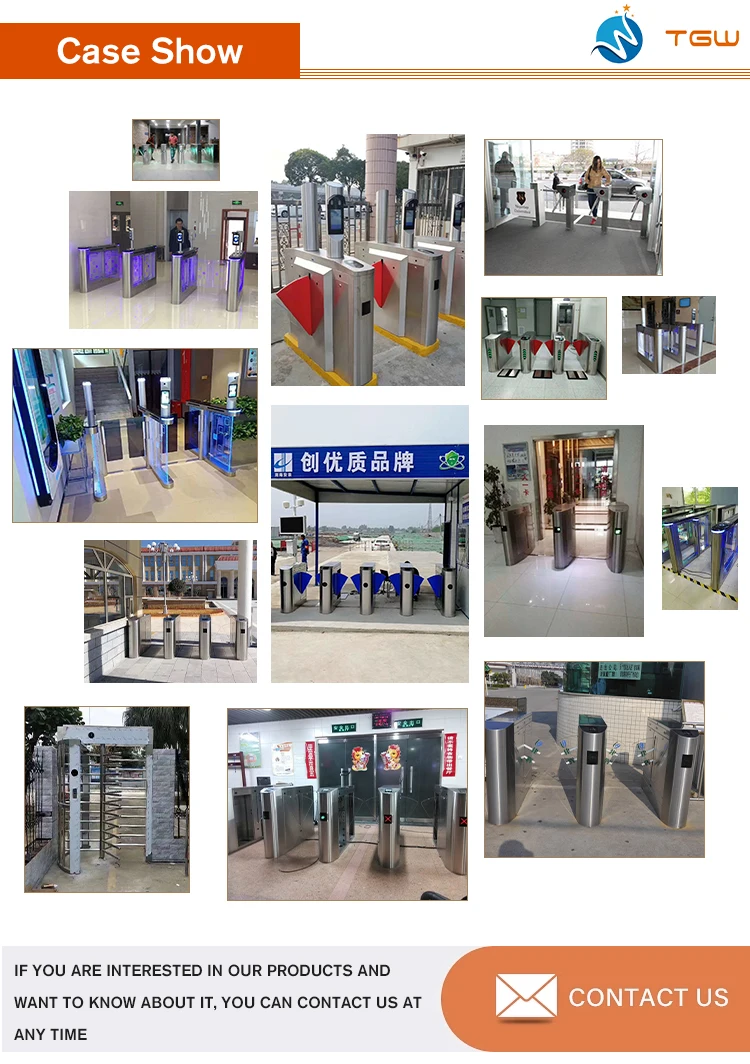

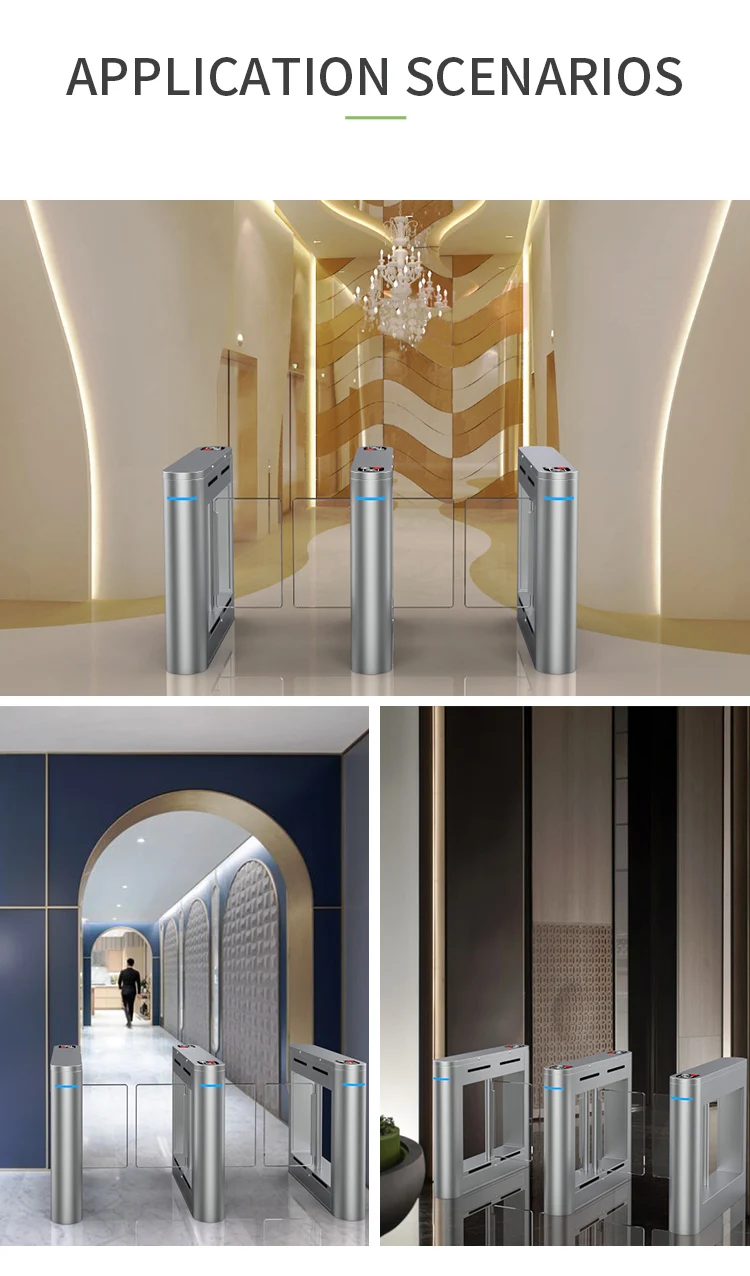

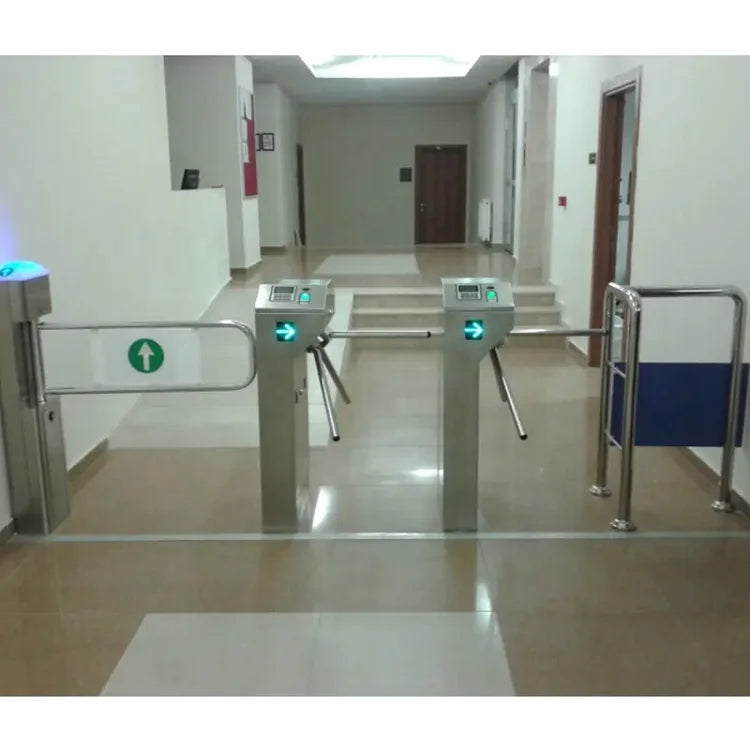

This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.
Main Features of Speed Lane Turnstile Gate
Work voltage: AC220V±10% 50HZ±10%
Core: DC24V solenoid valve
Rotation direction for arm: left or right, or bi-directional
Led direction indicator
Card reading window: standard or customized
Emergency : auto drop for arm
Normal work life: 3,000,000 times
Communication interface: RS 485, distance ≤1200m
Input interface: relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10mA
|

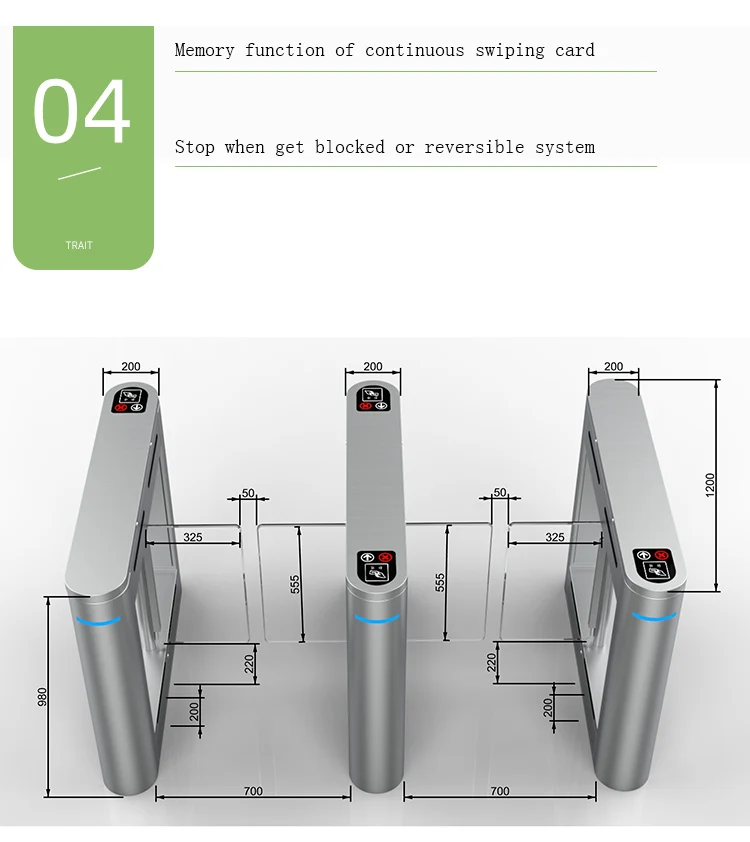

SPECIFICATIONS FOR WAIST SWING TURNSTILE TGW-SG005
|
||||||
|

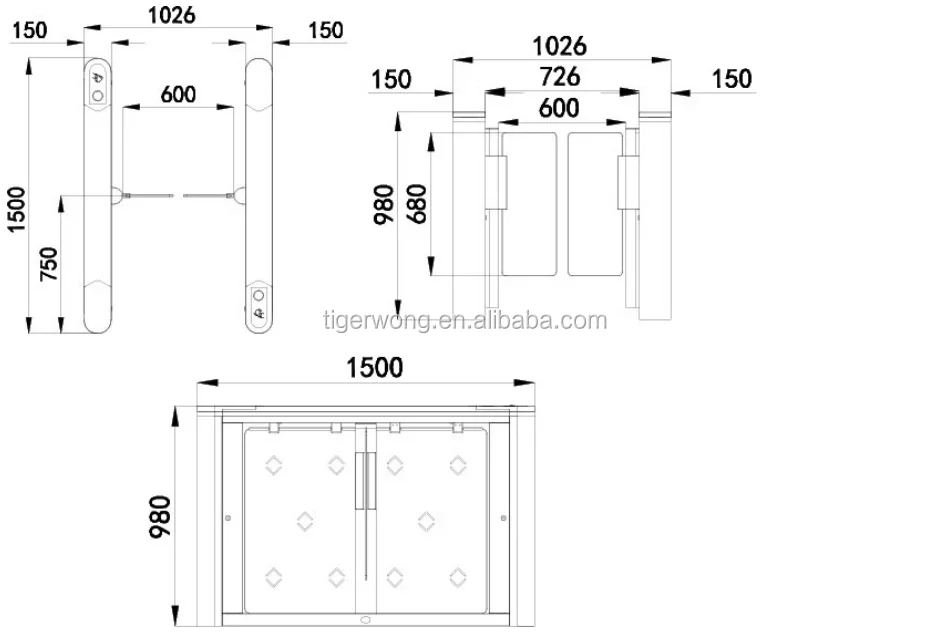

Cabnit Parts
|
Size
|
mm
|
1200*280*980
|
|||
|
Max lane width
|
mm
|
550
|
||||
|
Arm Length
|
mm
|
500
|
||||
|
Main performance parameters
|
Passing Speed
|
persons/min
|
30-40
|
|||
|
Barrier Open Time
|
s
|
<=0.3
|
||||
|
Working Enviroment
|
-10℃~70℃
|
RH≤90%
|
||||
|
Function
|
IC Card
|
ID Card
|
Fingerprinter
|
|||
|
Barcode
|
Face Recognition
|
QR Code
|
||||
|
Swallow machine
|
Coin machine
|
Number Counter
|
||||
