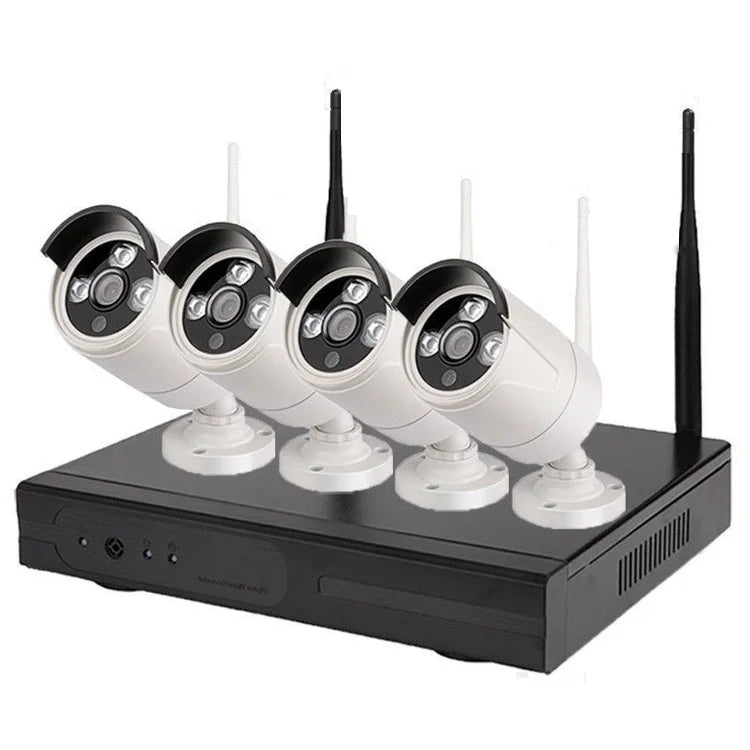

Wifi IP Camera Nvr wireless security kit 4ch cctv dvr kit mini camera wifi container home kits
Wifi IP Camera Nvr wireless security kit 4ch cctv dvr kit mini camera wifi container home kits
Couldn't load pickup availability
| K9504W/K9604W+PE3010C/PE3013C/PE3020C Wireless NVR KIT | ||
|
Key Features: 1. HD video output 2. Automatic connection with IP, save installation cost 3. Plug and play, P2P service 4. Mobile viewing, iphone&android app 5. Free DDNS :www.e-seenet.com,no need DDNS setting |
||
| Item specifics | 4 pcs 720P/960P/1080P camera 1pcs 4ch NVR 1pcs network cable 1pcs12V 3A+4pcs 12V 2A power supply English User Manual CD(CMS,mobile app,manual), Mouse |
|
| Wireless NVR Specification | ||
| Model | K9504W/K9604W | |
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| AUdio Bitrate | 64Kbps | |
| AV (audio/video) output | HDMI input |
1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
| VGA output |
1ch,resolution:1024x768,1366x768, 1440x900,1920x1080p |
|
| AV CODEC Specification | Video Resolution | |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Alarm | Alarm Input | 4ch |
| Alarm Output | 1ch | |

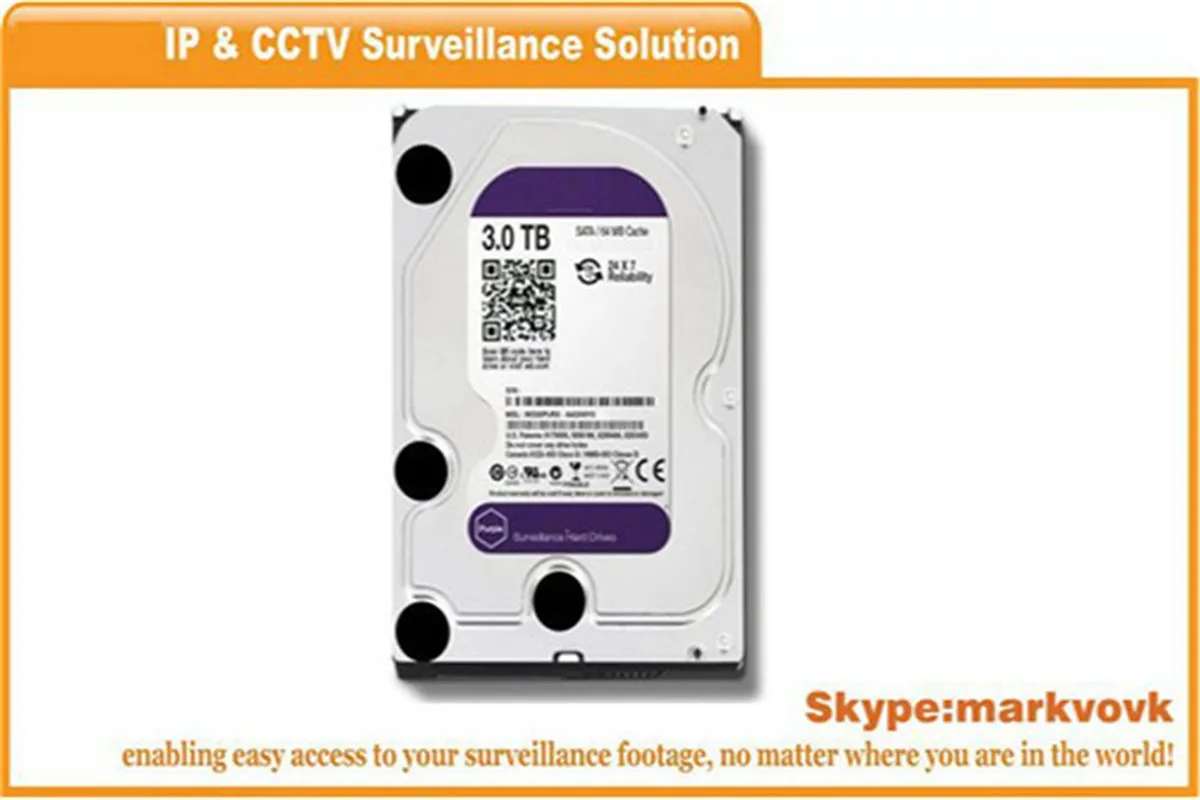

| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 4 Network Ports for K9504W, 1 Network Port for K9604W |
| USB Interface | 2 USB for K9504W, 1 USB for k9604W | |
| Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc… |
|
| Network Control | ||
| Others | Power Supply | DC12V 3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |

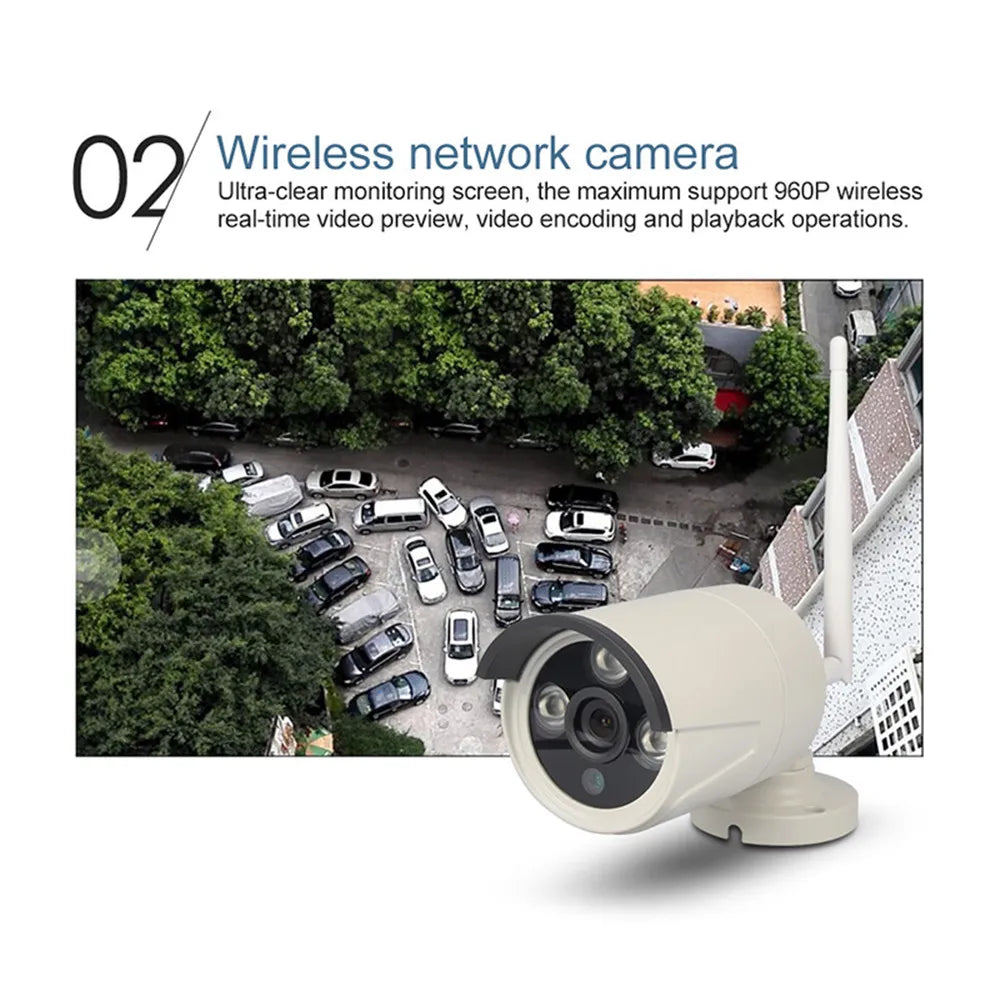

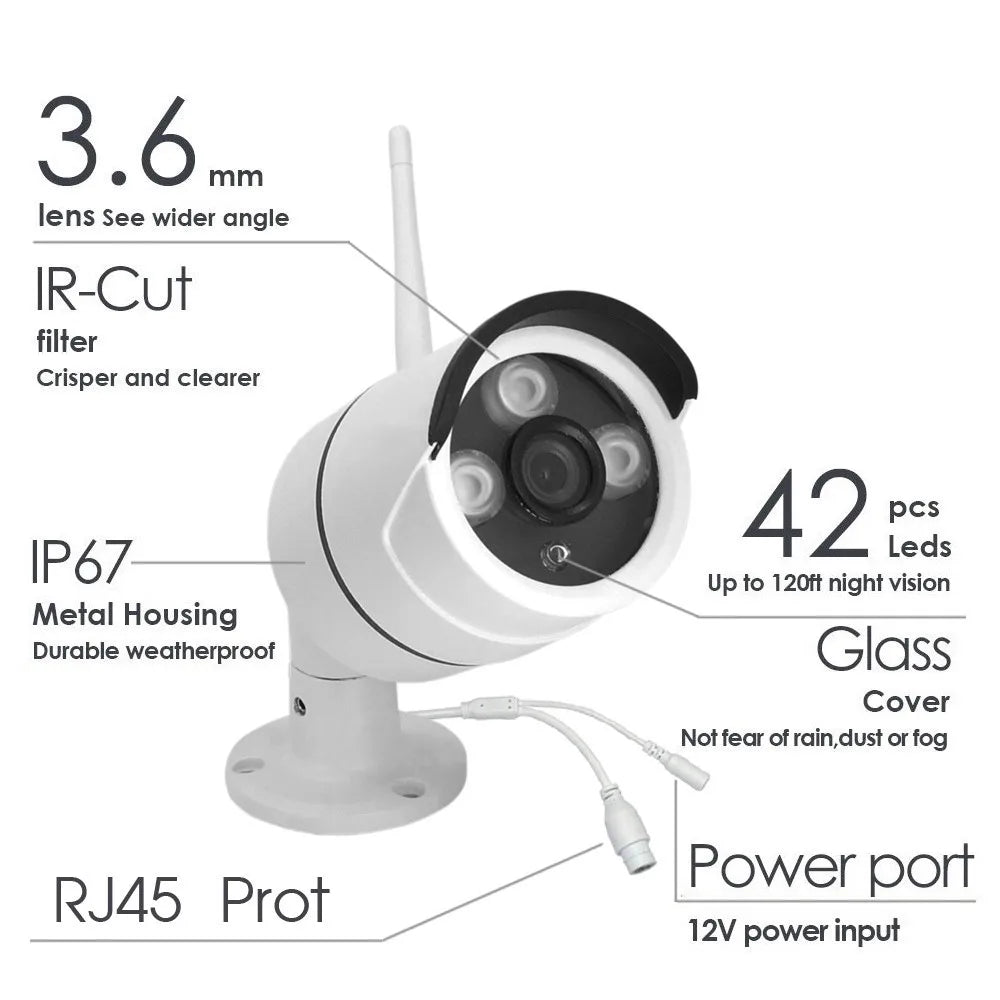

| IPC Specification | ||
| Technical Parameters | Model | PE3010C/PE3013C/PE3020C |
| Sensor | 1/4” Progressive Scan Sensor | |
| Signal System | PAL/NTSC | |
| Resolution | 1.0MP 1.3MP 2.0MP | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 3.6MM | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification | Three Streaming at the Same Time: H.264 128x720@30fps or below H.264 640x480@30fps or below |
|
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V-1A | |
| Power consumption | ≤6W | |
| Size | 205(L)×70(W)×55 (H)mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
Wifi IP Camera Nvr Kit wireless security kit 4ch cctv dvr kit mini kit camera wifi container home kits
FAQ
Q1: How to reset Ip camera?
==>
A2:Long press for 15 seconds to restore back to factory settings
Q3. How to storage video:
==>
A3: 1) storage mode: local storage/client storage/NVS/NVR storage
2) Card: support MAX 128G TF card
Q4. How to connect IP Camera with device?
==>A4: Our App IP pro3 downloaded on Android, IOS, Windows
Q5: is it possible to make a customization for mass order?
==>
A5: Yes, we also do OEM/ODM
* Printing silk-screen company logo on products==> The MOQ is 100pcs
* Changing App logo and Icon==> The MOQ is 500pcs
* Personalized gift box customized==> The MOQ is 500pcs
Q6. Why choose NVR KIT of inlifecam:
==>
A6: 1. Strange R&D support: More than 5 R&D engineers.
2. Strong production capability: Over 150 employees with 60000pcs per month.
3. Certificates: CE, RoHs, FCC, BSCI, EMI;
4. Professional after-sales service online within 24 hours;
5. ODM & OEM accepted. Welcome your trail order with NO MOQ.
6. High quality goods, competitive price, the best service, fast delivery...........
• OEM Service: We could offer OEM and ODM services for our clients.
• Delivery Time: Sample order 1-2 working days, bulk order 7-10
working days.
• Delivery Term: By Express(DHL/FEDEX/TNT/UPS),By air,By Sea.
• Quality Warranty: One year warranty.
• We provide 4BS service: best quality, best price, best delivery, best service.
•Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
